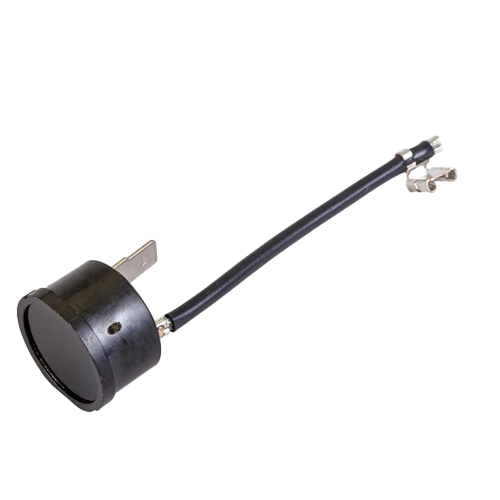

Whirlpool d6961612 Overload Protector

Product Description

The WHIRLPOOL d6961612 is a compressor overload protector designed to safeguard refrigeration or HVAC compressor motors from damage caused by excessive current draw or elevated operating temperatures. When current or heat exceeds the rated threshold, the overload opens the circuit to prevent motor winding failure. This is an OEM-specification replacement component typically installed by licensed HVAC technicians or appliance service professionals during compressor service or system troubleshooting.

Overload protectors of this type are found in residential refrigeration systems, light commercial refrigeration units, and HVAC applications where a hermetic or semi-hermetic compressor motor requires thermal and current protection. The d6961612 is matched to Whirlpool OEM specifications and is suited for service and maintenance replacement scenarios where the original overload has failed or tested out of spec.

Key Features

• Protects compressor motor windings from overcurrent and overtemperature conditions
• OEM-specification replacement for Whirlpool applications
• Opens circuit automatically under fault conditions to prevent motor burnout
• Direct-replacement design supports straightforward serviceability

Compatibility

Designed as an OEM-style replacement overload protector for Whirlpool refrigeration or HVAC compressor applications. Confirm fitment against the original equipment part number before installation.

Installation Notes

Installation should be performed by a qualified HVAC technician or appliance service professional. Disconnect and lock out all power to the system before accessing the compressor terminal cover or overload components. Verify the replacement overload matches the original in both form and electrical rating prior to installation. Improper installation or use of a mismatched overload can result in inadequate motor protection or repeat component failure.

Technical Specifications

• Component Type: Compressor Overload Protector

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: d6961612
