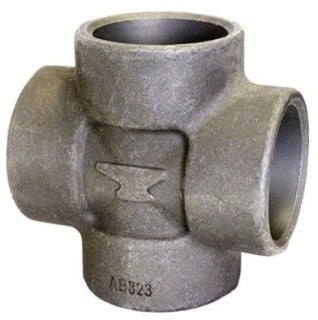

Whirlpool 69029109175 Forged Steel Cross Fitting 2 in Class 3000

Product Description

The WHIRLPOOL 69029109175 is a 2-inch Class 3000 forged steel socket weld cross fitting designed for high-pressure piping systems. Built to ASTM A105 carbon steel specifications, this cross fitting provides a four-way pipe intersection in a single forged body, eliminating the need for multiple tee fittings in branching configurations. It is suited for steam, water, oil, and gas service where pressure integrity and material strength are critical. Licensed pipefitters and plumbers install this type of fitting in industrial and commercial mechanical systems where socket weld connections are required by design or code.

This cross fitting is intended for use in high-pressure piping assemblies operating within Class 3000 pressure ratings. The socket weld end preparation allows the fitting to slip over pipe ends before fillet welding, making it a common choice in process piping, boiler rooms, and industrial plant applications. The ASTM A105 material designation confirms carbon steel chemistry and mechanical properties suitable for elevated-temperature and elevated-pressure service conditions.

Key Features

• Forged ASTM A105 carbon steel construction for high-pressure and high-temperature service
• Class 3000 pressure rating suitable for demanding industrial piping systems
• 2-inch socket weld end connections for secure fillet-welded joints
• Four-way cross configuration enables branching without multiple fittings
• Single-body forged design minimizes potential leak points at pipe intersections

Compatibility

Designed as an OEM-style replacement or direct-use forged steel socket weld cross fitting for Class 3000 high-pressure piping systems using 2-inch nominal pipe size.

Installation Notes

Installation must be performed by a qualified pipefitter or licensed plumber in accordance with applicable codes such as ASME B31.1 or B31.3 for pressure piping. The system must be fully depressurized and isolated before fitting installation. Socket weld fittings require proper gap clearance before fillet welding per applicable welding procedure specifications. Post-weld inspection and system pressure testing should be completed before returning the line to service.
