Product Description

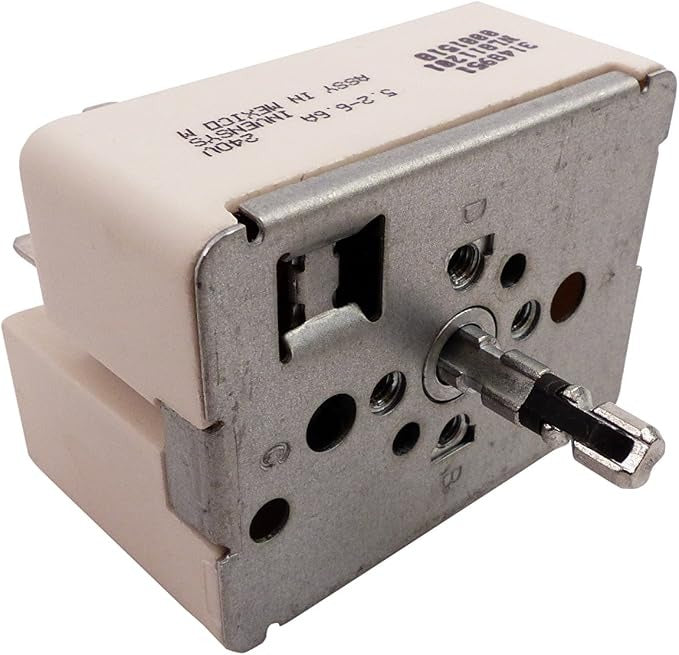

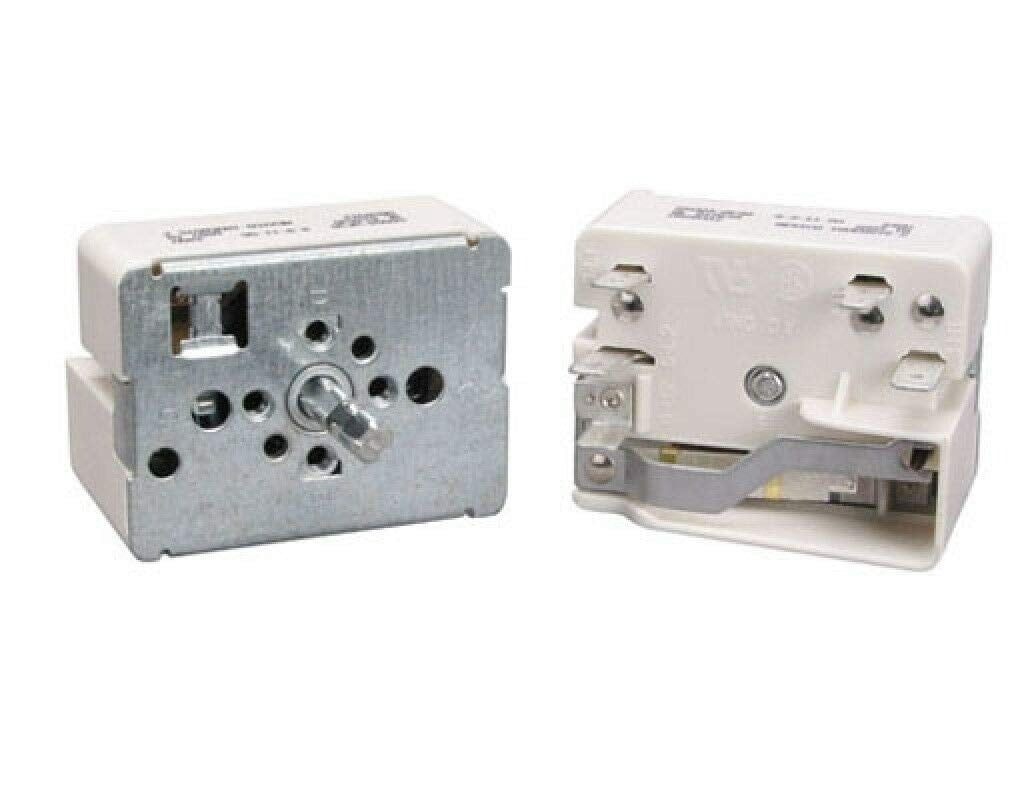

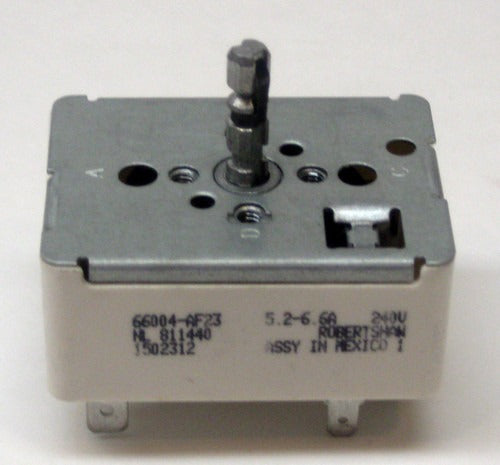

The Whirlpool 3149404 is an infinite surface element switch for electric ranges that regulates heat to a 6-inch burner and is rated 240V at 5.2â6.6A. The unit is a five-terminal control that sends voltage to the surface element coil and is supplied as a single replacement switch. Physical details include a figure-8 shaft and compact housing sized for direct replacement of legacy OEM numbers.
Electrical rating: 240V, 5.2â6.6A; five-terminal infinite switch
Designed for 6-inch surface elements; sends voltage to element coil
Figure-8 shaft (7/8" long), five terminals labeled L1, L2, H2, H1, P; dimensions 2-1/4" L x 1-3/4" W x 2-5/16" H
Product Highlights
Direct replacement infinite switch for 6-inch range burner; OEM part 3149404 / WP3149404 with five-terminal connections.
Product Information
Standard Information
Brand : WHIRLPOOL
Manufacturer Part Number : 3149404
Country of Origin : United States
Technical Specifications
Manufacturer Part Number
3149404
Alternate / Replacement Part Numbers
WP3149404, WP3149404VP, AP6007668, PS11740785, 66004-AF23, NL 811441, 310179, 311847, 311856, 311857, 314144, 3148951, W10295576, ES9404, 1225515, 2711, EAP11740785, PD00003176, PS11740785
Part Type
Infinite switch (surface element control switch)
Intended Burner Size
6-inch
Electrical Rating
240V, 5.2â6.6 A
Terminals
5 terminals labeled L1, L2, H2, H1, P
Terminal Connections
1/4" male spade on L1, L2, H2, H1; 3/16" male spade on P
Shaft
Figure-8 shaft, 7/8" long
Mounting
Four mounting holes on shaft end
Includes
One 5-terminal infinite switch
Material
Plastic and metal
Dimensions
2-1/4" L x 1-3/4" W x 2-5/16" H
Compatible Brands
Amana, Caloric, Estate, Inglis, Kenmore, KitchenAid, Maytag, Roper, Whirlpool
Compatible Models
RF265LXTQ0, RF265LXTQ1, RF265LXTQ2, RF265LXTT0, RF362LXTS0, RF362LXTS1, RF362LXTS2, RF362LXTS3
