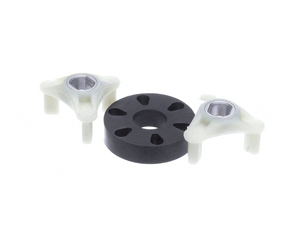

Whirlpool 285753 Washer Direct Drive Motor Coupling

Product Description

The WHIRLPOOL 285753 is a direct drive motor coupling designed to connect the motor shaft to the transmission in top-load washing machines. This component transfers rotational power from the motor to the transmission, enabling the wash and spin cycles to operate correctly. When the original coupling wears, cracks, or fails entirely, the washer typically fills with water but does not agitate or spin. Replacing the coupling restores proper power transfer between the motor and transmission and reduces mechanical stress on both components. This is a standard OEM-style replacement part installed by appliance repair technicians and experienced DIYers.

This coupling is used in residential top-load washers equipped with a direct drive motor system. In this design, the coupling serves as a mechanical fuse of sorts, absorbing shock loads between the motor and transmission to prevent damage to more costly internal components. It is a common wear item in direct drive washer platforms and is a frequent first step in diagnosing no-agitate and no-spin conditions.

Key Features

• Connects motor shaft to transmission in direct drive top-load washer systems
• Restores agitation and spin function when original coupling is worn or broken
• Acts as a mechanical buffer to protect motor and transmission from shock loads
• OEM-style replacement design for reliable fitment and durability
• Commonly replaced component in direct drive washer no-spin and no-agitate diagnostics

Compatibility

Designed as an OEM-style replacement coupling for residential top-load washing machines using a direct drive motor system.

Installation Notes

Installation is typically performed by a qualified appliance repair technician. Always disconnect the washer from its power supply before beginning disassembly. The cabinet or pump access panel must be removed to reach the motor and transmission assembly. Inspect the motor and transmission shaft interfaces for wear before installing the new coupling to confirm the coupling failure was not caused by an underlying mechanical issue.

Technical Specifications

• Application: Direct drive top-load washing machine motor-to-transmission coupling

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: 285753
