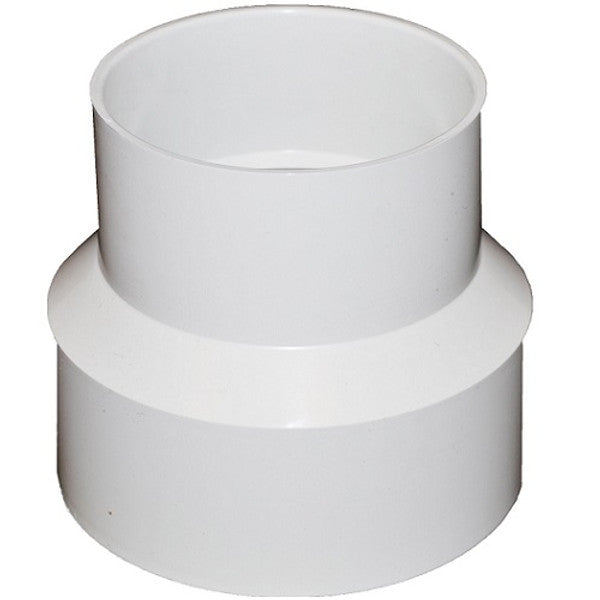

Westlake Pipe Fittings P1219 Pvc Reducer Bushing 8x4 in SDR-35

Product Description

The WESTLAKE PIPE FITTINGS P1219 is a solvent weld PVC reducer bushing designed to transition from an 8-inch pipe to a 4-inch pipe within SDR-35 drain, waste, and vent or sewer piping systems. Manufactured to SDR-35 dimensional standards, this bushing provides a reliable, solvent-cemented connection that maintains flow integrity across the reduction. It is a standard component in gravity-flow sewer and stormwater drainage applications and is typically installed by licensed plumbers or drainage contractors working on residential and commercial below-grade piping.

This reducer bushing is suited for underground sewer laterals, stormwater conveyance lines, and gravity drain systems where an 8-inch main must be reduced to a 4-inch branch or service line. The solvent weld joint method ensures a watertight, permanent connection when used with the appropriate PVC primer and solvent cement. It is appropriate for use in both new construction and repair or replacement work on SDR-35 PVC piping systems.

Key Features

• Transitions 8-inch pipe down to 4-inch pipe in a single fitting
• SDR-35 wall thickness standard for gravity sewer and drainage service
• Solvent weld connection for a permanent, watertight joint
• PVC construction offers corrosion resistance and long service life in below-grade environments
• Weighs 2.4 pounds for manageable handling during installation

Compatibility

Designed as an OEM-style replacement and new-installation fitting for SDR-35 PVC gravity sewer and drainage piping systems using 8-inch to 4-inch reducer bushing configurations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code or applicable local codes governing below-grade sewer piping. Before cutting into an existing line, confirm the system is depressurized and drained. Apply a listed PVC primer followed by solvent cement rated for SDR-35 fittings, and allow the joint to cure fully before backfilling or returning the system to service. Do not use this fitting in pressure-rated applications.

Technical Specifications

• Inlet Size: 8 inches
• Outlet Size: 4 inches
• Connection Type: Solvent Weld
• Pipe Standard: SDR-35
• Material: PVC
• Weight: 2.4 pounds
• UPC: 622454408975

Standard Information

• Brand: WESTLAKE PIPE FITTINGS
• Manufacturer Part Number: P1219
