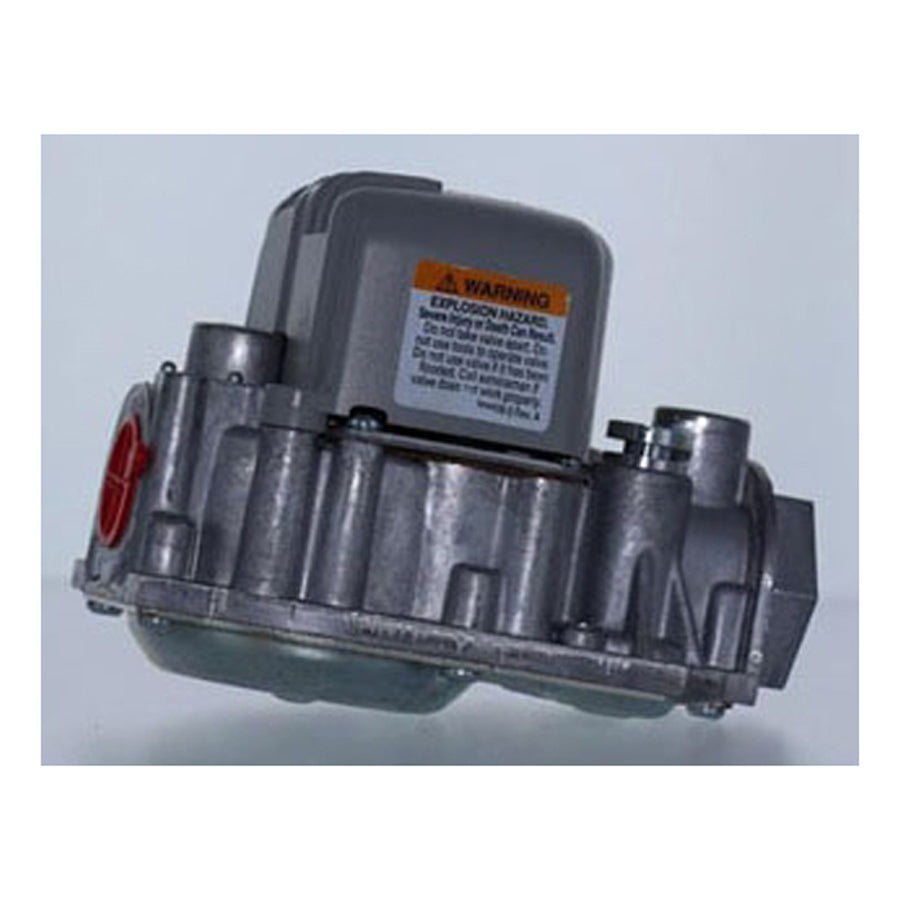

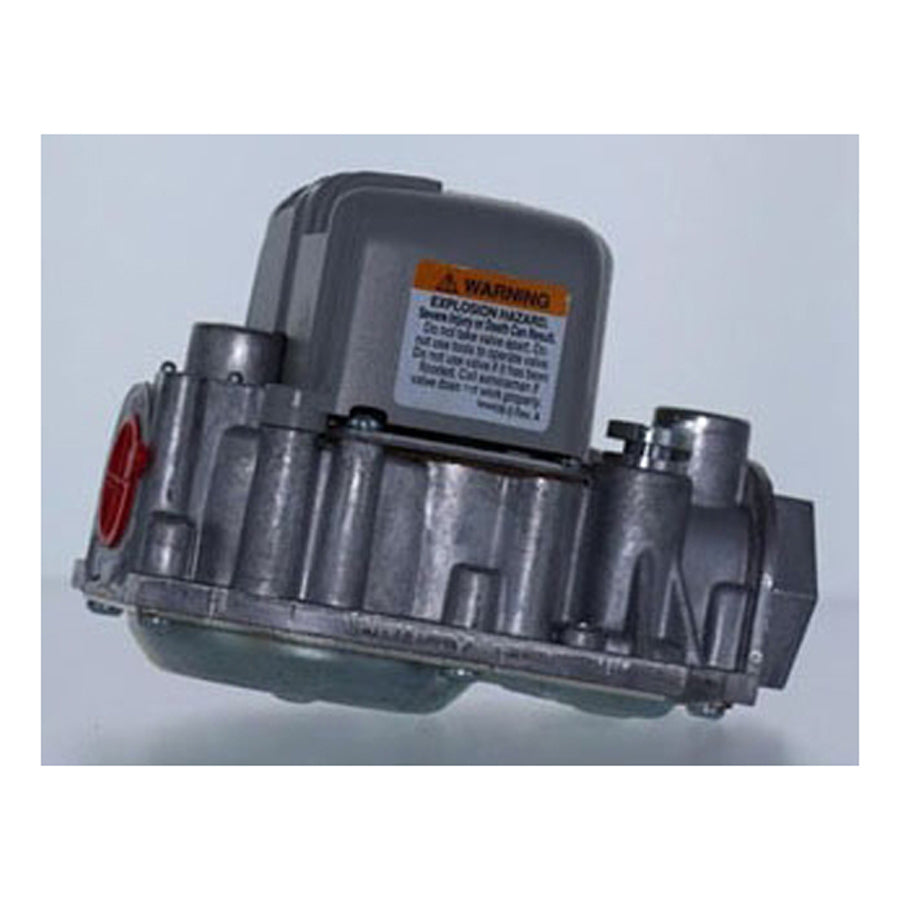

Westinghouse 624775 Combustion Gas Valve 24V Natural Gas

Product Description

The WESTINGHOUSE 624775 is a combustion gas valve designed for use in electric furnace applications. It controls the flow of natural gas to the burner assembly, opening and closing in response to low-voltage signals from the furnace control board. The valve operates on 24 volts and is sized at 1 inch, with a rated inlet pressure of 3.5 inches water column. Licensed HVAC technicians and gas service professionals are the typical installers for this type of component.

This valve is intended for residential electric furnace systems that use natural gas as the combustion fuel source. It fits into the gas train upstream of the burner and works in conjunction with the ignition and control systems to regulate fuel delivery during heating cycles. Refer to the equipment nameplate and service manual to confirm valve specifications before installation.

Key Features

• 24-volt operator voltage compatible with standard furnace low-voltage control circuits
• 1-inch valve body sizing for direct inline gas line connection
• Rated for natural gas service at 3.5 inches water column inlet pressure
• Combustion gas valve designed for electric furnace applications

Compatibility

Designed as an OEM-style replacement combustion gas valve for electric furnaces requiring a 1-inch, 24-volt natural gas valve rated at 3.5 inches water column.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified gas service professional in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply and disconnect electrical power to the furnace before beginning any valve replacement work. Verify inlet and outlet piping connections are leak-tested after installation using an approved gas leak detection solution. Do not exceed the rated inlet pressure specified for this valve.

Technical Specifications

• Valve Type: Combustion Gas Valve
• Voltage: 24 volts
• Valve Size: 1 inch
• Inlet Pressure Rating: 3.5 inches water column
• Gas Type: Natural Gas
• Application: Electric Furnace

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 624775
