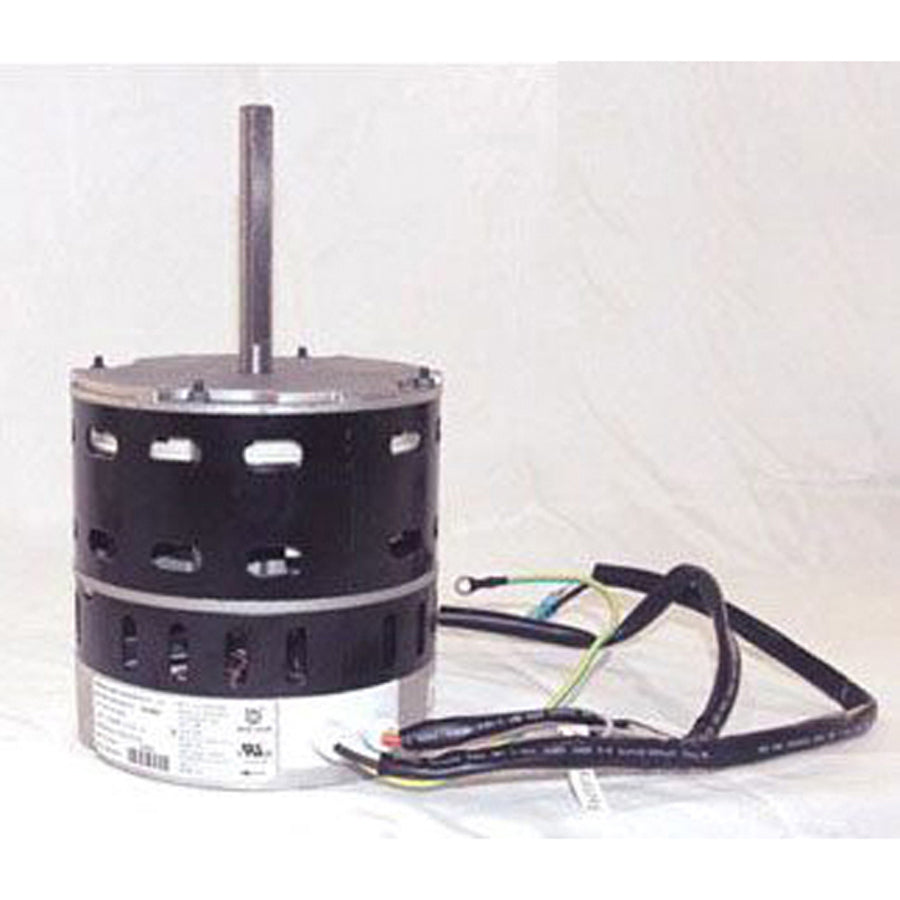

Westinghouse 622683 Ecm Furnace Blower Motor 1/2 Hp

Product Description

The WESTINGHOUSE 622683 is an electronically commutated motor (ECM) blower motor rated at 1/2 HP, designed for forced-air furnace applications. ECM technology delivers significantly higher efficiency than standard permanent split capacitor (PSC) motors by using variable-speed, electronically controlled operation to match airflow demand. The result is lower energy consumption without sacrificing air distribution performance. Licensed HVAC technicians install this motor as a direct upgrade or replacement in residential forced-air systems where improved efficiency and quieter operation are priorities.

This blower motor is suited for residential furnace installations where the air handler circulates conditioned air through the duct system. The ECM design allows for programmable speed profiles, enabling the motor to ramp airflow up or down based on system demand. This consistent, modulated airflow promotes more even temperature distribution across zones and supports better indoor air quality by keeping air moving through filtration media at lower, steadier velocities.

Key Features

• Electronically commutated motor (ECM) design for high efficiency and low energy draw compared to PSC motors
• Programmable operation supports variable airflow profiles to match system demand
• Rated at 1/2 HP for residential furnace blower applications
• Provides steady, modulated airflow for even temperature distribution through duct systems
• Drop-in upgrade path from standard PSC blower motors

Compatibility

Designed as an OEM-style ECM blower motor replacement for residential gas furnace air handler assemblies requiring a 1/2 HP motor. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the furnace at the disconnect and breaker before removing the existing motor or accessing the blower assembly. ECM motors include integrated control modules that must be properly seated and connected per the replacement unit wiring harness before restoring power. Verify motor rotation direction and blower wheel seating before returning the system to service.

Technical Specifications

• Motor Type: Electronically Commutated Motor (ECM)
• Horsepower: 1/2 HP
• Application: Furnace Blower

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 622683
