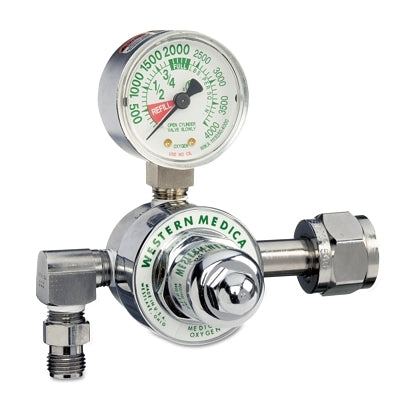

Western Enterprises M1-540-P Single-Stage Preset Regulator Oxygen 0 to 50 psi 3000 psi Inlet CGA 540 Nut and Nipple

Product Description

The Western Enterprises M1-540-P Single-Stage Preset Regulator is designed for oxygen applications. It operates within a range of 0 to 50 psi and has a maximum inlet pressure of 3000 psi, featuring a CGA 540 nut and nipple connection.

• Chrome-plated brass body
• Internal reseating relief valve
• Sintered filter for safety

Product Highlights

The Western Enterprises M1-540-P regulator is built with a chrome-plated brass body and an all-brass high-pressure chamber. It includes an internal reseating relief valve to protect against over-pressurization, and a sintered filter to enhance safety and prolong the regulator's life. This regulator is available with either a horizontal or 90-degree outlet option.

Product Information

Standard Information

• UNSPSC: 41112501
• UPC: 698944281070
• Manufacturer: Western Enterprises
• Country of Origin: US

Technical Specifications

• Diaphragm Material: Neoprene
• Flow Range: 0 to 50 psi
• Gas Type: Oxygen
• Gauge Size: 2 inches
• Inlet Connection: CGA 540 Nut and Nipple
• Inlet Pressure Max: 3000 psi
• Outlet Pressure Max: 50 psi
• Type: Preset with 90-degree Outlet
