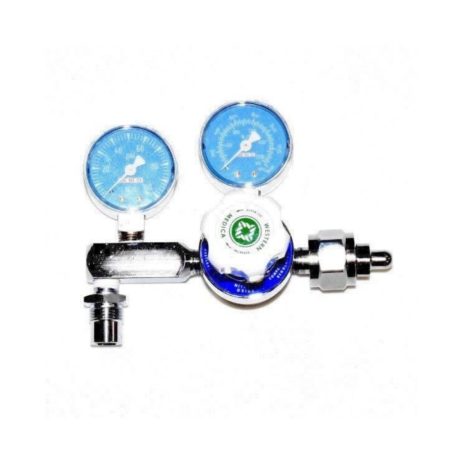

Western Enterprises M1-326-PG Single-Stage Adjustable Delivery Pressure Regulator

Product Description

The Western Enterprises M1-326-PG is a single-stage adjustable delivery pressure regulator made for nitrous oxide applications. This regulator features construction from chrome-plated brass with a brass high-pressure chamber, ensuring durability and reliability. It is designed with a neoprene diaphragm to enhance performance while an internal reseating relief valve helps to protect against over-pressurization.

• CGA-326 nut and nipple inlet connection
• DISS gas-specific outlet for precise gas delivery
• Adjustable delivery pressure from zero to one hundred psig

Product Highlights

This regulator is ideal for those needing a reliable method to control delivery pressure in nitrous oxide systems. Its adjustable range allows users to set the desired pressure accurately.

Product Information

Standard Information

• Brand: Western Enterprises
• MPN: M1-326-PG

Technical Specifications

• Gas Service: Nitrous Oxide
• Maximum Inlet Pressure: 3000 psi
• CGA Inlet Connection: CGA-326 Nut and Nipple
• Delivery Pressure Range: 0 to 100 psig
• Outlet Pressure [Max]: 100 psig
• Gauge Diameter: 2 in
• Flow Range: 0 to 100 psi
• Length [Nom]: 7.5 in
