WEST PENN WIRE West Penn Wire 998RD1000 Fire Alarm Cable 300 V (1000 ft)
WEST PENN WIRE West Penn Wire 998RD1000 Fire Alarm Cable 300 V (1000 ft)

West Penn Wire 998RD1000 Fire Alarm Cable 300 V (1000 ft)

Brand: WEST PENN WIRE
SKU: 998RD1000
Availability: Out Of Stock
$1,349.53
$1,349.53
LTL Delivery

This product weighs 57 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

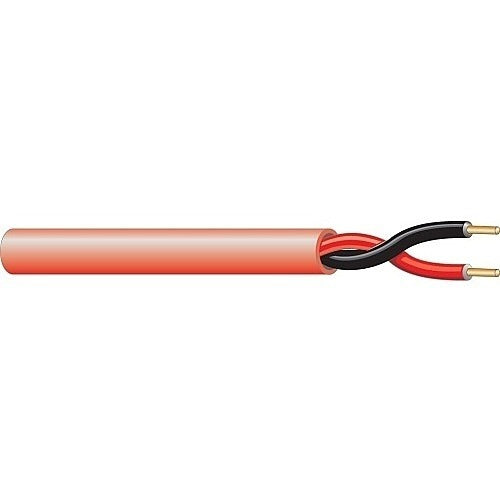

West Penn Wire 998RD1000 is a 12 AWG, 2-conductor (1 pair) solid bare copper fire alarm cable with PVC insulation and PVC jacket, riser-rated (FPLR) for fire alarm and signaling in riser applications and a 300 V voltage rating. The unshielded cable has a nominal outside diameter of 0.244 in, nominal DCR of 1.8 Ohm/1000 ft, and is supplied on a 1000 ft spool with a 75 C temperature designation.

  • 12 AWG solid bare copper conductors in a 1 pair (2-conductor) configuration; unshielded.
  • PVC insulation and PVC jacket; UL listed FPLR (riser) fire rating and 300 V voltage rating.
  • Nominal O.D. 0.244 in; nominal DCR 1.8 Ohm/1000 ft; supplied on a 1000 ft spool.

Product Highlights

12 AWG solid bare copper; FPLR riser-rated; 300 V; unshielded; 1000 ft spool; nominal O.D. 0.244 in.

Product Information

Standard Information

  • Brand: WEST PENN WIRE
  • Manufacturer Part Number: 998RD1000
Technical Specifications
Brand
West Penn Wire
Manufacturer Part Number
998RD1000
Product Name
Fire alarm cable, 12 AWG, 2-conductor, solid bare copper
Conductor Count
1 pair (2 conductor)
AWG Size
12 AWG
Conductor Type
Solid
Conductor Material
Bare copper
Insulation Material
PVC (polyvinyl chloride)
Jacket Material
PVC (polyvinyl chloride)
Fire Rating
Riser (FPLR)
UL Listing
UL listed (FPLR)
Voltage Rating
300 V
Operating Temperature
75 C
Length
1000 ft
Nominal Outside Diameter
0.244 in
Nominal DCR
1.8 Ohm/1000 ft
Insulation Thickness
0.01 in
Jacket Thickness
0.022 in
Nominal Capacitance Between Conductors
23 pF/ft
Shielding
None
Plenum
No
RoHS Compliant
Yes
Pull Tension
158 lbs
Bend Radius
2.195 in
Cable Weight
57 lbs
UL Flammability
UL 1666 (Vertical Shaft)
UNSPSC Code
26121613
