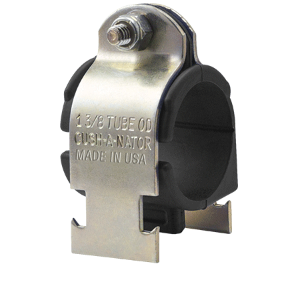

WESANCO CN22 Cush-A-Nator 1-3/8 inches O.D. Tube

Product Description

The WESANCO CN22 Cush-A-Nator is designed for vibration dampening and tube support. This standard steel cushion is made in the United States. It features a durable thermoplastic rubber for extended life and resistance to high heat. The Cush-A-Nator uses a unique thermoplastic vulcanized material that includes high-performance rubber and thermoplastic elastomers.

• Operating temperature range of -50°F to 275°F

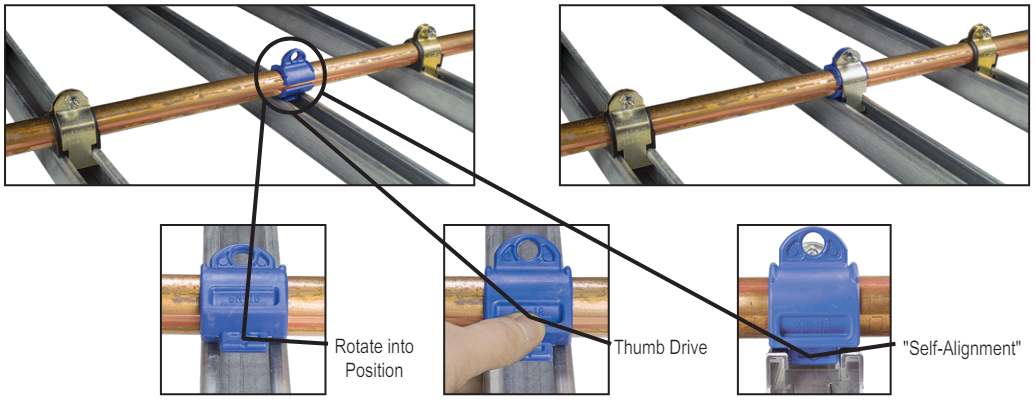

• Includes thumb drive for easy installation
• Self-alignment for precise fitting

Product Highlights

The WESANCO CN22 is suitable for various tube applications in high vibration environments. Its construction ensures reliable performance in both standard and harsh conditions.

Product Information

Standard Information

• Material: Standard TPE Cushion, Steel Clamp
• Tube Size: 1 3/8 in

Technical Specifications

• Temperature Range: -50°F to 275°F

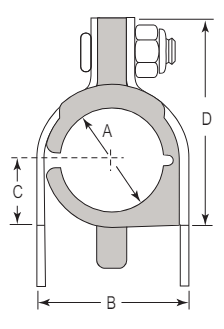

• Overall Height: 2 11/32 in
• Installed Height: 3 61/64 in
• Maximum Outside Diameter: 1 3/8 in
• Overall Length: 1 5/8 in
• Overall Width: 1 13/16 in
• Load Capacity: 800 lb
• Cushion Material: TPE
• Clamp Material: Steel, Zinc-Plated
• Resistance Properties: Heat Resistant, Vibration Damping
• Includes Mounting Hardware: Yes
• For Environment: High Vibration
