WERNER A510000 Reusable Concrete Anchor 3/4 Inch

Brand: WERNER
SKU: A510000
Availability: In Stock

Ships same day if ordered by 12 pm

$187.22
$187.22
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

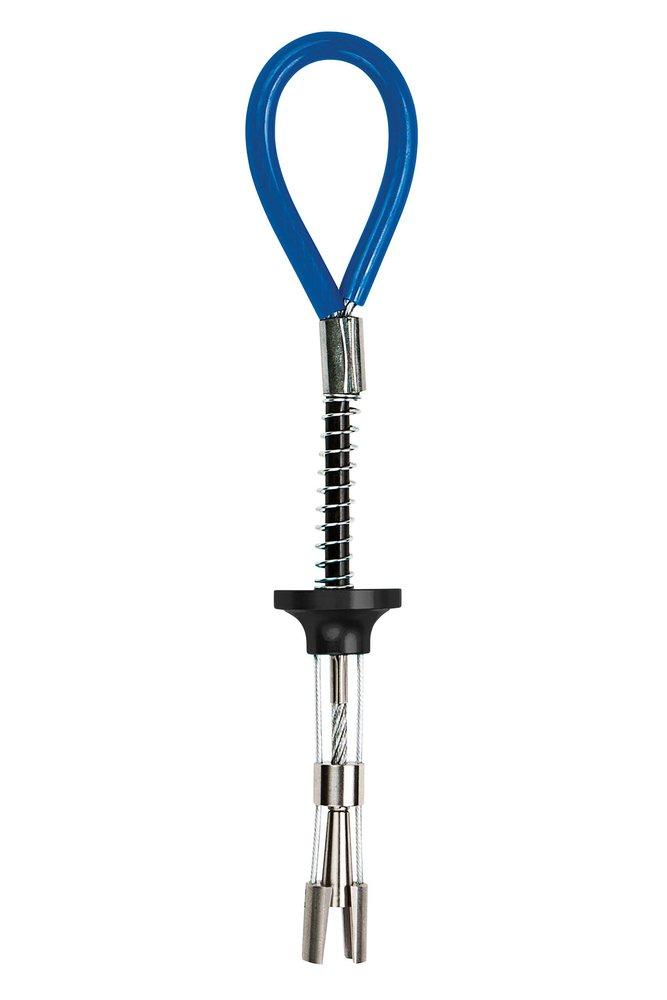

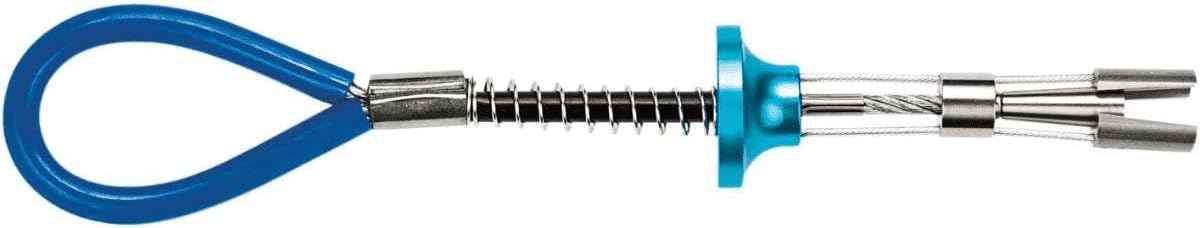

The WERNER A510000 Reusable Concrete Anchor is a lightweight, easy to use bolt providing convenient anchorage in concrete. The anchor requires a pre-drilled hole of 3/4 inch and 3-1/2 inch minimum depth in 3000 psi concrete. It can be used in any direction as a fall protection anchor and is reusable with its easy to insert and remove design.

Key Features

  • Lightweight design is easy to insert and remove
  • Drill hole of 3/4 inch with 3-1/2 inch minimum depth
  • Minimum 3000 psi concrete
  • Multi-directional use
Technical Specifications
Application
Concrete
Hole Depth
3-1/2 in
Hole Diameter
3/4 in
Installation Type
Reusable
Length
11-1/2 in
Material
Steel
Tensile Strength
5000 lb
Usage
Concrete Anchor
Thread Coverage
Fully Threaded
Included Components
Concrete Anchor
Diameter
3/4
Weight (Lbs)
1.0
Anchor Ring Finish
Teflon Coated
Anchor Ring Swivel
Not Featured
Anchor Ring Material
Stainless Steel
Weight Capacity (Lbs)
310.0
Anchor Ring Inner Width
2.25
Minimum Tensile Strength
5000
Osha 1926 Standard Compliant
Yes
Ansi A10.32 Standard Compliant
Yes
Ansi Z359.1 - 2007 Standard Compliant
Yes
Item
Concrete Anchor
Type
Concrete Anchors
Width
6 in
Weight
1 lbs
Hole Size Required
3/4 in
Hole Depth Required
3 in
Concrete Strength Required
3000 psi
Connection Type
Ring
Depth [Nom]
3-1/2 in
Dia. [Nom]
3/4 in
Load Cap. [Max]
5000 lb
Style
Connecting Hardware
Standard & Approvals
ANSI Z359.1-2007, OSHA 1926.502, 1910.66, CE 0321, EN 795:1996 (+A1:2000) Class B
Category
Anchors
Brand
WERNER
Manufacturer Part Number
A510000
Country of Origin
US
