Werma 69831075 k37cl sr cable em 24VAC/DC light tower

Product Description

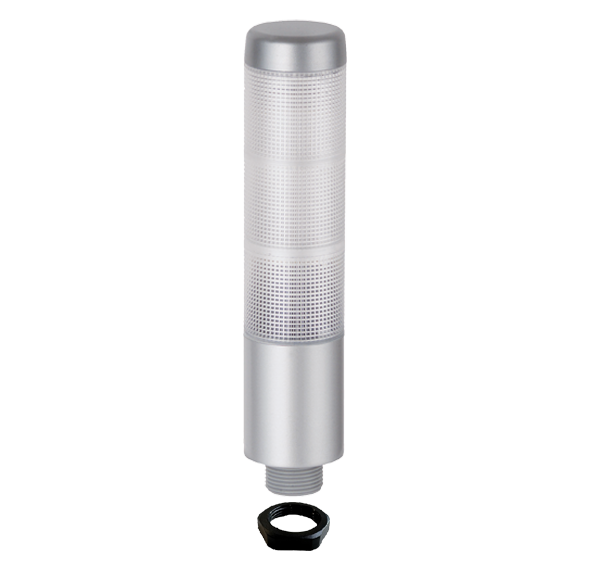

The WERMA 69831075 is a ready-configured signal tower with 3 optical levels (green/yellow/red) and LED continuous light. This kompakt 37 series tower light can be installed quickly and easily. The compact and completely enclosed tower light construction is ideal for use in all types of public areas because it is tamper proof.

• Ready-configured signal tower with 3 optical levels (green/yellow/red)
• LED continuous light
• With cable connection

Product Highlights

Pre-assembled with 3 tiers, this light tower is ideal for fault signaling, visualization of machine conditions, and automated systems.

Product Information

Standard Information

• Brand: WERMA
• Manufacturer Part Number: 69831075
• Country of Origin: China

Technical Specifications

• Type of fixing: Built-in mounting
• Protection category: IP65
• Optical signal image: Permanent
• Diameter: 38 mm
• Cable length: 2000 mm
• Height: 175 mm
• Materials: PC
• Dome colour: Clear
• Housing colour: Silver
• Connection: Cable
• Tension relief: Pull-out protection
• Cross-sectional area maximum: 0,34mm2 / 22AWG
• Cable entry: Membrane grommet
• Cable entry minimum: d = 1 mm
• Cable entry maximum: d = 9 mm
• Operating Temperature Min: -20 C
• Operating Temperature Max: 50 C
• Operating voltage: 24V
• Operating voltage type: AC/DC
• Operating voltage frequency: 50Hz
• Operating voltage tolerance: +/- 10%
• Rated operational voltage: 24 VDC
• Rated operational current: 100
• Rated inrush current: 500 mA
• Protection class: Protection class 2
• Pollution degree: 3; In the connection area: 2
• Light source: LED
• Light colour: Green; Red; Yellow
• Service life optical: 50,000 h maximum
• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• Conforms with FCC: No
• UL Type Rating: Type 12
• Conforms with ISED: No
• EAC certificate available: No
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with RoHS CN: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with VdS: No
• No. of Stacks / Tiers: 3
• Module Lens Colour: Green, Red, Yellow
• Supply Voltage VAC: 24V
• Supply Voltage VDC: 24V
• Visual Signal Type: Steady
• Lens Diameter: 37.5mm
• IP / NEMA Rating: IP65
• Connection Type: Cable
• Brand: WERMA
• Current Consumption: 100 mA Amp
• Housing Material: Polycarbonate
• Life Hours: max. 50.000 h
• Manufacturer Part Number: 69831075
• Mounting Style: Installation Mounting
• Number of Levels: 3
• Series: Kompakt 37 Series
• Signal Output: LED permanent
• Supply Voltage: 24 VAC/VDC
• Temperature Range: -20 to 50 C
• UPC Code: 4049787028872
• Light Tier Color: Green
• Overall Height: 175 mm
• Operating Current: 0.100 A
• Light Operating Mode: Steady
• For Location: Indoor; Outdoor
• NEMA Rating: NEMA 12; NEMA 4X
• Lens Material: Polycarbonate
• Lens Shape: Dome
• Lens Design: Simple
• Lifespan: 50,000 hr
• Lead Length: 2,000 mm
• Electrical Connection: 2,000 mm Cable
• UNSPSC: 39112001
• MPN: 698 310 75
