Welders Choice 59803858 Stick Welding Electrode E6010

Product Description

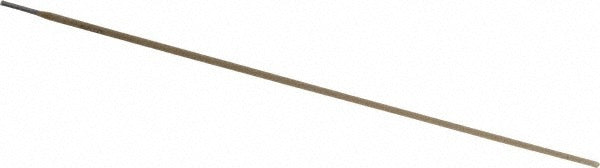

The WELDERS CHOICE 59803858 is an E6010 stick welding electrode designed for direct current electrode positive (DCEP) welding applications. The electrode measures 3/32 inches in diameter and 14 inches in length and is manufactured from a steel alloy core. It operates at amperages ranging from 75 to 125 amps, making it suited to a range of material thicknesses. E6010 electrodes are a standard choice for deep-penetration work in structural, pipe, and out-of-position welding. This electrode is well matched to professional welders, ironworkers, pipefitters, and maintenance technicians working across fabrication and field environments.

This E6010 electrode is used in construction, shipbuilding, general purpose fabrication, and maintenance welding applications. It is capable of out-of-position welds including vertical and overhead plate welding, making it a practical option for field work and structural repairs. Pipe welders rely on E6010 electrodes for root passes due to their forceful arc and fast-freeze slag characteristics. This electrode is sold individually.

Key Features

• E6010 classification with deep-penetration arc performance
• DCEP polarity for consistent arc stability and penetration
• 75 to 125 amp operating range suitable for varied material thicknesses
• Round rod geometry, 3/32 inches diameter by 14 inches long
• Steel alloy core construction
• Rated for out-of-position welding including vertical and overhead positions

Compatibility

Designed for use with DCEP-capable stick welding machines in construction, shipbuilding, pipe welding, and general fabrication applications.

Installation Notes

Installation and use of stick welding electrodes should be performed by qualified welders or trained trade professionals. Always verify the power source is set to DCEP polarity before striking an arc with E6010 electrodes. Follow applicable AWS and workplace safety standards for ventilation, personal protective equipment, and fire watch procedures. Store unused electrodes in a dry environment to prevent moisture absorption in the flux coating.
