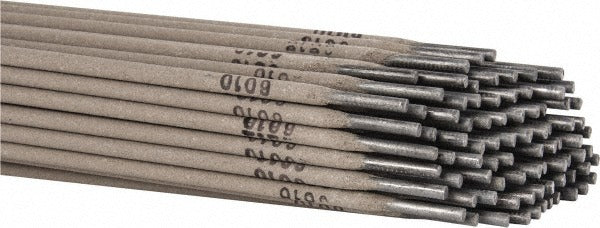

Welders Choice 59803833 E6010 Stick Electrode 1/8 in

Product Description

The WELDERS CHOICE 59803833 is an E6010 stick welding electrode designed for demanding structural and industrial welding applications. This 1/8-inch diameter, 14-inch long electrode is manufactured from steel alloy and operates on DCEP (direct current electrode positive) polarity. It runs at 75 to 125 amps, making it well-suited for out-of-position work including vertical and overhead plate welding. The E6010 classification indicates a deep-penetrating, fast-freeze arc that produces sound, clean welds even on contaminated or coated base metals. Licensed welders and certified pipe welders commonly specify this electrode for critical structural joints and x-ray-quality welds.

This electrode is used across construction, shipbuilding, pipe welding, general purpose fabrication, and maintenance welding environments. Its fast-freeze slag system allows it to perform reliably in all positions, making it a standard choice for vertical-up and overhead passes where puddle control is critical. It is equally applicable to structural plate work and field repair where base metal preparation may be less than ideal. Professional welders in structural steel, pipeline, and marine fabrication regularly rely on the E6010 classification for root and fill passes that must meet radiographic inspection standards.

Key Features

• E6010 classification with deep-penetrating, fast-freeze arc suitable for out-of-position welding
• Operates on DCEP polarity at 75 to 125 amps
• Round rod profile, 1/8 inch diameter by 14 inches long
• Steel alloy construction for structural and pipe welding applications
• Approved for use on vertical, overhead, and x-ray-quality weld joints
• Suitable for construction, shipbuilding, pipe welding, and maintenance welding

Compatibility

Designed for use with DCEP-capable stick welding machines in construction, pipe welding, and shipbuilding applications where E6010 electrodes are specified. Suitable for general purpose fabrication and maintenance welding on steel alloy base metals.

Installation Notes

Installation of welding electrodes should be performed by a qualified welder holding the appropriate certifications for the application and base material. Verify that the welding machine is set to DCEP polarity and that amperage is dialed within the 75 to 125 amp range before striking an arc. Keep electrodes dry and stored in a low-humidity environment to prevent moisture absorption that can lead to hydrogen-induced cracking. Follow applicable AWS, ASME, or job-specific welding procedure specifications for joint preparation, preheat requirements, and inspection criteria.
