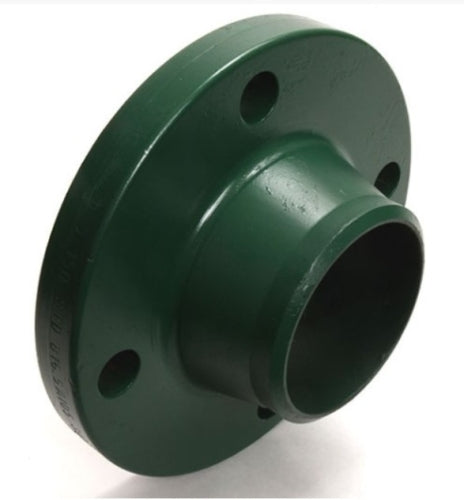

Weldbend 620-080-000 Weld Neck Flange 600 lb 8 in

Product Description

The Weldbend 620-080-000 is a raised face weld neck flange made from forged carbon steel. It has a nominal size of eight inches and a pressure rating of six hundred pounds. This flange is suitable for various piping applications.

• Material: Forged Carbon Steel
• Pressure Rating: 1480 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit

Product Highlights

This raised face flange is designed for durability and reliability in demanding environments.

Product Information

Standard Information

• Material: Forged Carbon Steel
• Domestic/Import: Domestic

Technical Specifications

• Nominal Size: 8 in
• Inside Diameter: 7.63 in
• Hub Diameter: 10-3/4 in
• Length Through Hub: 5-1/4 in
• Bolt Circle Diameter: 13-3/4 in
• Number of Bolt Holes: 12
• Bolt Hole Size: 1-1/4 in
• Thickness: 2.19 in
• Outside Diameter: 16-1/2 in
• Bore Size: SCH 40/STD
• Pressure Rating: 1480 psig
• Temperature Rating: -20 to 100 deg F
• Type: Raised Face
