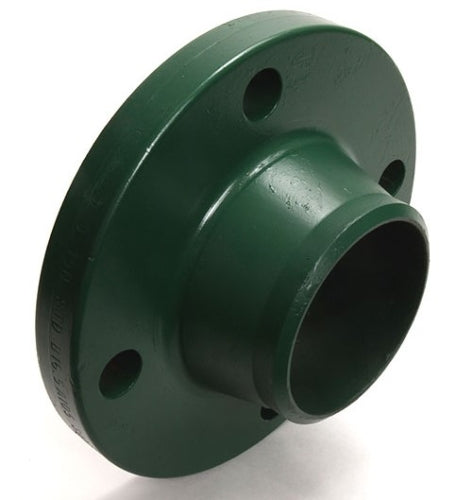

Weldbend 320-011-000 Weld Neck Flange 300 lb 1-1/4 in

Product Description

The Weldbend Weld Neck Flange, MPN 320-011-000, is designed for reliable connections in piping systems. This raised face flange has a nominal size of one and one-quarter inches and is made from forged carbon steel. It supports a pressure class of 300 lb and is suitable for a variety of applications in industrial settings.

• Manufactured from durable forged carbon steel
• Rated for pressure up to 740 psig
• Features four bolt holes for secure fittings

Product Highlights

This flange is effective in handling pressure and maintaining structural integrity within piping systems. It is appropriate for use in water, oil, and gas applications.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 320-011-000

Technical Specifications

• Bolt Circle Diameter: 3.88 in
• Bolt Hole Size: 3/4 in
• Bore Size: SCH 40/STD
• Diameter Weld: 1.66 in
• Domestic/Import: Domestic
• Hub Diameter: 2-1/2 in
• Inside Diameter: 1.38 in
• Length Through Hub: 2-1/2 in
• Material: Forged Carbon Steel
• Nominal Size: 1-1/4 in
• Number of Bolt Holes: 4
• Outside Diameter: 5-1/4 in
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
• Thickness: 0.69 in
• Type: Raised Face
