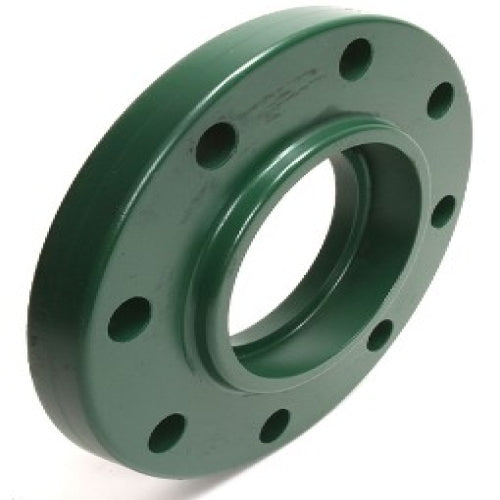

Weldbend 162-010-000 Socket Weld Flange 1 in 150 lb

Product Description

The Weldbend Socket Weld Flange is designed for pipe connections. The MPN is 162-010-000. This flange features a raised face and is crafted from forged carbon steel. It accommodates a nominal size of one inch and has an inside diameter of one point thirty-six inches.

• Material: Forged Carbon Steel
• Pressure Rating: 285 psig
• Number of Bolt Holes: 4

Product Highlights

This product ensures secure fastening in various pipe systems. It is suitable for applications that require a reliable and robust connection.

Product Information

Standard Information

• Brand: Weldbend
• General Type: Raised Face

Technical Specifications

• Nominal Size: 1 in
• Inside Diameter: 1.36 in
• Outside Diameter: 4-1/4 in
• Bolt Circle Diameter: 3.12 in
• Bolt Hole Size: 5/8 in
• Thickness: 1/2 in
• Length Through Hub: 0.62 in
• Hub Diameter: 1.94 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Bore Size: SCH 80/XH
• Domestic/Import: Domestic
• Number of Bolt Holes: 4
