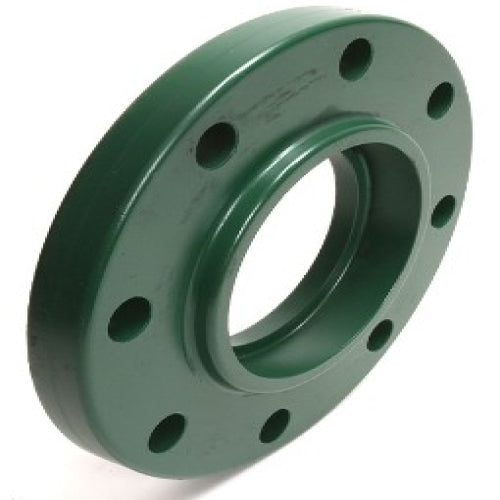

Weldbend 160-040-000 4 Class 150 Socket Weld Std RF

Product Description

Weldbend 160-040-000 is a four-inch socket weld flange designed for use in piping systems. This flange meets the requirements of 150 lb pressure class and is made from forged carbon steel, ensuring durability and strength. It features a raised face for effective sealing and is intended for use with SCH 40/STD bore piping. This flange has a bolt circle diameter of seven and one-half inches with eight bolt holes for secure installation.

• Manufactured from forged carbon steel
• Rated for pressures up to 285 psig
• Temperature tolerance between -20 to 100 degrees Fahrenheit

Product Highlights

Ideal for many industrial piping applications and environments, providing reliable performance and secure connections.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 160-040-000

Technical Specifications

• Nominal Size: 4 in
• Inside Diameter: 4.57 in
• Outside Diameter: 9 in
• Thickness: 0.88 in
• Length Through Hub: 1-1/4 in
• Hub Diameter: 5.31 in
• Bolt Circle Diameter: 7-1/2 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 8
• Bore Size: SCH 40/STD
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
• Type: Raised Face
