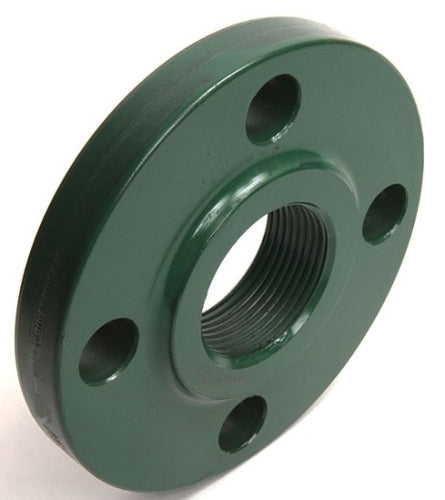

Weldbend 141-040-000 Flat Face Flange 4 in

Product Description

The Weldbend 141-040-000 is a flat face flange made of carbon steel with a nominal size of four inches. This flange features a thread connection and is designed for use in various piping systems.

• Nominal size: Four inches
• Material: Carbon steel
• Pressure class: 150 lb

Product Highlights

This flange is suitable for a wide range of applications, ensuring secure connections in piping systems.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 141-040-000

Technical Specifications

• Bolt Circle Diameter: 7-1/2 in
• Bolt Hole Size: 3/4 in
• Connection Type: Thread
• Domestic/Import: Domestic
• Hub Diameter: 5.31 in
• Length Through Hub: 1-1/4 in
• Material: Carbon Steel
• Nominal Size: 4 in
• Number of Bolt Holes: 8
• Outside Diameter: 9 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Thickness: 0.88 in
• Type: Flat Face
