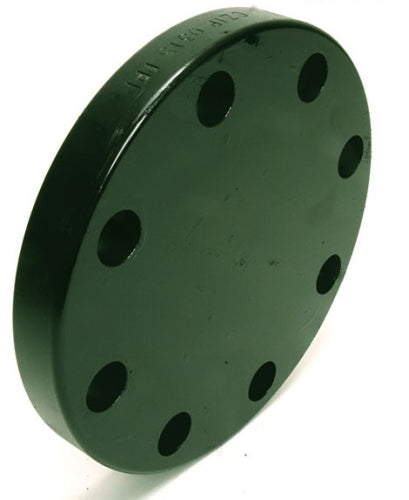

Weldbend 130-140-000 Raised Face Blind Flange 14 in 150 lb

Product Description

The Weldbend Raised Face Blind Flange with MPN 130-140-000 features a nominal size of fourteen inches. This product is made from forged carbon steel and is rated for a pressure class of 150 pounds. It meets strict domestic manufacturing standards. This blind flange is designed to close off the ends of piping systems.

• Nominal Size: 14 inches
• Thickness: 1.31 inches
• Pressure Rating: 285 psi

Product Highlights

Ideal for various piping applications, this blind flange provides reliable sealing capabilities.

Product Information

Standard Information

• Brand: Weldbend
• Manufacturer: Weldbend

Technical Specifications

• Bolt Circle Diameter: 18-3/4 inches
• Bolt Hole Size: 1-1/8 inches
• Domestic/Import: Domestic
• Material: Forged Carbon Steel
• Nominal Size: 14 inches
• Number of Bolt Holes: 12
• Outside Diameter: 21 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Temperature Rating: -20 to 1000 degrees F
• Thickness: 1.31 inches
• Type: Raised Face
