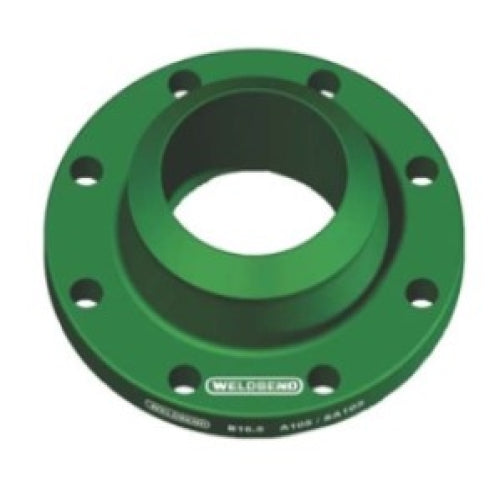

Weldbend 122-050-000 Weld Neck Flange 5 in 150 lb

Product Description

The Weldbend® 122-050-000 is a raised face weld neck flange made from forged carbon steel. This flange has a nominal size of five inches and is designed for use in various industrial applications. It features a standard bolt circle diameter of eight and one half inches with eight bolt holes of seven eighths inches in size.

• Made from forged carbon steel
• Suitable for pressures up to 285 psig
• Operates in temperatures from negative twenty to one hundred degrees Fahrenheit

Product Highlights

The Weldbend® weld neck flange is robust and reliable, ideal for connecting pipes in high-pressure systems. Its design ensures a strong welding surface, facilitating secure connections.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 122-050-000

Technical Specifications

• Nominal Size: 5 in
• Inside Diameter: 5.05 in
• Outside Diameter: 10 in
• Bore Size: XSB
• Bolt Circle Diameter: 8-1/2 in
• Number of Bolt Holes: 8
• Bolt Hole Size: 7/8 in
• Hub Diameter: 6.44 in
• Length Through Hub: 3.44 in
• Thickness: 0.88 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Type: Raised Face
• Domestic/Import: Domestic
