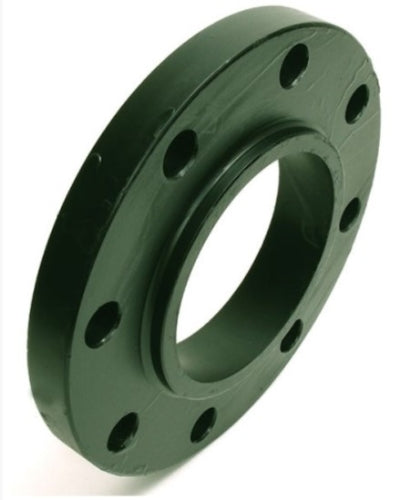

Weldbend 11A-040-030 Raised Face Reducing Slip-On Flange 4 x 3 in

Product Description

The Weldbend 11A-040-030 is a reducing slip-on flange made from forged carbon steel. This flange features a raised face and is designed for use in various piping applications. It has a nominal size of four inches by three inches, a pressure class of 150 lb, and supports a temperature range from negative twenty to one hundred degrees Fahrenheit. It is domestic and suitable for different industrial contexts.

• Made from forged carbon steel
• Temperature range of -20 to 100 degrees F
• Rated for 285 psig pressure

Product Highlights

This reducing slip-on flange is ideal for piping systems requiring reliable connections. It is built to the Class 150 standard and does not include a counter bore.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 11A-040-030

Technical Specifications

• Domestic/Import: Domestic
• Material: Forged Carbon Steel
• Nominal Size: 4 x 3 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Type: Raised Face
