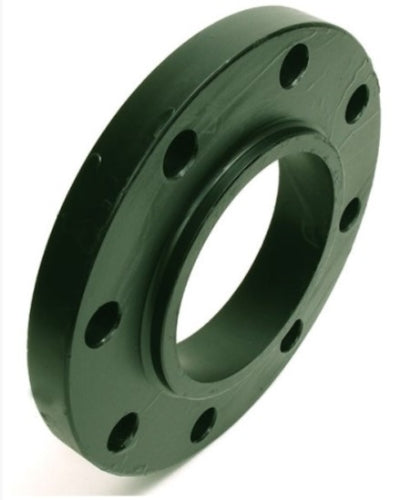

Weldbend 111-100-000 Flat Face Slip-On Flange 10 in 150 lb

Product Description

The Weldbend Slip-On Flange with MPN 111-100-000 is a flat face flange designed for pipe connections. This flange has a nominal size of ten inches and features a range of specifications for robust performance. It is made from forged carbon steel, providing strength and durability for various applications.

• Class 150 flanges do not have a counter bore.
• Suitable for pressure ratings up to 285 psig.
• Temperature rating spans from minus twenty to one hundred degrees Fahrenheit.

Product Highlights

This flange is ideal for domestic applications and is commonly used in piping systems for industrial and commercial settings.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 3056989

Technical Specifications

• Type: Flat Face
• Material: Forged Carbon Steel
• Nominal Size: 10 in
• Inside Diameter: 10.88 in
• Outside Diameter: 16 in
• Thickness: 1.12 in
• Hub Diameter: 12 in
• Length Through Hub: 1.88 in
• Bolt Circle Diameter: 14-1/4 in
• Bolt Hole Size: 1 in
• Number of Bolt Holes: 12
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Standards/Approvals: ASME SA105/B16.5|ASTM A105
