WELDBEND 105-822-020-000 2 Class 1500 Weld Neck XSB RF

Brand: WELDBEND
SKU: 105-822-020-000
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

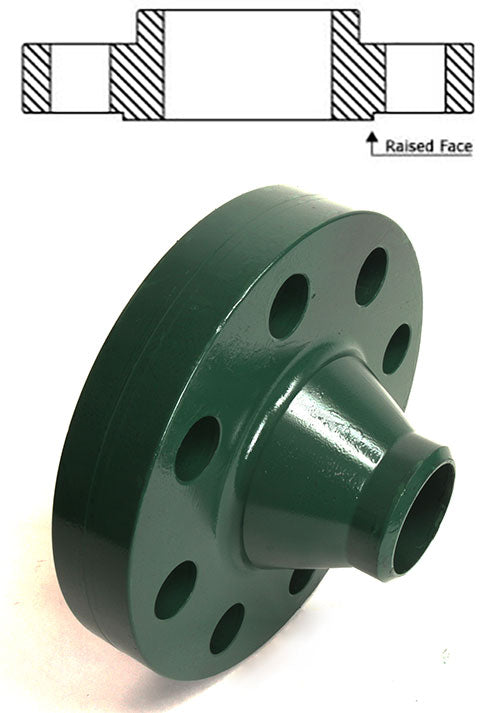

The WELDBEND 105-822-020-000 is a weld neck flange made from forged carbon steel. This flange has a nominal size of two inches and is classified as Class 1500. It features a raised face and is designed with an XSB bore. The flange includes a bolt circle diameter of six and a half inches and accommodates eight bolt holes of one-inch size. With a pressure rating of 3705 psig, it operates within a temperature range of negative twenty to one hundred degrees Fahrenheit.

  • Two-inch nominal size
  • Pressure rating of 3705 psig
  • Raised face design with eight bolt holes

Product Highlights

This weld neck flange is essential for applications requiring a robust connection in piping systems, making it suitable for high-pressure environments.

Product Information

Standard Information

  • Manufacturer: WELDBEND CORP
  • Type: Raised Face
Technical Specifications
Bolt Circle Diameter
6-1/2 in
Bolt Hole Size
1 in
Bore Size
XSB
Dimensions
2.38 in Dia Weld
Domestic/Import
Domestic
Hub Diameter
4.12 in
Length Through Hub
4 in
Material
Forged Carbon Steel
Nominal Size
2 in
Number of Bolt Holes
8
Outside Diameter
8-1/2 in
Pressure Class
1500 lb
Pressure Rating
3705 psig
Temperature Rating
-20 to 100 deg F
Thickness
1-1/2 in
