WELDBEND 105-320-040-000 PIPE FITTINGS
WELDBEND 105-320-040-000 PIPE FITTINGS

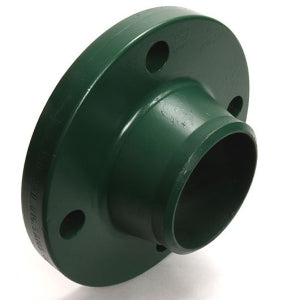

Weldbend 105-320-040-000 4 CLASS 300 RFWN STD BORE FLANGE

Brand: WELDBEND
SKU: 105-320-040-000
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Weldbend Weld Neck Flange, with MPN 105-320-040-000, is designed for robust piping systems. It features a nominal size of four inches, suitable for various industrial applications. The flange provides a strong connection in piping due to its raised face design.

  • Forged carbon steel construction
  • Rated for 740 psig pressure
  • Temperature range from -20 to 100 degrees Fahrenheit

Product Highlights

This flange is perfect for high-pressure applications and is compatible with ASME standards. Its durable construction ensures longevity in various environments.

Product Information

Standard Information

  • Manufacturer: Weldbend Corp
  • UPC: Not available
Technical Specifications
Nominal Size
4 in
Inside Diameter
4.03 in
Outside Diameter
10 in
Thickness
1.19 in
Hub Diameter
5-3/4 in
Length Through Hub
3.32 in
Bolt Circle Diameter
7.88 in
Bolt Hole Size
7/8 in
Number of Bolt Holes
8
Pressure Class
300 lb
Pressure Rating
740 psig
Bore Size
SCH 40/STD
Temperature Rating
-20 to 100 deg F
Type
Raised Face
Domestic/Import
Domestic
