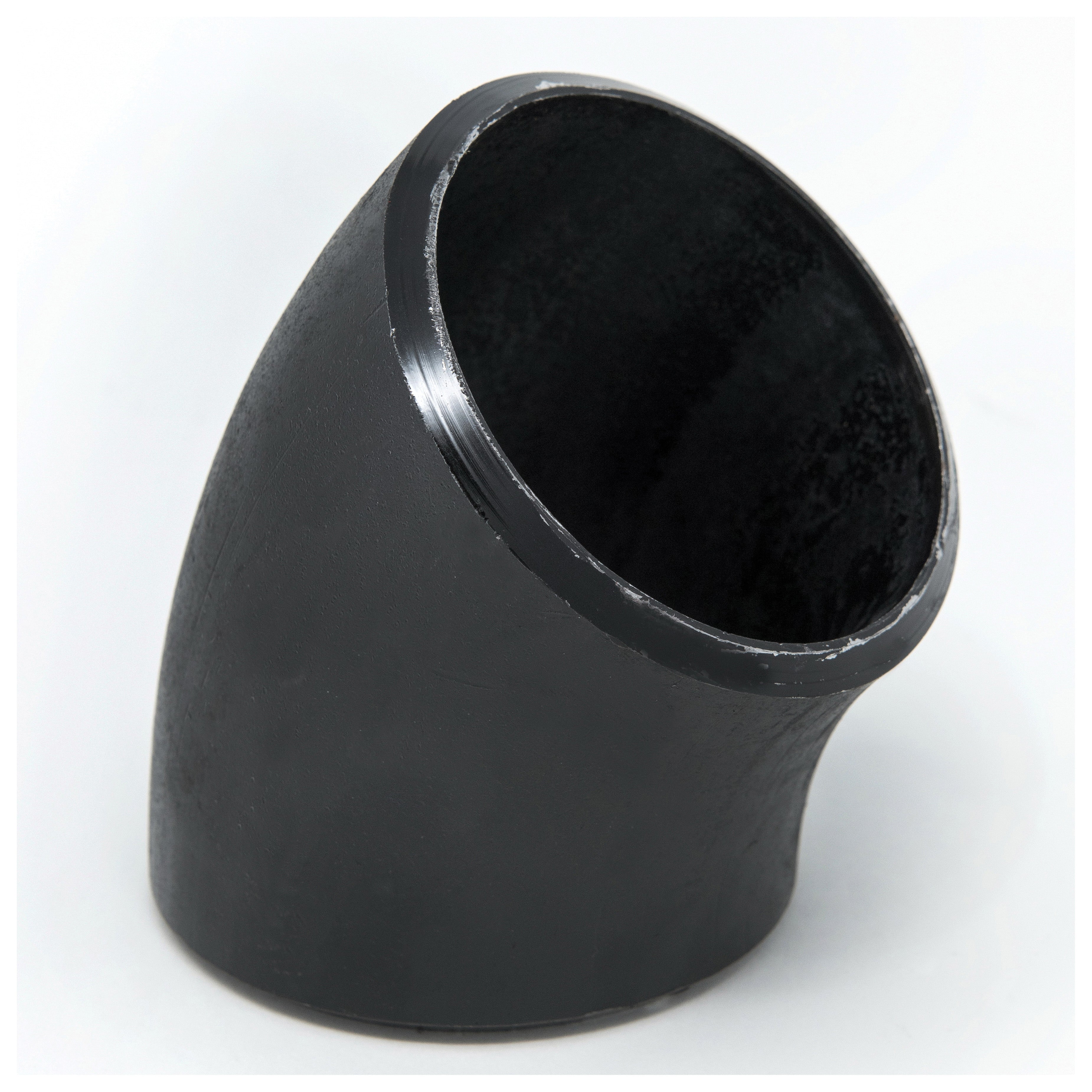

Weldbend 020-140-000 Pipe Elbow, 14 in Nominal, SCH 30

Product Description

The Weldbend® 020-140-000 is a pipe elbow that measures fourteen inches nominal. It is constructed from carbon steel and designed for butt welding. This elbow fits into a piping system with a standard schedule of thirty. It can handle temperatures ranging from negative twenty to six hundred fifty degrees Fahrenheit and has a pressure rating of nine hundred forty-one pounds. The internal diameter is twelve and one-fourth inches, while the outer diameter is fourteen inches.

• Nominal size of 14 inches
• Butt-welded end style
• Temperature range from -20 to 650 degrees Fahrenheit

Product Highlights

This product is suitable for various piping applications in plumbing and HVAC systems.

Product Information

Standard Information

• Manufacturer: Weldbend®
• Part Number: 020-140-000

Technical Specifications

• Dimensions: 12-1/4 in ID x 14 in OD
• End Style: Butt Welded
• Fitting Type: 45 deg Elbow
• Material: Carbon Steel
• Pressure Rating: 941 lb
• Schedule Rating: SCH 30
• Temperature Rating: -20 to 650 deg F
• Thickness: 3/8 in
• Standards/Approvals: ASTM A234 Grade WPB | ASME B16.9
