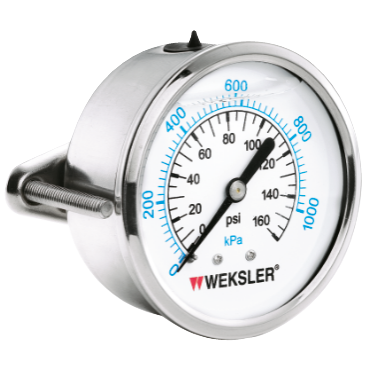

Weksler BY12YPE4CW Stainless Steel Cased Liquid Filled Pressure Gauge

Product Description

The Weksler BY12YPE4CW is a stainless steel cased liquid filled pressure gauge. This gauge features a back mount style with a face diameter of two and one half inches. It is designed for use in various applications such as automated assembly equipment, construction equipment, highway maintenance vehicles, material handling, and metalworking equipment.

• Stainless steel case and ring
• Back mount with 1/4 NPT fitting
• Pressure range from 0 to 60 psi

Product Highlights

This gauge offers dual scale dials for easy reading, marked in bar/kPa and psi on a white background for clear visibility.

Product Information

Standard Information

• Brand: Weksler
• MPN: BY12YPE4CW

Technical Specifications

• Case Material: Stainless Steel
• Gauge Type: Liquid
• Mounting Style: Back Mount
• Face Diameter: Two and one half inches
• NPT Male: One quarter inch
• Gauge Function: Pressure Gauge
• Tube Material: Bronze
• Gauge Pressure Range: 0 to 60 psi
• Pressure Range [Min]: 0 psi
• Pressure Range [Max]: 60 psi
• Socket Material: Brass
• Weight: 0.5 LB
• EAN or UPC: 759426458567
