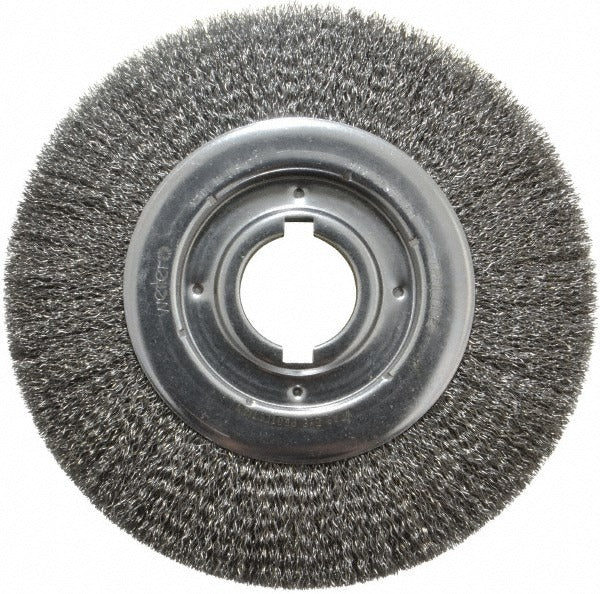

Weiler 93622 10 Inch Crimped Wire Wheel Brush

Product Description

The WEILER 93622 is a 10-inch crimped wire wheel brush designed for aggressive surface preparation on metal, weld seams, castings, and fabricated components. Built with medium-grade carbon steel fill, it mounts via a two-keyway arbor hole and operates at a maximum rated speed of 3,600 RPM. The 1-1/8-inch face width and 2-inch trim length deliver consistent contact across flat and contoured surfaces. This brush is a standard tool for metalworking shops, structural steel fabricators, and maintenance trades requiring reliable scale, rust, and paint removal without a shank-driven setup.

The WEILER 93622 is suited for bench grinder and arbor press applications in industrial and commercial environments. It performs well on deburring, weld spatter removal, surface conditioning, and pre-coating preparation. The crimped wire construction allows for consistent wire-to-surface contact on irregular or textured workpieces. This type of brush is commonly used by welders, pipefitters, millwrights, and maintenance technicians working with carbon steel substrates.

Key Features

• 10-inch outside diameter with 1-1/8-inch face width for broad surface coverage
• Medium-grade crimped carbon steel wire for aggressive material removal with consistent flexibility
• Two-keyway arbor hole mount for secure, centered seating on bench grinders
• Rated to 3,600 RPM maximum operating speed
• Filament wire diameter in the 0.010 to 0.019 inch range for medium-duty work
• No shank included — mounts directly to arbor hole equipment

Compatibility

Designed for use with bench grinders and arbor-mounted power tools that accept a two-keyway arbor hole configuration. Verify arbor hole size, RPM rating, and guard clearance against your equipment specifications before mounting.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive wheel safety per ANSI B11 and OSHA 1910.215 guidelines. Always disconnect and lock out power before mounting or removing the brush. Confirm that the grinder RPM rating meets or exceeds the brush maximum of 3,600 RPM, and ensure the wheel guard is in place before operation. Eye protection and appropriate PPE are required during use.
