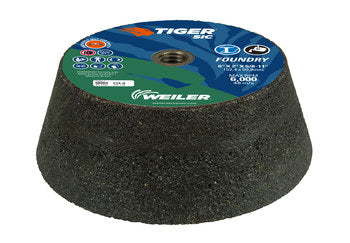

Weiler 68069 Tiger SiC Grinding/Cup Wheel 6 in Diameter Type 11

Product Description

The Weiler Tiger SiC 68069 is a six-inch type eleven flaring cup wheel designed for effective grinding. This product is made with sharp and hard silicon carbide abrasive grains that enhance metal removal efficiency, specifically for burn-in and burn-on sand casting applications.

• Suitable for medium to high power pneumatic and electric grinders
• Features a wide one and a half inch rim for large grinding area
• Quick changeover with a five-eighths inch by eleven UNC arbor

Product Highlights

Use the Tiger SiC wheel for heavy metal removal, transitioning, rough beveling, and flaw removal on various metals including carbon steel and stainless steel.

Product Information

Standard Information

• Brand: Weiler
• MPN: 68069

Technical Specifications

• Diameter: 6 inches
• Thickness: 2 inches
• Grit: 16
• Maximum Speed: 6000 rpm
• Wheel Type Number: Type 11
• Bond Type: Resin
• Wheel Hardness: Q
• Specifications Met: ANSI B7.1
• Center Hole Thread Size: 5/8-11 UNC
• Applicable Materials: Carbon Steel, Cast Iron, Ductile Iron, Stainless Steel
