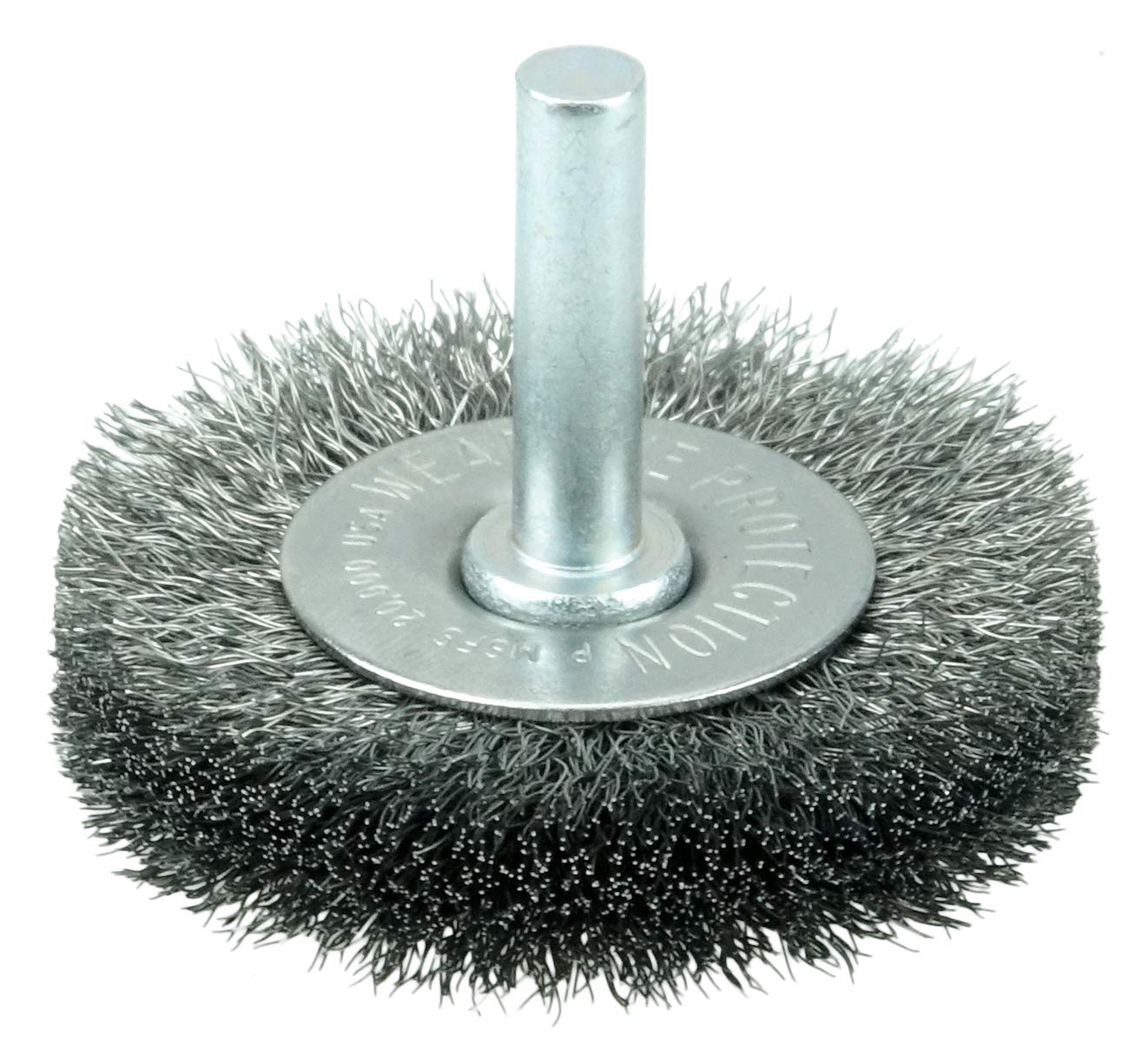

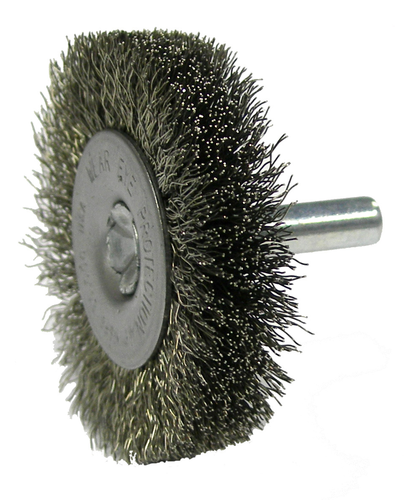

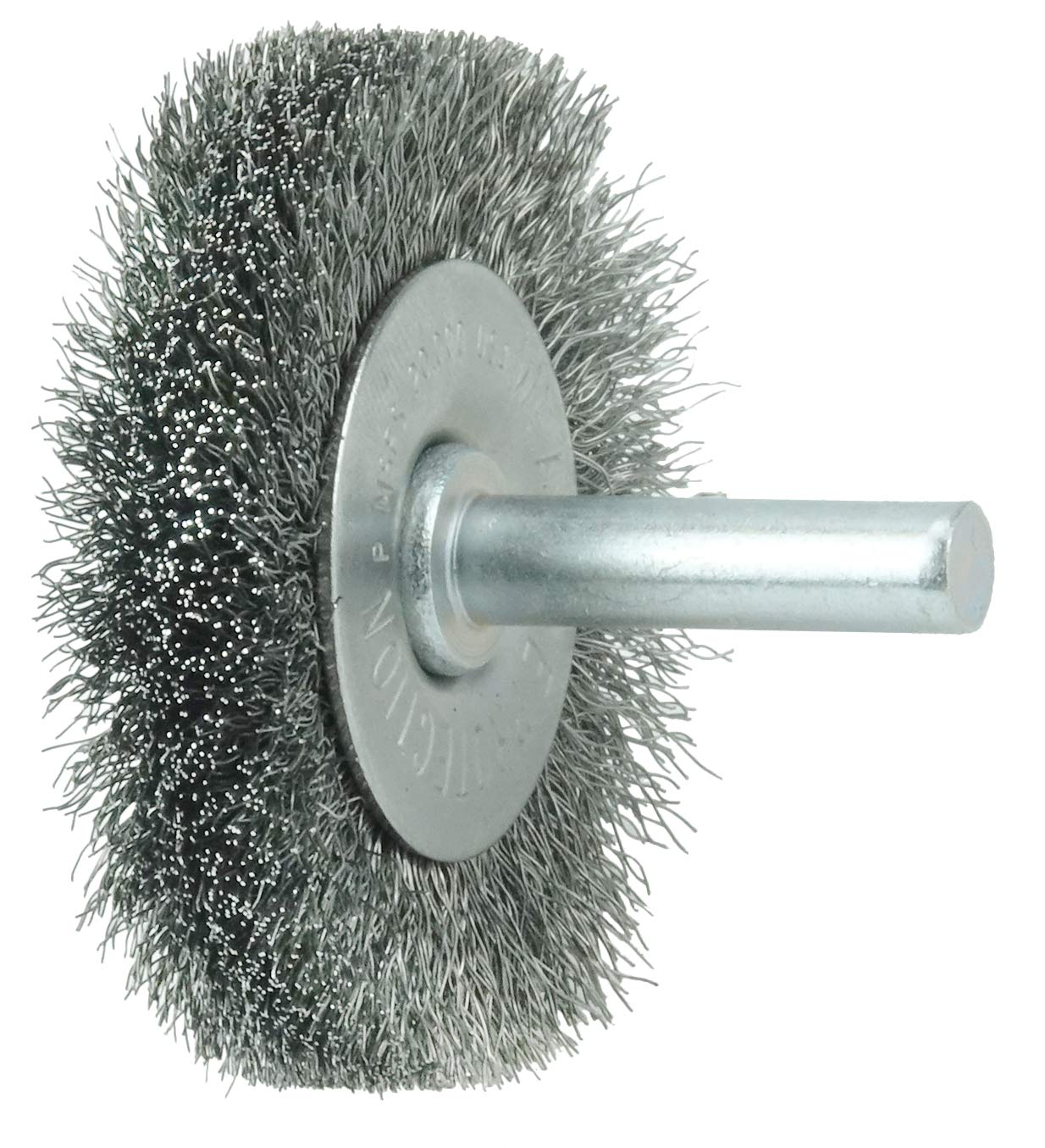

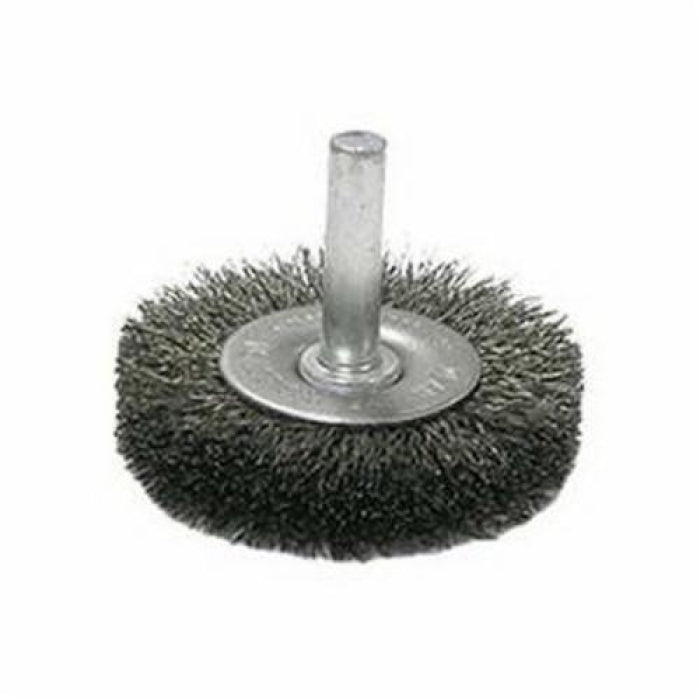

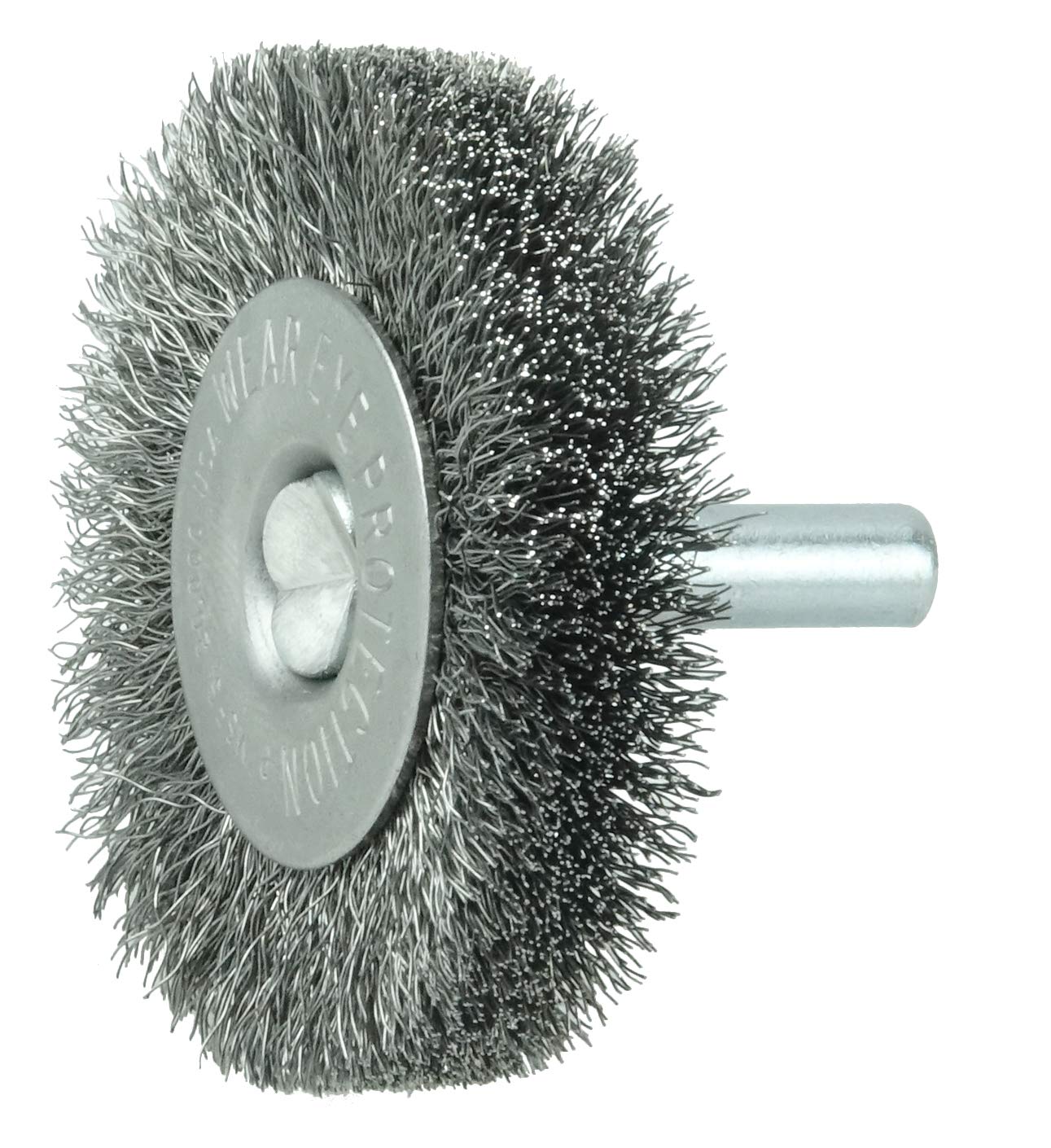

Weiler 17954 Stem-Mounted Crimped Wire Radial Wheel 2 in (1/4 in Stem)

Product Description

Weiler 17954 is a stem-mounted crimped wire radial wheel brush with a 2 in diameter and carbon steel filaments of 0.006 in diameter. It features a permanently attached 1/4 in shank, 7/16 in trim length, side plates for more controlled brushing, and a maximum operating speed of 20,000 rpm. The wheel uses solid ring construction and is intended for light-duty cleaning, deburring, and surface finishing on steel with high-speed die grinders.

• 2 in radial wheel with 0.006 in crimped carbon steel filaments
• Permanently attached 1/4 in stem, 7/16 in trim length, side plates for controlled brushing
• Solid ring construction; maximum speed 20,000 rpm; intended for light-duty cleaning and deburring on steel

Product Highlights

2 in stem-mounted crimped wire radial wheel with 0.006 in carbon steel filaments, 1/4 in shank, 7/16 in trim length, max 20,000 rpm

Product Information

Standard Information

• Brand: WEILER
• Manufacturer Part Number: 17954
• Country of Origin: United States

Technical Specifications

• Brand: Weiler
• MPN: 17954
• Product Type: Stem-mounted crimped wire radial wheel
• Diameter: 2 in
• Face Width: 3/8 in
• Fill Material: Carbon steel
• Filament/Wire Diameter: 0.006 in
• Filament/Wire Type: Crimped
• Trim Length: 7/16 in
• Shank Diameter: 1/4 in
• Attachment Type: Stem (permanently attached)
• Maximum Speed: 20,000 rpm
• Construction: Solid ring with side plates
• Intended Use: Light-duty cleaning, deburring, and surface finishing on steel; for use with high-speed die grinders
• Material Options: Heat-treated steel; Type 302 stainless steel; brass wire
• Package Quantity: 10
• Made In: USA
• Standards: ANSI B165.1
• RoHS Compliance: Compliant
• UPC: 012382179540
