Weiler 16873 Wheel Brush 2 in Diameter

Product Description

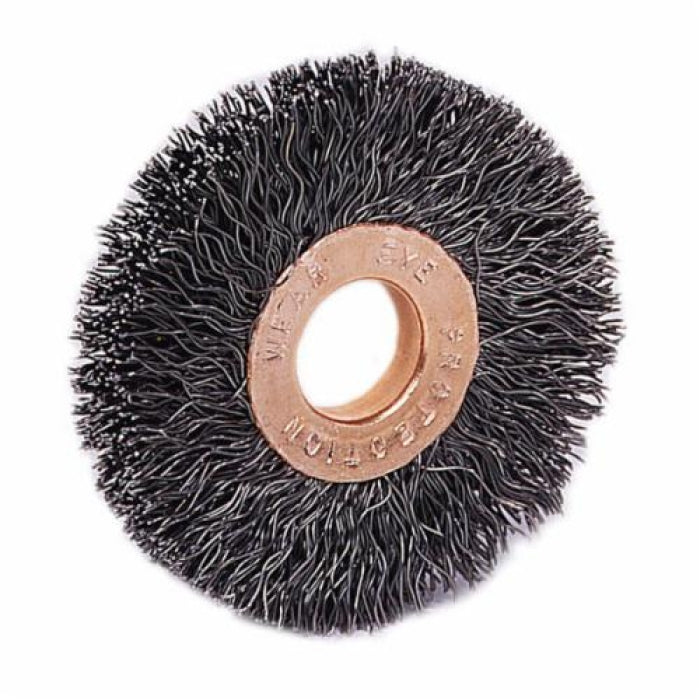

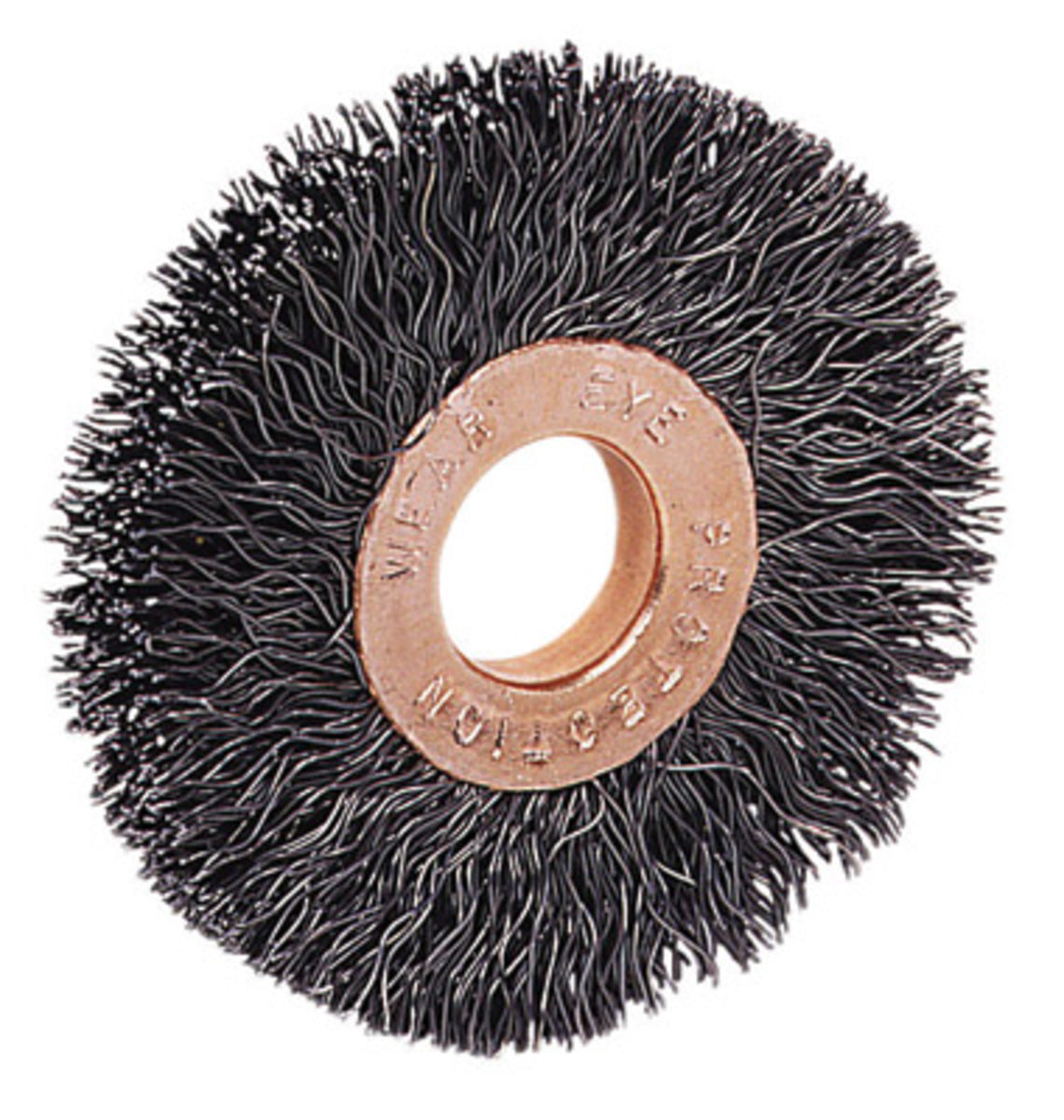

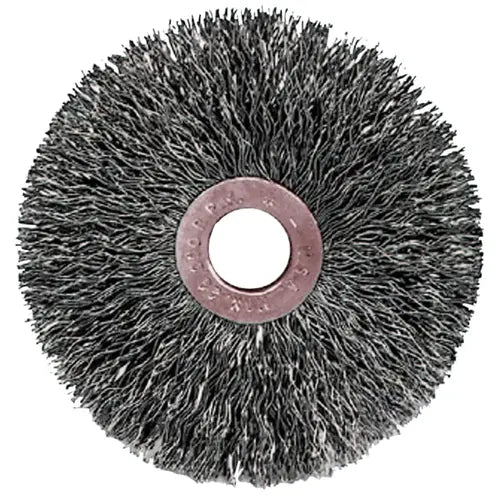

The Weiler 16873 wheel brush features a 2 in diameter and is designed for light-duty cleaning and deburring applications. It has a 3/8 in face width and uses crimped stainless steel fill with a 0.014 in filament/wire diameter. The brush has a 1/2 to 3/8 in arbor hole size and can operate at a maximum speed of 20000 rpm.

• Flexible brushing action
• Consistent performance
• Stainless steel bristles
• 1/2 in trim length

Product Highlights

This small diameter wheel brush provides a flexible brushing action and consistent performance for light-duty cleaning and deburring.

Product Information

Standard Information

• Brand: WEILER
• Manufacturer Part Number: 16873
• Country of Origin: US

Technical Specifications

• Arbor Hole Size: 1/2 to 3/8 in
• Brush Diameter: 2 in
• Face Width: 3/8 in
• Filament/Wire Diameter: 0.014 in
• Filament/Wire Type: Crimped
• Fill Material: Stainless Steel
• Maximum Speed: 20000 rpm
• Trim Length: 1/2 in
• Type: Small Diameter
• Diameter: 2 in
• Mount Type: Unthreaded Arbor
• Bristle Type: Crimped
• Product Type: Wheel Brushes
• Specification: ANSI B165.1
• Bristle Material: Stainless Steel
• Applicable Materials: Rust; Paint; Oxides; Scale
• Applications: General Purpose
• Arbor Diam [Nom]: 1/2 - 3/8 in
• Bristle Diam: 0.014 in
• Dia. [Nom]: 2 in
• Height [Nom]: 4 5/8 in
• Length [Nom]: 2 1/8 in
• Speed [Max]: 20,000 rpm
• Structure: Crimped
• Trim Length [Nom]: 1/2 in
• Used With: Die Grinders; Right-Angle Air Die Grinders; Power Drills
• Width [Nom]: 3/8 in
• Industry: Manufacturing
• ANSI Standard: B165.1
• Fill Diameter: 0.014 IN
• Brush Type: Small Diameter Wheel Brush
• Wire Diameter: .014"
• RPM: 20000
• Wire Style: Crimped Wire
• Power Tool Type: CNC/Milling/Automatic Machine, Die Grinder, Drill, Drill Press, Right Angle Die Grinder, Straight Grinder
• Outside Diameter: 2 in
• Center Hole Size: 1/2 - 3/8 in
• Face Thickness: 3/8 in
• Material Compatibility: Stainless Steel
• Overall Length: 1.9500 in
• Nominal Diameter: 2 in
• UNSPSC: 27111907
• Nom. Width: 3/8 in
• Nom. Height: 4 5/8 in
• Nom. Length: 2 1/8 in
