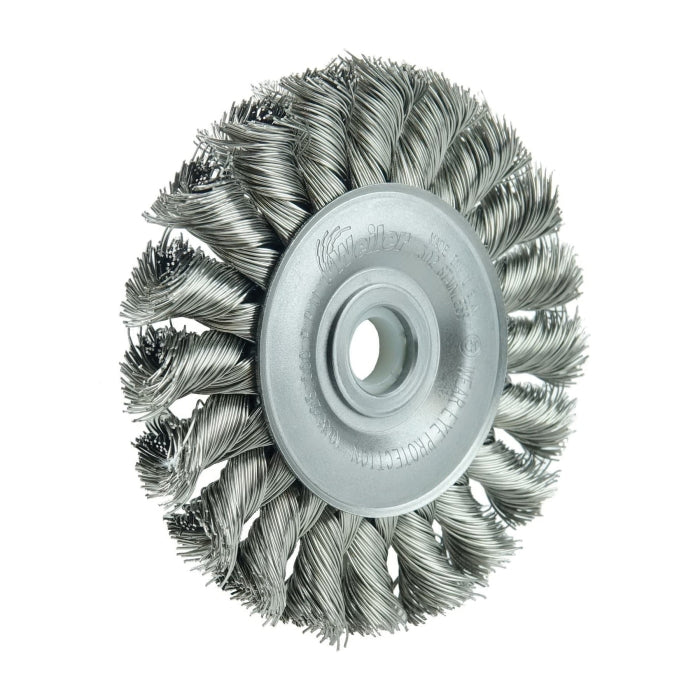

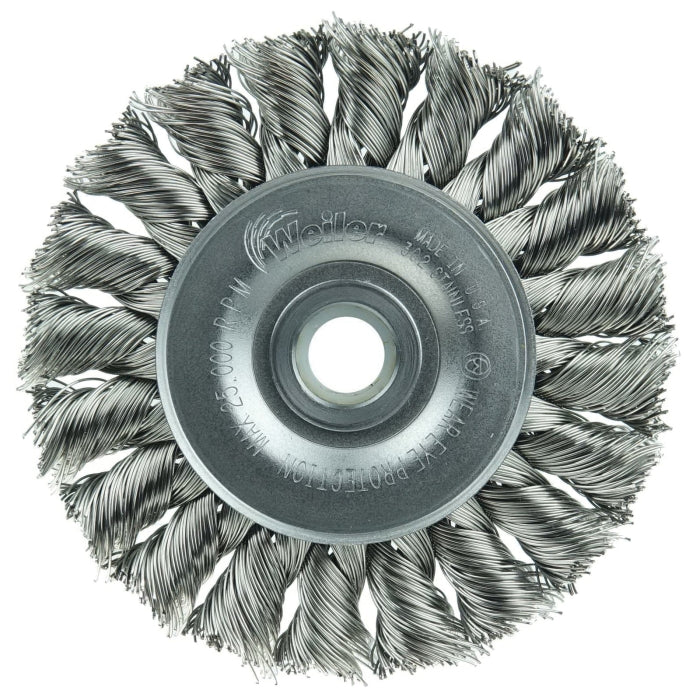

Weiler 08274 Wheel Brush 3 in x 3/8 in

Product Description

The Weiler 08274 is a 3-inch wheel brush (standard twist knot wire wheel) with stainless steel fill designed for aggressive brushing, deburring and surface conditioning. It has a 3/8-inch face width, 0.02-inch wire diameter, and a 1/2 to 3/8-inch unthreaded arbor hole. Rated to 25,000 rpm with a 5/8-inch trim length, the wheel uses individual knot construction for consistent wire count and balance. Typical applications include removing rust, scale, weld spatter and heavy burrs on somewhat irregular surfaces.

• 3 in diameter, 3/8 in face width, 0.02 in wire diameter; 5/8 in trim length
• Standard twist knot / knotted full-cable twist stainless steel bristles (Type 302) for aggressive material removal
• Unthreaded arbor mount (1/2 to 3/8 in) rated to 25,000 rpm; suitable for bench, pedestal and straight grinders

Product Highlights

3 in standard twist knot wheel brush with 0.02 in Type 302 stainless steel wire, 3/8 in face, 1/2–3/8 in unthreaded arbor, 25,000 rpm max

Product Information

Standard Information

• Brand: WEILER
• Manufacturer Part Number: 08274
• Country of Origin: United States

Technical Specifications

• Brand: Weiler
• Manufacturer Part Number: 08274
• Product Type: Wheel brush (standard twist knot wire wheel)
• Brush Diameter: 3 in
• Face Width: 3/8 in
• Arbor Hole Size: 1/2 to 3/8 in
• Mounting Type: Unthreaded arbor
• Filament/Wire Type: Standard / twist knot; knotted full-cable twist
• Wire Diameter: 0.02 in
• Fill Material: Stainless steel (Type 302)
• Maximum Speed: 25000 rpm
• Trim Length: 5/8 in
• Face Plate Thickness: 7/16 in
• Specification Standard: ANSI B165.1
• Country of Origin: United States
• Unit of Measure: Each
