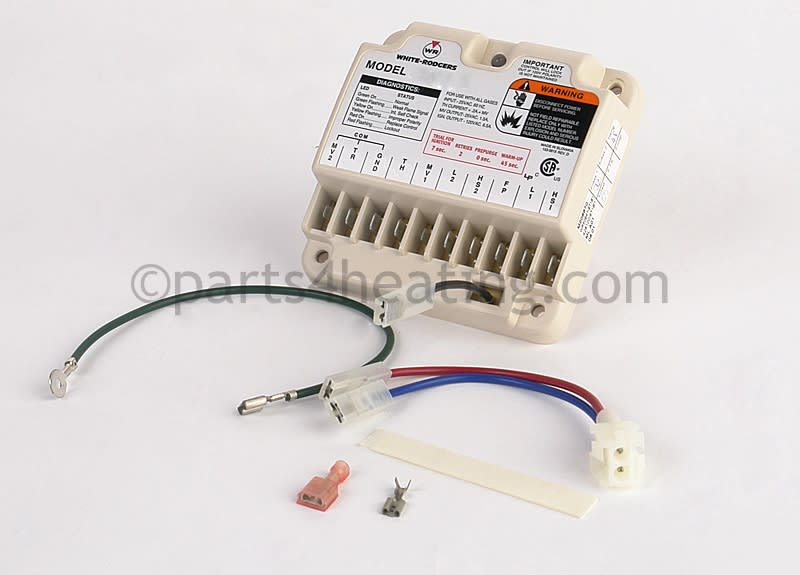

Weil-McLain 511-330-129 Ignition Module Control

Product Description

The Weil-McLain 511-330-129 is an ignition module control designed for heating systems. This control regulates the ignition sequence and monitors the flame. It accepts an input of twenty-five VAC at sixty Hz. The module provides a main valve output of twenty-five VAC at one point five A and an igniter output of one hundred twenty VAC at six point five A. Furthermore, it manages a thermostat current of zero point two A plus main valve.

• Functions as an ignition module control.
• Designed for heating system applications.
• Provides main valve and igniter outputs for system operation.

Product Highlights

Reliable ignition module control for optimal heating system performance.

Product Information

Standard Information

• Brand: Weil-McLain
• MPN: 511-330-129

Technical Specifications

• Input Voltage: 25VAC
• Input Frequency: 60 Hz
• Thermostat Current: 0.2A + MV
• Main Valve Output Voltage: 25 VAC
• Main Valve Output Current: 1.5A
• Igniter Output Voltage: 120VAC
• Igniter Output Current: 6.5A
