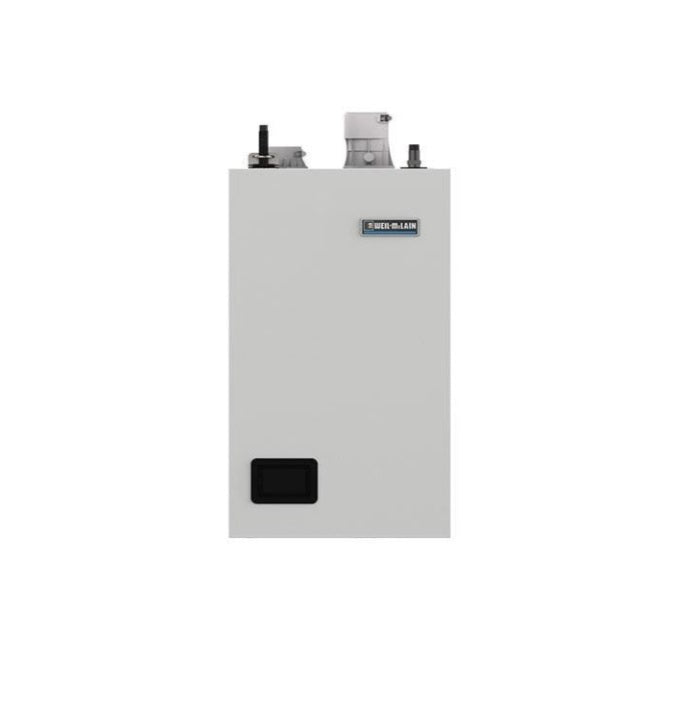

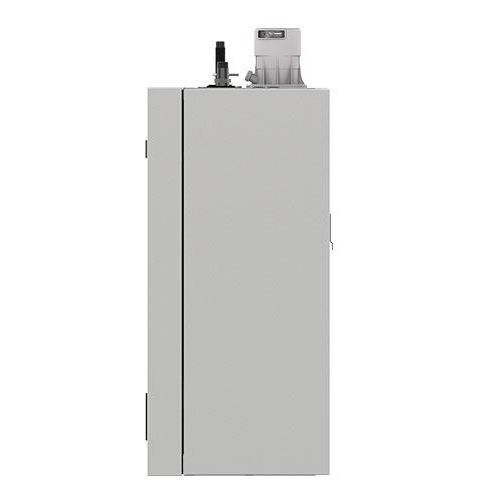

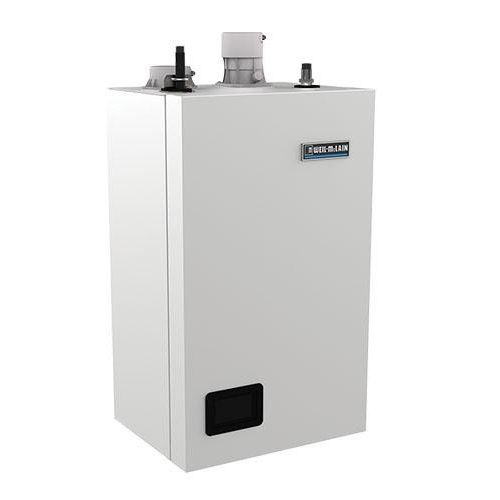

Weil-Mclain 383-200-001 Simplicity 150 Combination Wall Mount Boiler

Product Description

The Weil-Mclain 383-200-001 Simplicity 150 is a combination boiler designed for hydronic space heating and domestic hot water. It can operate as a combi boiler or heat-only boiler. The unit includes a stainless steel firetube heat exchanger and has a polypropylene base. It is suitable for wall mounting and allows for direct venting.

• Compatible with natural gas.
• Equipped with a touchscreen display.
• Includes air inlet silencer.

Product Highlights

This boiler offers flexibility and efficiency for heating needs in residential settings. It combines space heating and hot water in one unit, making it ideal for various applications.

Product Information

Standard Information

• Brand: Weil-Mclain
• MPN: 383-200-001

Technical Specifications

• BTU Input: 150000
• Fuel Type: Natural Gas
• Efficiency: 95%
• AFUE: 95%
• Boiler Outlet: 3/4 MNPT
• Boiler Inlet: 3/4 MNPT
• DHW Inlet/Outlet Connections: 1/2 MNPT
• Vent Connection: 3 PVC/PP/SS
• Gas Connection: 1/2 MNPT
• Air Intake Connection: 3 PVC
• Connection for Relief Valve & Air Vent: 3/4 MNPT
• Vent Type: Direct Vent
• Installation Type: Wall Mounted
• Height (Inches): 38-3/8
• Width (Inches): 20
• Energy Star Rated: Yes
• Features: Combo DHW, Wall Mounted
