Weidmuller 9019350000 H50,0/41D BL

Product Description

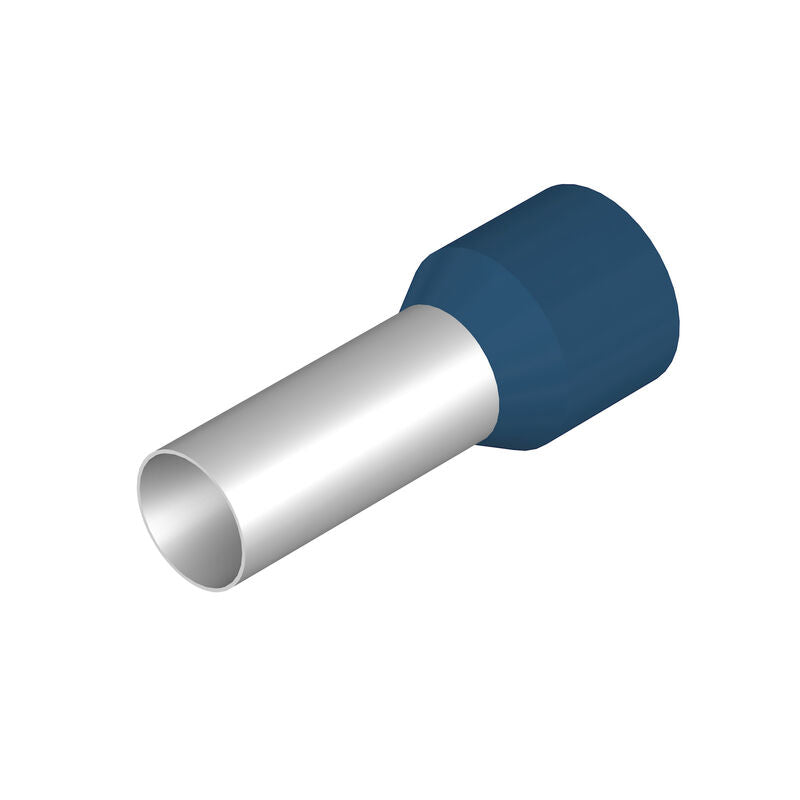

The Weidmuller 9019350000 is a standard wire-end ferrule with a plastic collar, designed for a conductor cross-section of 50 mm². It features a 31 mm stripping length and a 25 mm contact surface length. The ferrule is constructed from copper with electro-galvanized finish and is heat-resistant up to 105 degrees Celsius.

• Wire-end ferrule
• Standard
• 31 mm Stripping length

Product Highlights

Insulated wire end ferrule with a polypropylene conical entry funnel and is RoHS compliant.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 9019350000
• Country of Origin: DE

Technical Specifications

• Version: Standard
• Collar diameter (D2): 15 mm
• Colour code: DIN
• Conductor cross-section: 50 mm²
• Contact surface diameter (D1): 10.3 mm
• Contact surface length (L2): 25 mm
• L1 in mm: 41 mm
• Metal sleeve thickness (S1): 0.3 mm
• Plastic collar thickness (S2): 0.5 mm
• Stripping length: 31 mm
• Wire connection cross section AWG, max.: AWG 1
• Manufacturer: Weidmuller
• Manufacturer Part Number: Weidmuller 9019350000
• RoHS Compliant: Yes
• Part No: 9019350000
• RoHS: Yes
• Barrel Size: 15 mm Dia x 0.5 mm THK
• Barrel Type: Funnel Entry
• Color: Blue
• Conductor Size: 1
• Finish: Electro-Galvanized
• Length: 41
• Material: Copper
• Specifications: 31 mm L Stripping, 10.3 mm Dia x 25 mm L Contact Surface, 0.3 mm THK Sleeve
• Temperature Rating: 105
• Type: Insulated
