Weidmuller 9019120000 H1,5/14D SW

Product Description

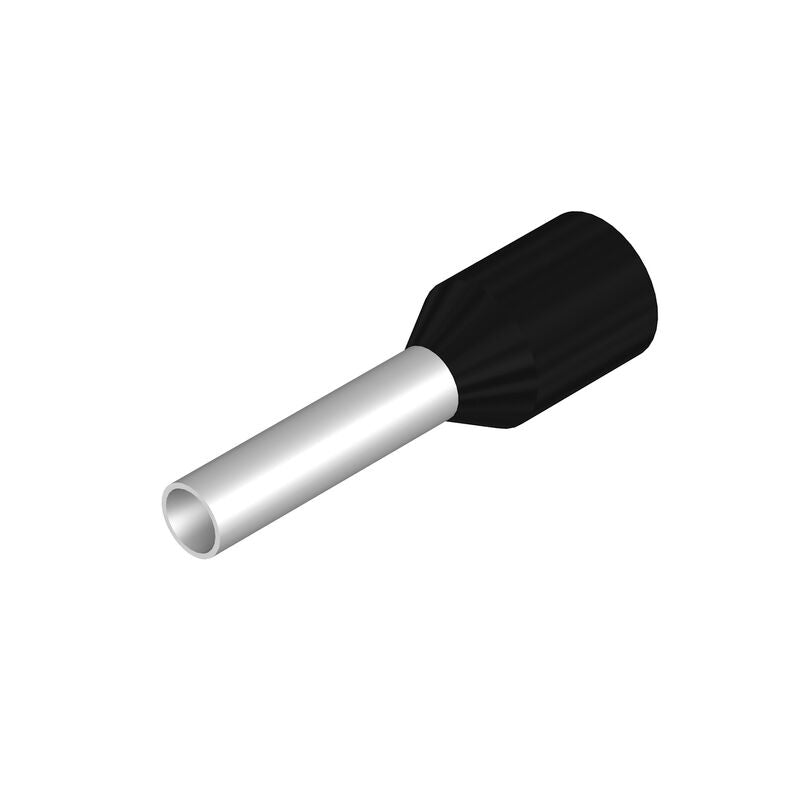

The Weidmuller 9019120000 is a wire-end ferrule with a plastic collar. This standard ferrule features a 1.5mm² conductor cross-section, 10mm stripping length and 8mm contact surface length. Constructed with a tin-plated copper contact and a black polypropylene insulator. Ideal for industrial applications.

• Wire-end ferrule
• Standard
• 10 mm stripping length
• 8 mm contact surface length
• Black color

Product Highlights

The Weidmuller 9019120000 wire-end ferrule ensures reliable wire termination with its durable construction and precise dimensions.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 9019120000

Technical Specifications

• Version: Standard
• Order No.: 9019120000
• Type: H1,5/14D SW
• GTIN (EAN): 4008190153793
• Packaging: Bulk
• Description of article: Wire end ferrule with plastic collar, black
• Collar diameter (D2): 3.5 mm
• Colour code: DIN
• Conductor cross-section: 1.5 mm
• Contact surface diameter (D1): 1.7 mm
• Contact surface length (L2): 8 mm
• L1 in mm: 14 mm
• Metal sleeve thickness (S1): 0.15 mm
• Plastic collar thickness (S2): 0.25 mm
• Stripping length: 10 mm
• Wire connection cross section AWG, max.: AWG 16
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories
• Terminal Block Wire Ferrules: Terminal Block Wire Ferrules
• Style: DIN
• Manufacturer: Weidm ller
• Size: 16 AWG (1.50mm )
• Length - Overall: 14.00mm
• Length - Pin: 8.00mm
• Wire Ferrule Type: Single Wire
• Insulator Colour: Black
• Overall Length: 14mm
• Insulator Material: PP (Polypropylene)
• Terminal Material: Copper
• Terminal Plating: Tin
• Insulation: Insulated
