Weidmuller 8965350000 ACT20X-HDI-SDO-RNC-S

Brand: Weidmuller
SKU: 8965350000
Availability: Out Of Stock
$219.95
$219.95
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

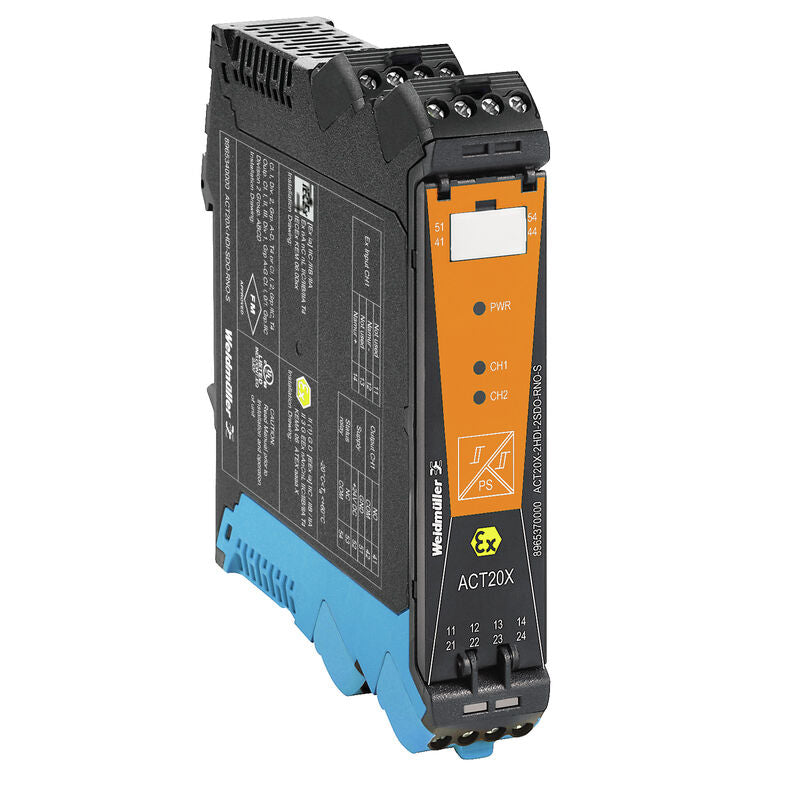

The Weidmuller 8965350000 ACT20X-HDI-SDO-RNC-S is an EX signal isolating converter with one channel. It is designed with an Ex-input for NAMUR sensors or switches and a safe-output relay with NC contact. This device transmits digital signals, galvanically isolated, from potentially explosive atmospheres to safer areas. The input circuits are intrinsically safe and can process NAMUR sensor signals.

  • EX signal isolating converter, 1-channel
  • Ex-input: NAMUR sensor/switch
  • Safe-output: relay, NC contact

Product Highlights

This converter is designed for recording NAMUR sensor signals and digital switching signals from Ex zone 0, enhancing system availability with integrated alarm contacts for malfunction alerts.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 8965350000
  • Country of Origin: Germany
Technical Specifications
Version
EX signal isolating converter, 1-channel, Ex-input: NAMUR sensor/switch, Safe-output: relay, NC contact
Order No.
8965350000
Type
Status relay 1 NC (voltage-free)
GTIN (EAN)
4032248784868

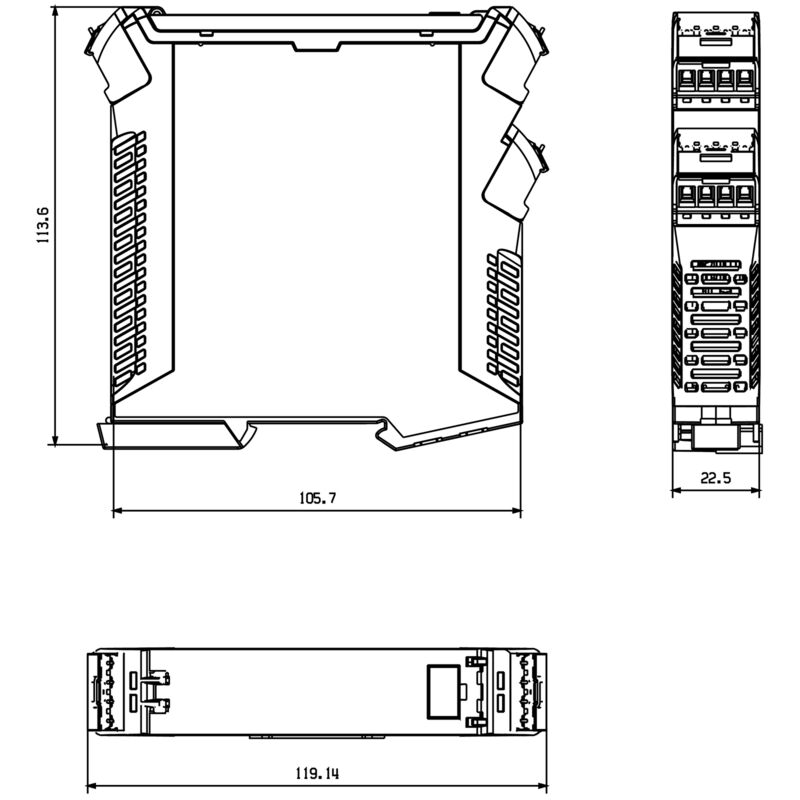

Depth
113.6 mm
Depth (inches)
4.472 inch
Height
119.2 mm
Height (inches)
4.693 inch
Width
22.5 mm
Width (inches)
0.886 inch
Net weight
175 g
Storage temperature
-20 °C...85 °C
Operating temperature
-20 °C...60 °C
Humidity
0...95 % (no condensation)
SIL in compliance with IEC 61508
2
MTBF
207 a
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924
Mounting position
horizontal or vertical
Mounting rail
TS 35
Type of mounting
Snap mounting support rail
Input frequency
<20 Hz
Input resistance
1 kΩ
NAMUR supply
8 V DC / 8 mA
Number of inputs, Ex
1
Output signal in case of wire break
<0.1 mA > 6.5 mA (in case of wire break)
Pulse duration
> 0.1 ms
Resistance
RP = 750 Ω / RS = 15kΩ
Sensor
NAMUR sensor, according to EN60947-5-6 switch with or without RS, RP
Sensor supply
8 V DC / 8 mA
Trigger level high
> 2.1 mA
Trigger level low
<1.2 mA
Continuous current
≤ 0.5 A AC / 0.3 A DC (safe zone) ≤ 0,5 A AC / 1 A DC (zone 2)
Function
Output = input direct or inverse (configurable)
Max. switching frequency
20 Hz
Nominal switching voltage
≤ 125 V AC / 110 V DC (safe area) ≤ 32 V AC / 32 V DC (zone 2)
Number of digital outputs
1
Switching capacity
500 VA / 60 W (safe area) 16 VA / 60 W (zone 2)
Alarm function
Device error Failure of power supply Short circuit at input Open circuit at input
Hysteresis
0.1 mA (switching threshold)
Number of alarm outputs
1
Power rating
≤ 62.5 VA / 32 W (safe area) ≤ 16 VA / 32 W (Zone 2)
Configuration

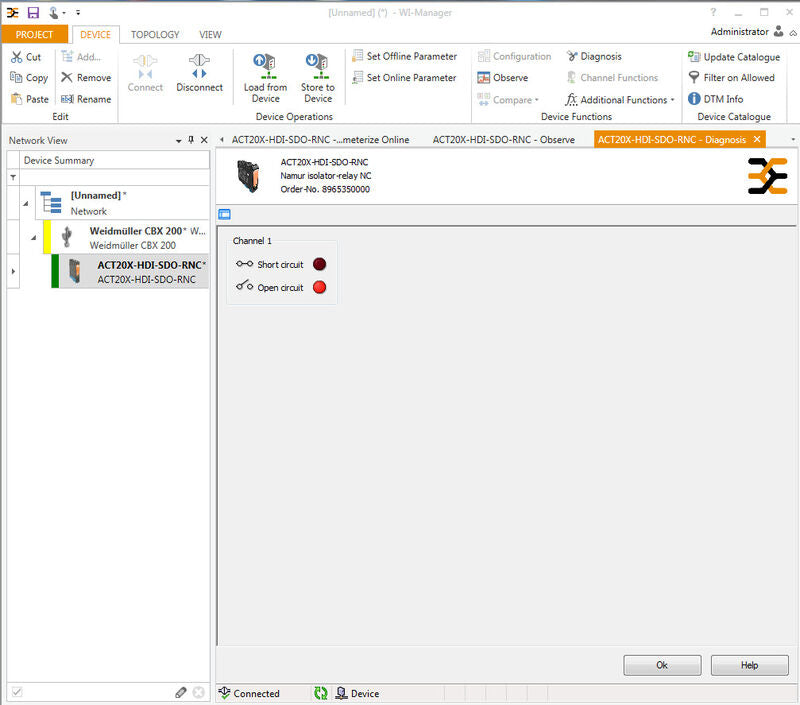

With FDT/DTM software Requires configuration adapter 8978580000 CBX200 USB
Heat dissipation
≤1,2 W
Operating altitude
≤ 2000 m
Protection degree
IP20
Supply voltage
19.2…31.2 V DC

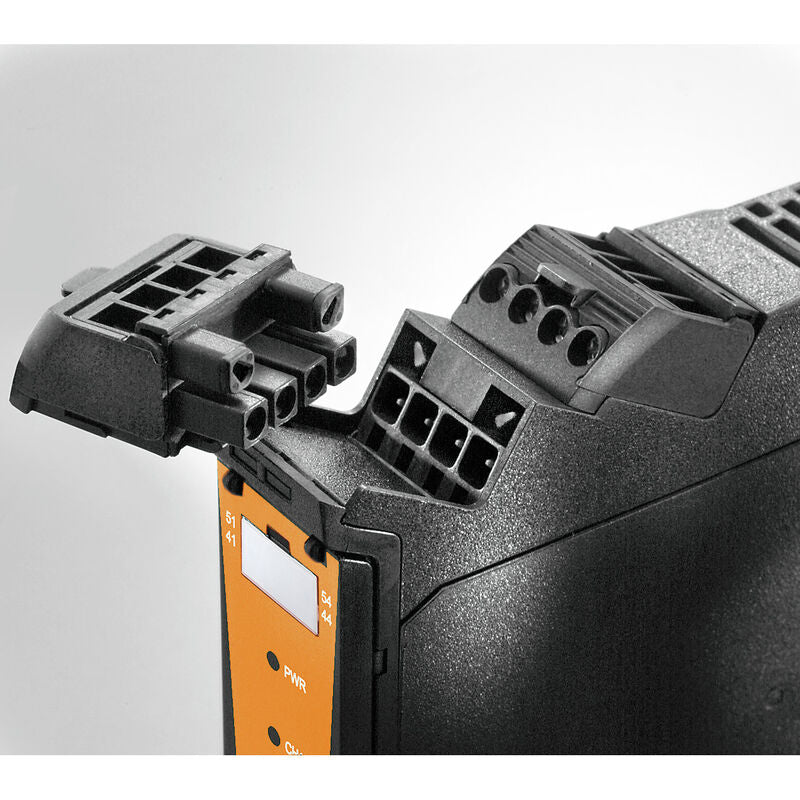

Type of connection
Screw connection
EMC standards
EN 61326-1
Insulation voltage
2.6 kV (input / output)
Rated voltage
300 V
Standards
EN 61010-1
ATEX - dust labelling
II (1) D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I
ATEX - gas labelling
II (1) G [Ex ia Ga] IIC/IIB/IIA
IECEx - gas labelling
Ex ec nC IIC T4 Gc [Ex ia Ga] IIC/IIB/IIA
Installation location
Device installed in safe area, zone 2
Tightening torque, min.
0.4 Nm
Tightening torque, max.
0.6 Nm
Clamping range, rated connection
2.5 mm²
Clamping range, min.
0.25 mm²
Clamping range, max.
2.5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 12
Time interval
3 years
ETIM 8.0
EC002653
ETIM 9.0
EC002653
ETIM 10.0
EC002653
ECLASS 14.0
27-21-01-20
ECLASS 15.0
27-21-01-20
Component
EX Signal Isolating Converter
Brand
Weidmuller
MPN
8965350000
Model
Weidmuller 8965350000 ACT20X
Condition
New
Country of Origin
Germany
Signal Conditioner Input
Digital
Signal Conditioner Output
Digital
No. of Output Channels
1Channels
Accuracy %
-
