Weidmuller 2811470000 Vg M20 - K 68

Product Description

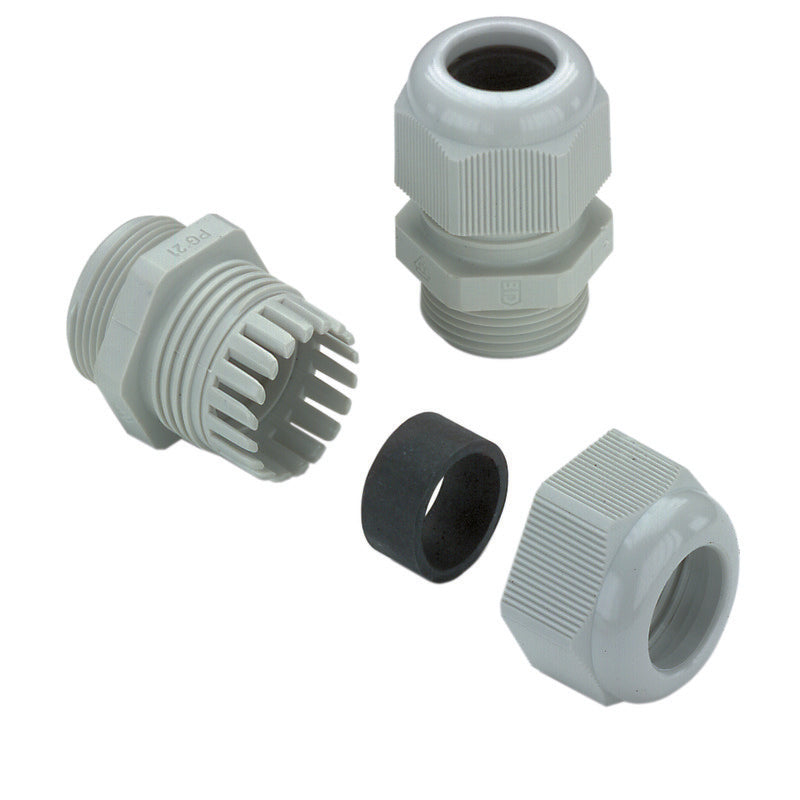

The Weidmuller 2811470000 VG M20 - K 68 is a standard plastic cable gland designed for straight cable entries. Constructed from Polyamide 6, it features an M20 thread with a 10 mm length. This cable gland provides reliable sealing for cable diameters ranging from 10 mm to 14 mm.

• IP54, IP66, IP67, IP68 - 5 bar (30 min.) protection degrees
• Operating temperature range: -40°C to 100°C
• Suitable for metric thread type connections

Product Highlights

Provides secure cable sealing with a durable polyamide construction and a wide operating temperature range.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 2811470000
• Country of Origin: DE

Technical Specifications

• Version: straight
• Order No.: 2811470000
• Type: VG M20 - K 68
• GTIN (EAN): 4064675292227
• AF size: 27 mm
• AF size 1: 27 mm
• Basic material: Polyamide 6
• Cable gland: M 20
• External thread: M 20
• Halogen: Yes
• Internal thread: without
• Length of thread: 10 mm
• Operating temperature range, max.: 100 °C
• Operating temperature range, min.: -40 °C
• Outer cable diameter, max.: 14 mm
• Outer cable diameter, min.: 10 mm
• Pitch of thread: 1.5 mm
• Protection degree: IP54
• Protection degree with GWDR: IP54
• Seal insert: CR
• Sealing: CR
• Silicone: No
• Standards: EN/IEC 62444
• Tightening torque: 3.5 Nm
• Torque for cap nut, max.: 4.5 Nm
• Torque for cap nut, min.: 3.5 Nm
• Torque for connecting adapter, max.: 4 Nm
• Torque for connecting adapter, min.: 3 Nm
• Torque for lock nut, max.: 4 Nm
• Torque for lock nut, min.: 3 Nm
• UL 94 flammability rating: V-2
• Height: 31 mm
• Height (inches): 1.22 inch
• Length: 41 mm
• Length (inches): 1.614 inch
• Operating temperature: -40 °C...100 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• ECLASS 15.0: 27-14-08-01 Cable gland (electrical installation)
• Degree of protection (IP), mounted: IP54
• Wrench size 1: 27 mm
• Glass fiber reinforced: No
• Sealing range max.: 14 mm
• Sealing range min.: 10 mm
• Fire resistance (according to UL94): V2
• Product type: VG M20 - K 68
• Internal article number: 2811470000
• Manufacturer name: Weidmueller Group
• Sealing type: Rubber/plastic
• Additional link direction: https://eshop.weidmueller.com/p/2811470000
• Connection thread type: Metric
• Bending protection present: No
• Locknut present: No
• Design: Included
• Minimum ambient temperature (during operation): -40 °C
• Maximum ambient temperature (during operation): 100 °C
• Customs tariff number: 39269097
• Type of customs tariff number: TARIC
• Connection thread length: 10 mm
• Sealing insert material: Chloroprene
• Separable screw connection: No
• For shielded cables: No
• Material: Plastic
• Total height: 31 mm
• Thread type: metric
• Nominal thread metric/PG measurement: 20
• Thread pitch: 1,5 mm
• Wrench size: 27 mm
• Hexagon corner measurement: 30,87 mm
• Suitable for cable diameter: 10..14 mm
• Material quality: Polyamide (PA)
• Surface protection: other
• Halogen-free: no
• With glass fiber reinforcement: no
• Shock resistant: yes
• Color: gray
• RAL number: 7035
• Bending protection: no
• With locknut: no
• Fits in opening: no
• Multiple application seal: no
• Flat cable screw connection: no
• With strain relief: yes
• Seal type: Sealing ring
• Divisible screw connection: no
• Application temperature: -40..100 °C
• For explosive zone gas: sem
• For explosive zone dusts: sem
• For reinforced cables: no
• EMC version: no
• Shielded: no
• Product Type: Cable Gland
• Shape: Straight
• Thread size: M 20
• Clamping Range DE min.: 10 mm
• Clamping Range DE max.: 14 mm
• IP rating: IP54, IP66, IP67, IP68 - 5 bar (30 min.)
