Weidmuller Weidmuller 2561900000 WFS 4 Fuse Terminal
Weidmuller Weidmuller 2561900000 WFS 4 Fuse Terminal

Weidmuller 2561900000 WFS 4 Fuse Terminal

Brand: Weidmuller
SKU: 2561900000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

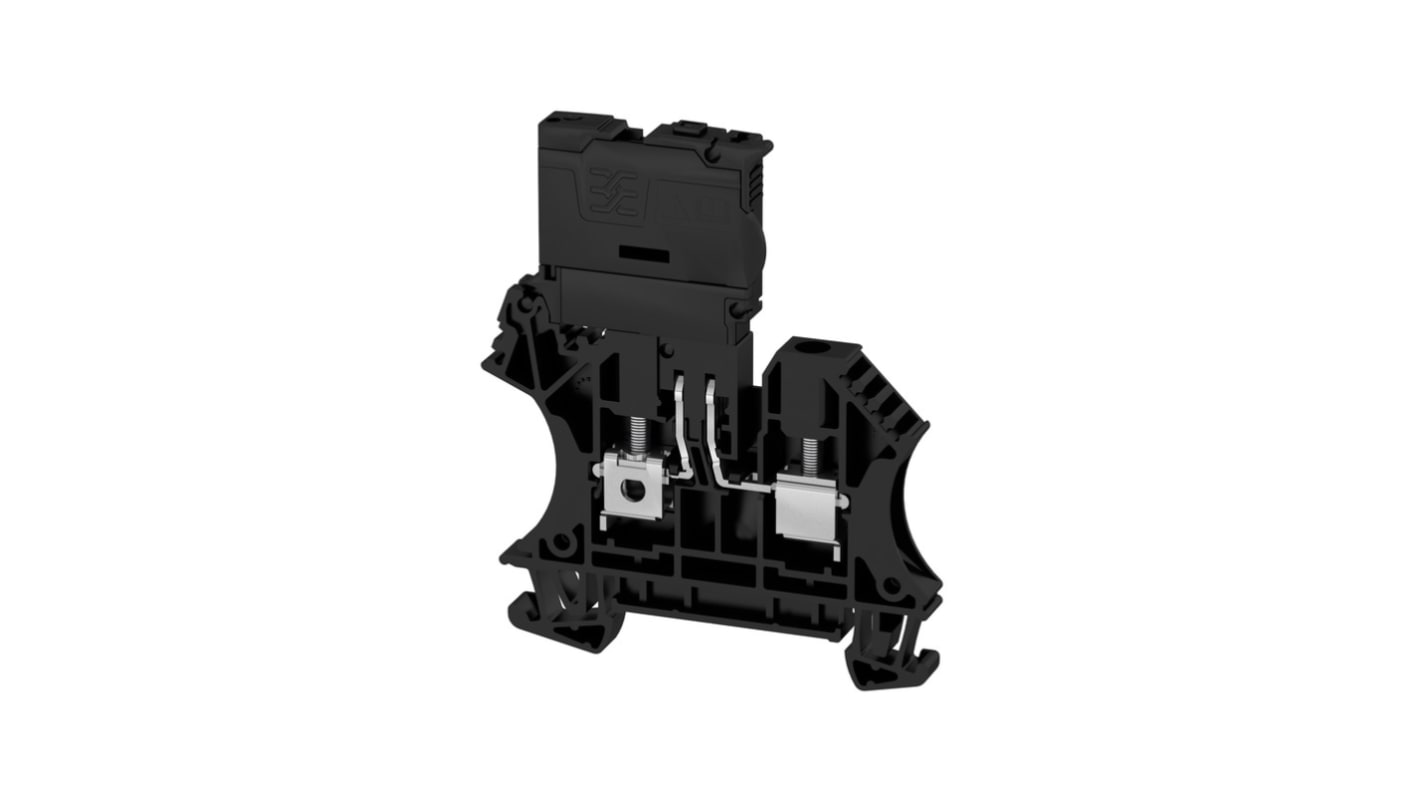

The Weidmuller 2561900000 WFS 4 is a fuse terminal with screw connections, accommodating up to 4 mm² wires and 6.3 A current at 400 V. It features two connections on a single level and is designed for TS 35 mounting rails. The fuse terminal provides overcurrent protection and separation in a single system.

  • Screw connection
  • Fuse isolator
  • Suitable for TS 35 mounting rail

Product Highlights

Compact fuse terminal block with screw connection for easy installation and reliable circuit protection.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 2561900000
  • Country of Origin: United States
Technical Specifications
Version
Fuse terminal, Screw connection, black, 4 mm ², 6.3 A, 400 V, Number of connections: 2, Number of levels: 1, TS 35
Order No.
2561900000
Type
Disconnect
GTIN (EAN)
4050118570403
Depth
75 mm
Depth (inches)
2.953 inch
Depth including DIN rail
75.5 mm
Height
62.5 mm
Height (inches)
2.461 inch
Width
6.1 mm
Width (inches)
0.24 inch
Net weight
11 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C 85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TÜV20ATEX8502U
Certificate No. (IECEX)
IECEXTUR20.0014U
Max. voltage (ATEX)
250 V
Current (ATEX)
6.3 A
Wire cross section max. (ATEX)
6 mm²
Max. voltage (IECEX)
250 V
Current (IECEX)
6.3 A
Wire cross section max. (IECEX)
6 mm²
Screw connection
Screw connection
Fuse isolator
Yes
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Screw connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
6 mm²
Clamping range, min.
0.22 mm²
Clamping screw
M 3
Connection cross-section, finely stranded, min.
0.22 mm²
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0.22 mm²
Connection direction
on side
Gauge to IEC 60947-1
A4
Number of connections
2
Stripping length
13 mm
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.5 Nm
Torque level with DMS electric screwdriver
2
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0.22 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.22 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.22 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0.22 mm²
Certificate No. (CSA)
200039-1057876
Current size B (CSA)
10 A
Current size D (CSA)
10 A
Voltage size B (CSA)
300 V
Voltage size D (CSA)
300 V
Wire cross section max. (CSA)
10 AWG
Wire cross section min. (CSA)
22 AWG
Cartridge fuse
G-Si. 5 x 20
Current
6.3 A
Display
Without LED
Fuse holder (cartridge holder)
Pivoting
Operating voltage, max.
250 V
Type of voltage for indicator
AC/DC
Standards
IEC 60947-7-3
Rated cross-section
4 mm²
Rated voltage
400 V
Rated voltage to adjoining terminal
400 V
Rated DC voltage
400 V
Nominal current
6.3 A
Current at maximum wires
6.3 A
Volume resistance according to IEC 60947-7-x
1 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
1.02 W
Pollution severity
3
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
10 AWG
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
10 AWG
Conductor size Field wiring min. (cURus)
22 AWG
Current size B (cURus)
10 A
Current size D (cURus)
10 A
Voltage size B (cURus)
300 V
Voltage size D (cURus)
300 V
ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
Category
Terminal Blocks
Series
W
Part Status
Active
Number of Positions
2
Material - Insulation
Thermoplastic, Wemid
Material Flammability Rating
UL94 V-0
Terminal - Width
6.1mm
Brand
WEIDMULLER
UPC
Does Not Apply
Country of Origin
United States
Wire Gauge or Range - AWG
10-22 AWG
Wire Gauge or Range - mm²
0.5-6mm²
Disconnect Type
Fuse, Removable Plug
Fuse Type
5mm x 20mm
Rated Current
6.3A
Rated Voltage
250V
Minimum Wire Size AWG
26AWG
Cable CSA
4mm²
Maximum Wire Size AWG
10AWG
Termination Type
Screw
Minimum Operating Temperature
-60°C
Terminal Block Current
6.3A
Maximum Operating Temperature
130°C
Hazardous Area Certification
IECEx/ATEX
No. of Positions
2Positions
Wire Size (AWG)
26AWG to 10AWG
Conductor Area CSA
4mm²
Wire Connection Method
Screw
Fuse Size Held
5mm x 20mm
Product Range
W Series
SVHC
No SVHC (23-Jan-2024)
