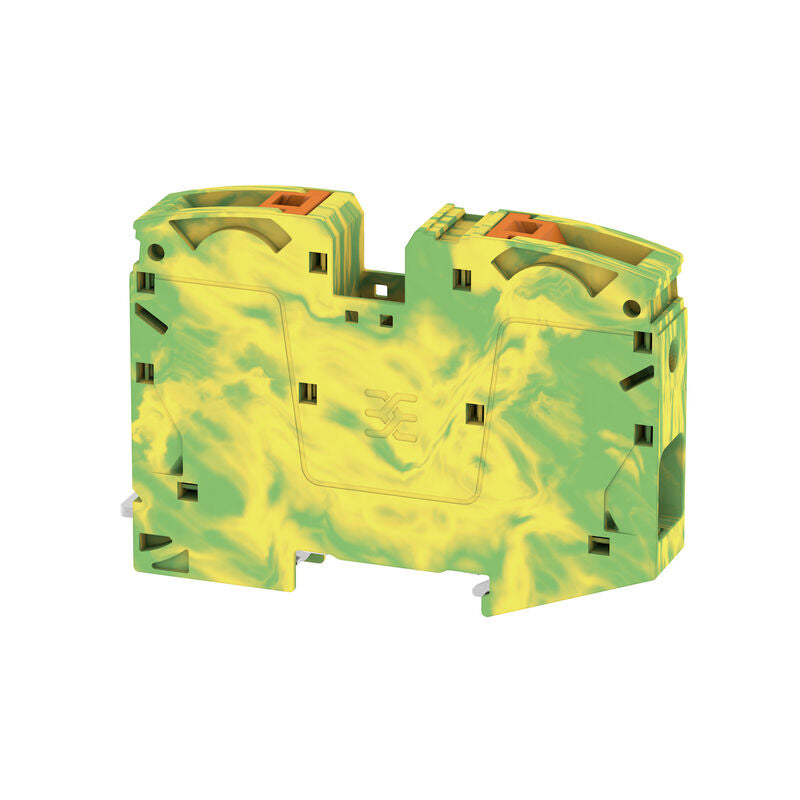

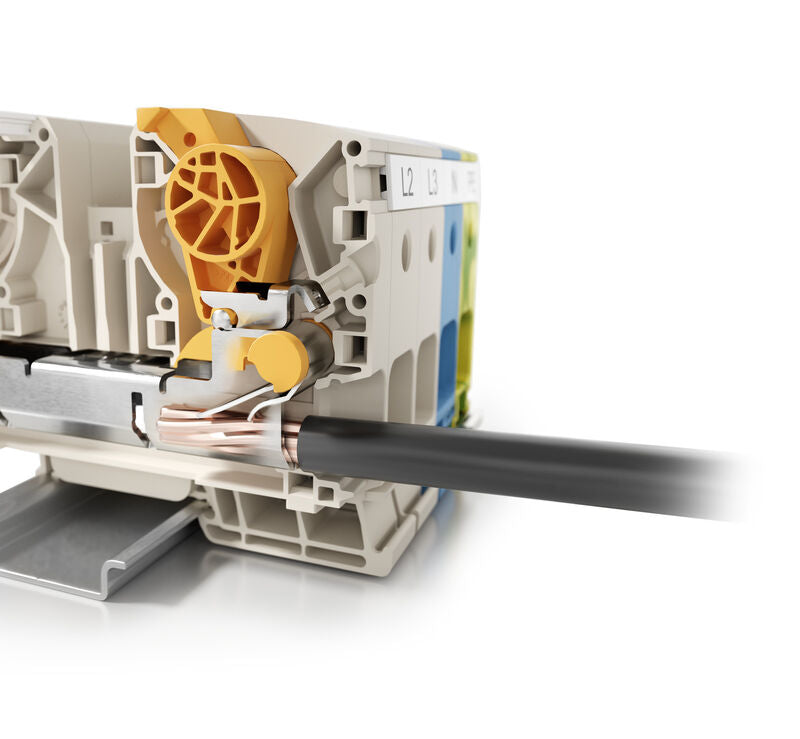

Weidmuller 2551520000 A2C 35 PE 35 mm²

Product Description

The Weidmuller 2551520000 A2C 35 PE is a PE terminal with PUSH IN connection, designed for 35 mm² wires and rated for 1000 V. It provides a robust and secure connection for various applications, ideal for industrial automation, control panels, and electrical installations. This terminal block ensures excellent conductivity, reducing the risk of signal loss and downtime.

• PE terminal
• PUSH IN connection
• Suitable for 35 mm² wires

Product Highlights

The Weidmuller A2C 35 PE terminal block offers a reliable solution for electrical connections, ensuring efficient wiring and optimal performance in demanding applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 2551520000
• Country of Origin: China

Technical Specifications

• Version: PE terminal, PUSH IN, 35 mm ², 1000 V, Green/yellow
• Order No.: 2551520000
• Type: A2C 35 PE
• GTIN (EAN): 4050118680201
• Depth: 71.5 mm
• Depth (inches): 2.815 inch
• Height: 101 mm
• Height (inches): 3.976 inch
• Width: 16 mm
• Width (inches): 0.63 inch
• Net weight: 109.905 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -5 °C …40 °C
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: Wemid
• Colour: Green/yellow
• Colour of operational elements: orange
• UL 94 flammability rating: V-0
• Certificate No. (ATEX): TUEV16ATEX7909U
• Certificate No. (IECEX): IECEXTUR16.0036U
• Wire cross section max. (ATEX): 35 mm ²
• Wire cross section max. (IECEX): 35 mm ²
• End cover plate required: No
• Number of potentials: 1
• Number of levels: 1
• Number of clamping points per level: 2
• PE connection: Yes
• Mounting rail: TS 35
• N-function: No
• PE function: Yes
• PEN function: Yes
• Explosion-tested version: Yes
• Snap-on: Yes
• Type of fixing: Snap-on
• Type of mounting: TS 35
• Connection type, additional connection: PUSH IN
• Blade size: 1.0 x 5.5 mm
• Clamping range, max.: 35 mm ²
• Clamping range, min.: 2.5 mm ²
• Connection cross-section, finely stranded, min.: 2.5 mm ²
• Connection cross-section, stranded, max.: 35 mm ²
• Connection cross-section, stranded, min.: 2.5 mm ²
• Connection direction: on side
• Number of connections: 2
• Stripping length: 25 mm
• Twin wire-end ferrules, max.: 10 mm ²
• Twin wire-end ferrules, min.: 2.5 mm ²
• Type of connection: PUSH IN
• Wire connection cross section AWG, max.: AWG 2
• Wire connection cross section AWG, min.: AWG 12
• Wire connection cross section, finely stranded, max.: 35 mm ²
• Wire connection cross section, finely stranded, min.: 2.5 mm ²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 35 mm ²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 2.5 mm ²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 35 mm ²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 2.5 mm ²
• Wire connection cross-section, solid core, max.: 16 mm ²
• Wire connection cross-section, solid core, min.: 2.5 mm ²
• Certificate No. (CSA): 200039-70089609
• Wire cross section max. (CSA): 2 AWG
• Wire cross section min. (CSA): 12 AWG
• Operating temperature range, max.: 130 °C
• Operating temperature range, min.: -50 °C
• Standards: IEC 60947-7-2
• Rated cross-section: 35 mm ²
• Rated voltage: 1,000 V
• Rated voltage to adjoining terminal: 1,000 V
• Rated DC voltage: 1,500 V
• Volume resistance according to IEC 60947-7-x: 0.26 mΩ
• Rated impulse withstand voltage to adjacent terminal: 8 kV
• Power loss in accordance with IEC 60947-7-x: 0 W
• Pollution severity: 3
• Surge voltage category: III
• Certificate No. (cURus): E60693
• Conductor size Factory wiring max. (cURus): 2 AWG
• Conductor size Factory wiring min. (cURus): 12 AWG
• Conductor size Field wiring max. (cURus): 2 AWG
• Conductor size Field wiring min. (cURus): 12 AWG
• Voltage size B (cURus): 1000 V
• Voltage size C (cURus): 1000 V
• Voltage size D (cURus): 600 V
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• ETIM 10.0: EC000901
• ECLASS 14.0: 27-25-01-03
• ECLASS 15.0: 27-25-01-03
• Terminal Block Voltage Rating: 1000 Volt
• Terminal Block Width: 16 mm
• Terminal Block Number of Levels: 1
• Terminal Block Number of Connections: 2
• Terminal Block Connection Method: Push-In Connection
• Terminal Block Component Color: Green/Yellow
• Component: Terminal Block
• Manufacturer: Weidmuller
• Sub Component: Modular PE Terminal Block
• Brand: Weidmuller
• Country of Origin: China
