Weidmuller 2551510000 A2C 35

Brand: Weidmuller
SKU: 2551510000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

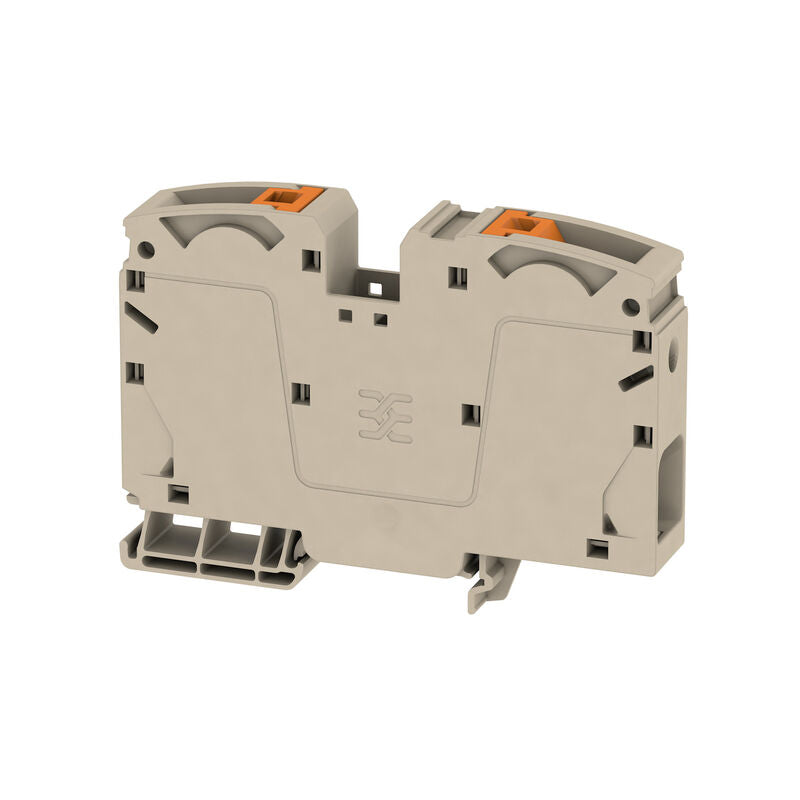

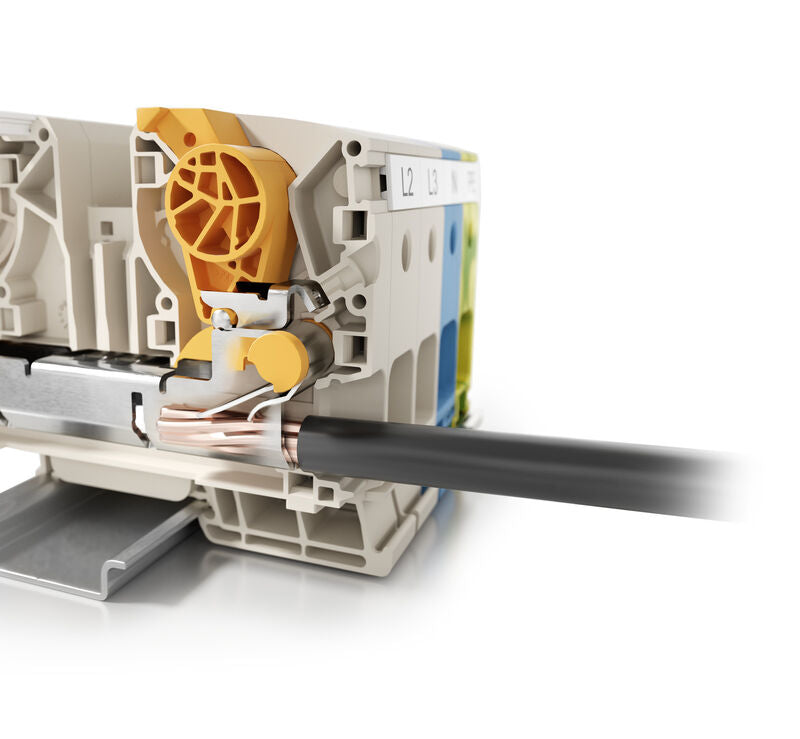

The Weidmuller 2551510000 A2C 35 is a feed-through terminal block designed for DIN rail mounting. This PUSH IN terminal block supports a 35 mm wire cross section, with a rated voltage of 1000 V and a nominal current of 125 A. It is suitable for various industrial applications.

  • PUSH IN connection type
  • Supports wire cross-sections from 2.5 to 35 mm
  • Rated for 1000 V and 125 A

Product Highlights

The Weidmuller A2C 35 is a reliable feed-through terminal block for DIN rail mounting, ensuring secure and efficient electrical connections.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 2551510000
  • Country of Origin: China
Technical Specifications
Version
Feed-through terminal, PUSH IN, 35 mm, 1000 V, 125 A, dark beige
Order No.
2551510000
Type
Feed Through
GTIN (EAN)
4050118628012
Depth
71.5 mm
Depth (inches)
2.815 inch
Height
101.5 mm
Height (inches)
3.996 inch
Width
16 mm
Width (inches)
0.63 inch
Net weight
79.726 g
Basic material
Wemid
Colour
dark beige
Colour of operational elements
orange
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Max. voltage (ATEX)
880 V
Current (ATEX)
105 A
Wire cross section max. (ATEX)
35 mm
Max. voltage (IECEX)
880 V
Current (IECEX)
105 A
Wire cross section max. (IECEX)
35 mm
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Levels cross-connected internally
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Explosion-tested version
Yes
Open sides
closed
Snap-on
Yes
Type of fixing
TS 35
Type of mounting
TS 35
Connection type, additional connection
PUSH IN
Blade size
1.0 x 5.5 mm
Clamping range, max.
35 mm
Clamping range, min.
2.5 mm
Connection cross-section, finely stranded, min.
2.5 mm
Connection cross-section, stranded, max.
35 mm
Connection cross-section, stranded, min.
2.5 mm
Number of connections
2
Stripping length
25 mm
Twin wire-end ferrules, max.
10 mm
Twin wire-end ferrules, min.
2.5 mm
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 2
Wire connection cross section AWG, min.
AWG 12
Wire connection cross section, finely stranded, max.
35 mm
Wire connection cross section, finely stranded, min.
2.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
35 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
2.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
35 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
2.5 mm
Wire connection cross-section, solid core, max.
16 mm
Wire connection cross-section, solid core, min.
2.5 mm
Number of poles
1
Operating temperature range, max.
130 C
Operating temperature range, min.
-50 C
Standards
IEC 60947-7-1
Rated cross-section
35 mm
Rated voltage
1,000 V
Rated AC voltage
1,000 V
Rated DC voltage
1,500 V
Nominal current
125 A
Current at maximum wires
125 A
Volume resistance according to IEC 60947-7-x
0.26 m
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
4 W
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
2 AWG
Conductor size Factory wiring min. (cURus)
12 AWG
Conductor size Field wiring max. (cURus)
2 AWG
Conductor size Field wiring min. (cURus)
12 AWG
Current size B (cURus)
113 A
Current size C (cURus)
113 A
Current size D (cURus)
5 A
Voltage size B (cURus)
1000 V
Voltage size C (cURus)
1000 V
Voltage size D (cURus)
600 V
Brand
Weidmuller
Category
Terminal Blk/Strip Wiring Dev
Environmental Classification
REACH SVHC
RoHS
Compliant
Color
Beige
Current - IEC
125 A
Voltage - IEC
1000V
Series
A
Current - UL
113 A
Part Status
Active
Wire Gauge or Range - AWG
2-12 AWG
Wire Gauge or Range - mm
2.5-35mm
Number of Positions
2
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
16.0mm
Material Flammability Rating
UL94 V-0
Termination Style
Push In, Spring
Part #
2551510000
