Weidmuller Weidmuller 2494020000 A3C 16 PE
Weidmuller Weidmuller 2494020000 A3C 16 PE
Weidmuller Weidmuller 2494020000 A3C 16 PE
Weidmuller Weidmuller 2494020000 A3C 16 PE

Weidmuller 2494020000 A3C 16 PE

Brand: Weidmuller
SKU: 2494020000
Availability: In Stock

Ships same day if ordered by 12 pm
$18.29
$18.29
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

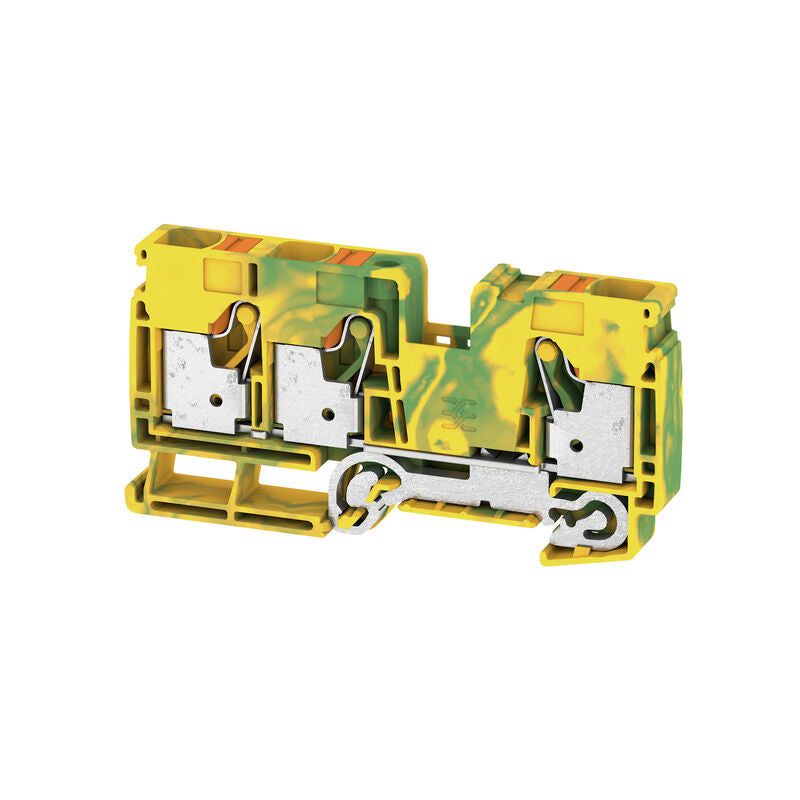

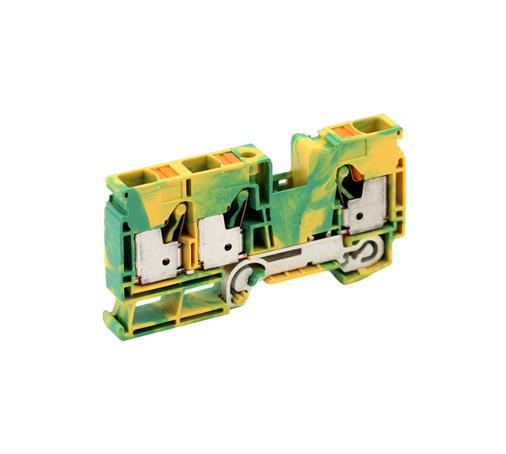

The Weidmuller 2494020000 A3C 16 PE is a PE terminal block with PUSH IN connection, designed for 16 mm ² wires and rated for 1000 V. It ensures secure electrical and mechanical connections in industrial applications and facilitates the connection of copper conductors to mounting support plates.

  • PE/PEN Functionality: Ensures reliable protective earth and PEN conductor connections.
  • High-Capacity Clamping: Supports up to three clamping points per level for bifurcation or consolidation of conductors.
  • DIN Rail Mounting: Compatible with TS 35 rails for easy integration into control panels.

Product Highlights

This terminal block features vibration-resistant PUSH IN technology, maintains secure connections, and meets international standards for hazardous locations.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 2494020000
  • Country of Origin: RO
Technical Specifications
Version
PE terminal, PUSH IN, 16 mm ², 1000 V, Green/yellow
Order No.
2494020000
Type
Feed Through Terminal Block
GTIN (EAN)
4050118503883
Depth
51.5 mm
Depth (inches)
2.028 inch
Depth including DIN rail
52.5 mm
Height
102 mm
Height (inches)
4.016 inch
Width
12 mm
Width (inches)
0.472 inch
Net weight
60.512 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C …40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
Green/yellow
Colour of operational elements
orange
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Wire cross section max. (ATEX)
16 mm²
Wire cross section max. (IECEX)
16 mm²
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
3
Number of potentials per tier
1
PE connection
Yes
Mounting rail
TS 35
PE function
Yes
PEN function
Yes
Explosion-tested version
Yes
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No
Connection type, additional connection
PUSH IN
Blade size
1.0 x 5.5 mm
Clamping range, max.
25 mm²
Clamping range, min.
0.5 mm²
Connection cross-section, finely stranded, min.
0.5 mm²
Connection cross-section, stranded, max.
25 mm²
Connection cross-section, stranded, min.
0.5 mm²
Connection direction
top
Gauge to IEC 60947-1
A6
Number of connections
3
Stripping length
18 mm
Twin wire-end ferrules, max.
6 mm²
Twin wire-end ferrules, min.
0.75 mm²
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 4
Wire connection cross section AWG, min.
AWG 18
Wire connection cross section, finely stranded, max.
25 mm²
Wire connection cross section, finely stranded, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Wire connection cross-section, solid core, max.
16 mm²
Wire connection cross-section, solid core, min.
0.5 mm²
Certificate No. (CSA)
200039-70089609
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
6 AWG
Wire cross section min. (CSA)
18 AWG
Standards
IEC 60947-7-2
Rated cross-section
16 mm²
Rated voltage
1,000 V
Rated voltage to adjoining terminal
1,000 V
Rated DC voltage
1,000 V
Volume resistance according to IEC 60947-7-x
0.42 mΩ
Rated impulse withstand voltage
8 kV
Rated impulse withstand voltage to adjacent terminal
8 kV
Power loss in accordance with IEC 60947-7-x
0 W
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
6 AWG
Conductor size Factory wiring min. (cURus)
18 AWG
Conductor size Field wiring max. (cURus)
6 AWG
Conductor size Field wiring min. (cURus)
18 AWG
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V
ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-03
ECLASS 15.0
27-25-01-03
Terminal - Width
12.0mm
Termination Style
Push In
Series
A3C
Wire Gauge or Range - AWG
4-18 AWG
Wire Gauge or Range - mm²
0.5-16mm²
Part Status
Active
Material - Insulation
Thermoplastic, Wemid
Number of Positions
3
Material Flammability Rating
UL94 V-0
Stripping Length
18mm
Brand
Weidmuller
Connection Method
Push-In
Housing Material
Thermoplastic (TP)
Maximum Operating Temperature
+ 130 C
Minimum Operating Temperature
- 60 C
Mounting Style
DIN Rail
Product Type
DIN Rail Terminal Blocks
Subcategory
Terminal Blocks
Voltage Rating
1 kV
Wire Gauge Max
4 AWG
Wire Gauge Min
18 AWG
Wire Gauge Range
18 AWG to 4 AWG
