Weidmuller Weidmuller 2428550000 A3T 2.5 PE
Weidmuller Weidmuller 2428550000 A3T 2.5 PE
Weidmuller Weidmuller 2428550000 A3T 2.5 PE
Weidmuller Weidmuller 2428550000 A3T 2.5 PE

Weidmuller 2428550000 A3T 2.5 PE

Brand: Weidmuller
SKU: 2428550000
Availability: Out Of Stock
$16.04
$16.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

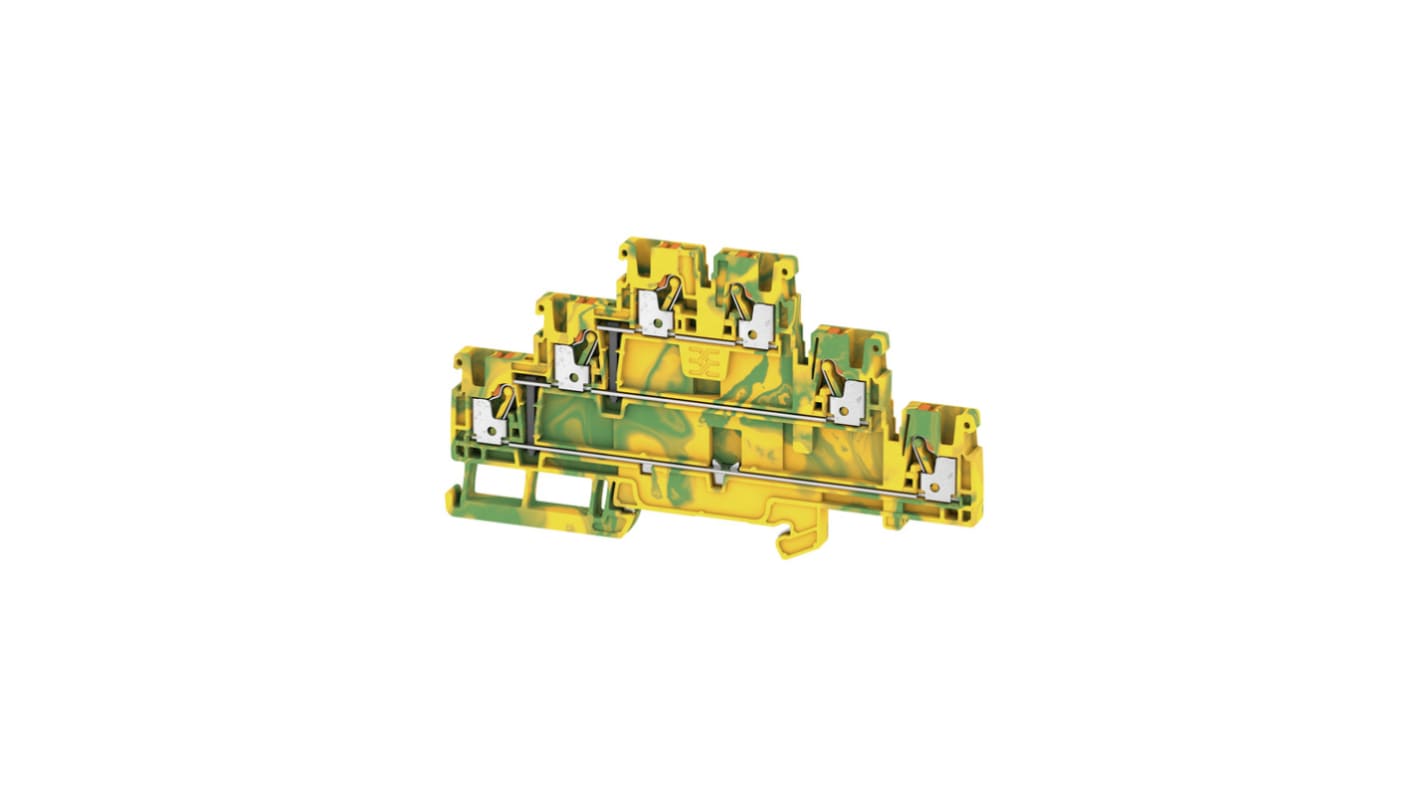

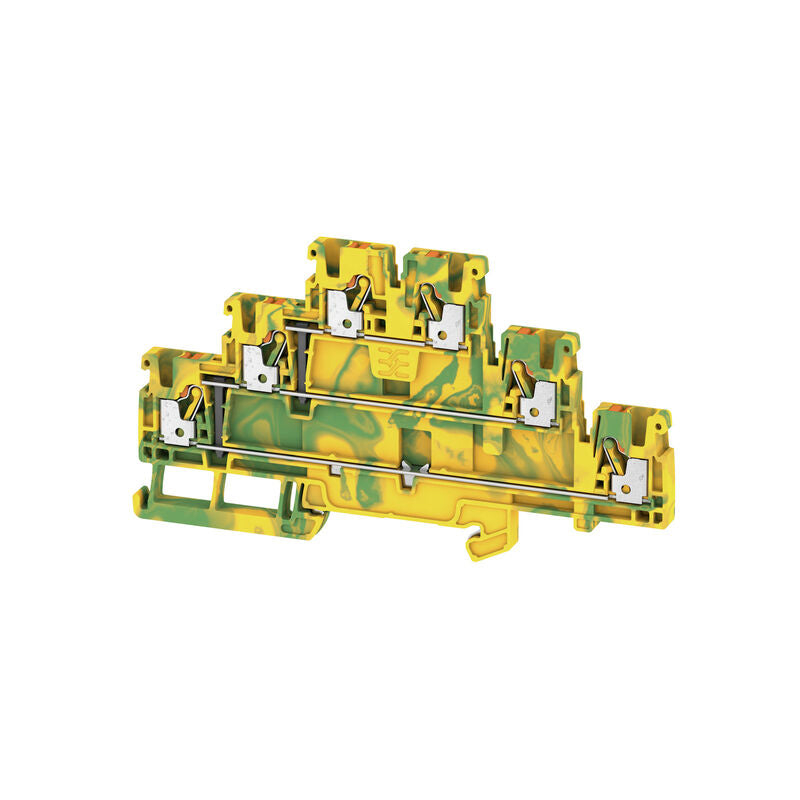

The Weidmuller A3T 2.5 PE is a PE terminal with PUSH IN connection, designed for 2.5 mm² wires. It features three levels and two clamping points per level. Constructed from Wemid material with a UL 94 flammability rating of V-0. Suitable for TS 35 mounting rail.

  • PUSH IN connection type
  • Suitable for wire sizes from 0.14 mm² to 4 mm²
  • Flame retardant Wemid housing

Product Highlights

The Weidmuller A3T 2.5 PE terminal block ensures reliable grounding with a safe and secure push-in connection.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 2428550000
  • Country of Origin: China
Technical Specifications
Version
PE terminal, PUSH IN, 2.5 mm ², Green/yellow
Order No.
2428550000
Type
Ground, Earth
GTIN (EAN)
4050118438239
Depth
64.5 mm
Depth (inches)
2.539 inch
Depth including DIN rail
65 mm
Height
116 mm
Height (inches)
4.567 inch
Width
5.1 mm
Width (inches)
0.201 inch
Net weight
24.665 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Minimum Operating Temperature
-60 °C
Maximum Operating Temperature
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
Green/yellow
Colour of operational elements
orange
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Wire cross section max. (ATEX)
2.5 mm ²
Wire cross section max. (IECEX)
2.5 mm ²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
End cover plate required
Yes
Number of potentials
1
Number of Levels
3; Connected
Number of clamping points per level
2
Levels cross-connected internally
Yes
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No
Explosion-tested version
Yes
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No
Connection type, additional connection
PUSH IN
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm ²
Clamping range, min.
0.14 mm ²
Connection cross-section, stranded, max.
4 mm ²
Connection cross-section, stranded, min.
0.14 mm ²
Connection direction
top
Gauge to IEC 60947-1
A3
Number of connections
6
Stripping Length
10 mm
Twin wire-end ferrules, max.
0.75 mm ²
Twin wire-end ferrules, min.
0.5 mm ²
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm ²
Wire connection cross section, finely stranded, min.
0.14 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.14 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.14 mm ²
Wire connection cross-section, solid core, max.
2.5 mm ²
Wire connection cross-section, solid core, min.
0.14 mm ²
Certificate No. (CSA)
200039-70089609
Voltage size B (CSA)
300 V
Voltage size C (CSA)
300 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
28 AWG
Standards
DIN EN 60947-7-2
Rated cross-section
2.5 mm ²
Rated voltage to adjoining terminal
800 V
Rated DC voltage
800 V
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
8 kV
Rated impulse withstand voltage to adjacent terminal
6 kV
Power loss in accordance with IEC 60947-7-x
0 W
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
28 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Voltage size B (cURus)
300 V
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V
ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-04
ECLASS 15.0
27-25-01-04
Terminal - Width
5.1mm
Manufacturer
Weidmüller
Termination Style
Push In
Series
A3T
Wire Gauge or Range - AWG
12-28 AWG
Wire Gauge or Range - mm²
0.5-2.5mm²
Part Status
Active
Material - Insulation
Thermoplastic, Wemid
Number of Positions
6
Material Flammability Rating
UL94 V-0
Cable CSA
2.5mm²
Minimum Wire Size AWG
26AWG
Maximum Wire Size AWG
12AWG
Termination Type
Push-in
Hazardous Area Certification
IECEx/ATEX
Country of Origin
Germany
Weidmuller Weidmuller 2428550000 A3T 2.5 PE

Weidmuller

Weidmuller 2428550000 A3T 2.5 PE

$16.04
Weidmuller Weidmuller 2428550000 A3T 2.5 PE
Weidmuller Weidmuller 2428550000 A3T 2.5 PE

Weidmuller

Weidmuller 2428550000 A3T 2.5 PE

$16.04
