Weidmuller Weidmuller 2051360000 A2C 4 PE
Weidmuller Weidmuller 2051360000 A2C 4 PE

Weidmuller 2051360000 A2C 4 PE

Brand: Weidmuller
SKU: 2051360000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

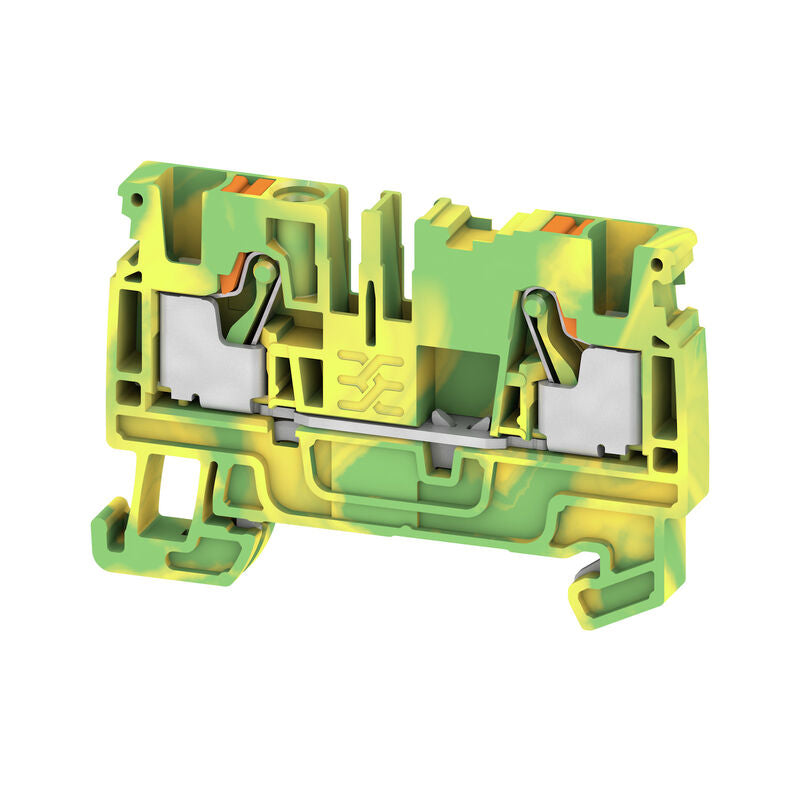

The Weidmuller 2051360000 A2C 4 PE is a PE terminal with PUSH IN connection, designed for 4 mm² wires. It features a green/yellow color and is made from Wemid material. This terminal block is suitable for DIN rail mounting and has an UL94 V-0 flammability rating.

  • PUSH IN connection
  • 4 mm² wire cross-section
  • Green/yellow color

Product Highlights

The Weidmuller 2051360000 A2C 4 PE terminal block provides a reliable and safe grounding solution for various electrical applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 2051360000
Technical Specifications
Version
PE terminal, PUSH IN, 4 mm , Green/yellow
Order No.
2051360000
Type
A2C 4 PE
GTIN (EAN)
4050118411645
Depth
39.5 mm
Depth (inches)
1.555 inch
Depth including DIN rail
40.5 mm
Height
60 mm
Height (inches)
2.362 inch
Width
6.1 mm
Width (inches)
0.24 inch
Net weight
12.357 g
Storage temperature
-25 C...55 C
Ambient temperature
-5 C 40 C
Continuous operating temp., min.
-60 C
Continuous operating temp., max.
130 C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
Green/yellow
Colour of operational elements
orange
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Wire cross section max. (ATEX)
4 mm
Wire cross section max. (IECEX)
4 mm
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No
Explosion-tested version
Yes
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No
Connection type, additional connection
PUSH IN
Blade size
0.6 x 3.5 mm
Clamping range, max.
6 mm
Clamping range, min.
0.14 mm
Connection cross-section, finely stranded, min.
0.14 mm
Connection cross-section, stranded, max.
6 mm
Connection cross-section, stranded, min.
0.14 mm
Connection direction
top
Gauge to IEC 60947-1
A4
Number of connections
2
Stripping length
12 mm
Twin wire-end ferrules, max.
1.5 mm
Twin wire-end ferrules, min.
0.5 mm
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
6 mm
Wire connection cross section, finely stranded, min.
0.14 mm
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.14 mm
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.14 mm
Wire connection cross-section, solid core, max.
4 mm
Wire connection cross-section, solid core, min.
0.14 mm
Certificate No. (CSA)
200039-70089609
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
10 AWG
Wire cross section min. (CSA)
26 AWG
Standards
IEC 60947-7-2
Rated cross-section
4 mm
Rated voltage to adjoining terminal
800 V
Rated DC voltage
800 V
Volume resistance according to IEC 60947-7-x
1 mΩ
Rated impulse withstand voltage
8 kV
Rated impulse withstand voltage to adjacent terminal
8 kV
Power loss in accordance with IEC 60947-7-x
0 W
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
10 AWG
Conductor size Factory wiring min. (cURus)
28 AWG
Conductor size Field wiring max. (cURus)
10 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V
ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-03
ECLASS 15.0
27-25-01-03
Category
Connectors, Interconnects
Terminal Blocks
Din Rail, Channel
Termination Style
Push In
Manufacturer
Weidmüller
Voltage - IEC
800V
Series
A
Voltage - UL
600V
Packaging
Box
Wire Gauge or Range - AWG
10-28 AWG
Part Status
Active
Wire Gauge or Range - mm
0.5-4mm
Ground, Earth
Ground, Earth
Material - Insulation
Thermoplastic, Wemid
Material Flammability Rating
UL94 V-0
Terminal - Width
6.1mm
Rated voltage
800V AC
Body material
wemid
Operating temperature
-60...130 C
Mounting rail size
TS35
Number of Positions
2
