Description

Product Description

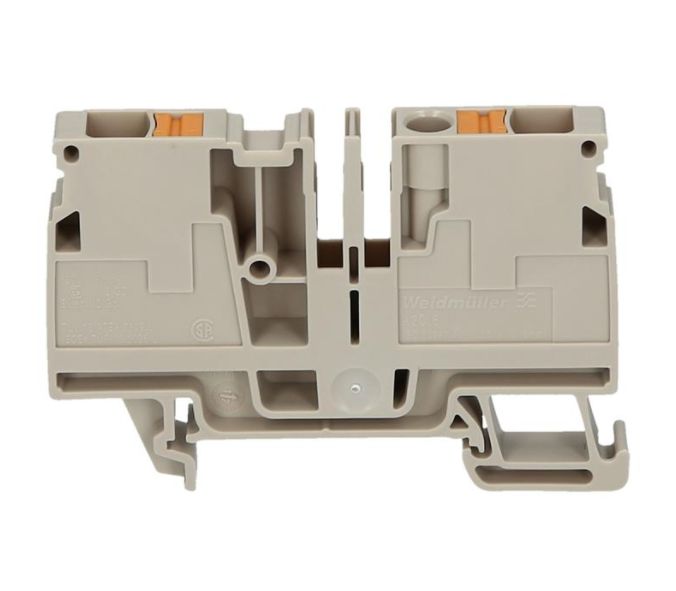

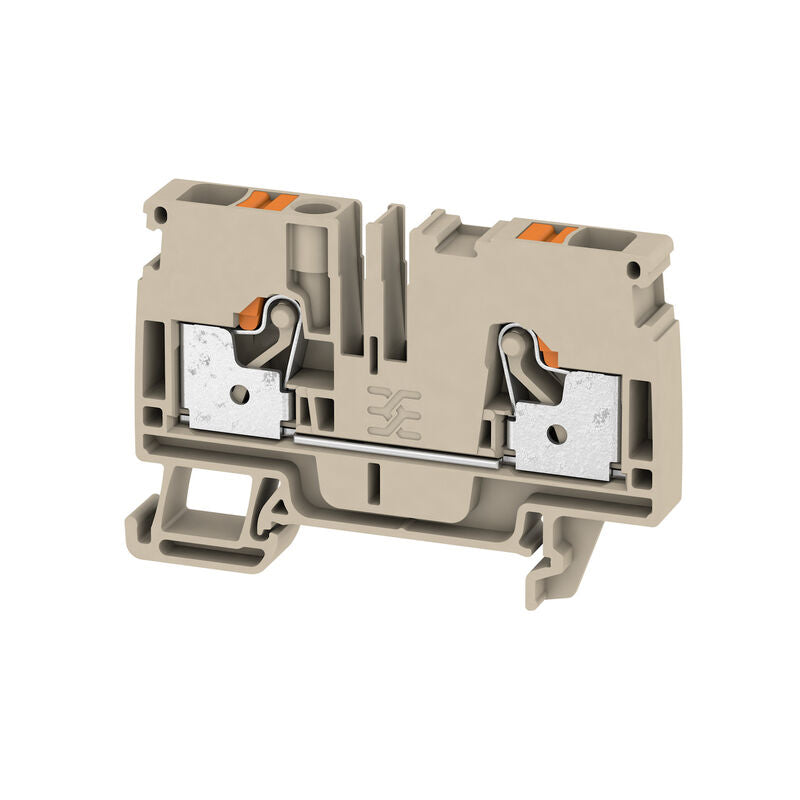

The Weidmuller 1992110000 A2C 6 is a feed-through terminal block with PUSH IN connection. This 6 mm terminal is rated at 800 V and 41 A. It enables easy wiring in a small amount of space and connection of solid and stranded conductors without ferrules.

  • PUSH IN connection type
  • Rated at 800 V and 41 A
  • Suitable for DIN rail mounting

Product Highlights

The Weidmuller A2C 6 feed-through terminal block provides reliable and efficient connectivity for industrial applications, with easy installation and secure wire connections.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1992110000
Technical Specifications
Version
Feed-through terminal, PUSH IN, 6 mm ², 800 V, 41 A, dark beige
Order No.
1992110000
Type
A2C 6
GTIN (EAN)
4050118377064
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Explosion-tested version
Yes
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No
Connection type, additional connection
PUSH IN
Blade size
1.0 x 5.5 mm
Clamping range, max.
10 mm²
Clamping range, min.
0.34 mm²
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0.5 mm²
Connection direction
top
Gauge to IEC 60947-1
A5
Number of connections
2
Stripping length
12 mm
Twin wire-end ferrules, max.
1.5 mm²
Twin wire-end ferrules, min.
0.5 mm²
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 22
Wire connection cross section, finely stranded, max.
10 mm²
Wire connection cross section, finely stranded, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0.5 mm²
Certificate No. (CSA)
200039-70089609
Current size B (CSA)
38 A
Current size C (CSA)
38 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
8 AWG
Wire cross section min. (CSA)
22 AWG
Standards
IEC 60947-7-1
Rated cross-section
6 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
41 A
Current at maximum wires
41 A
Volume resistance according to IEC 60947-7-x
0.78 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
1.31 W
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
8 AWG
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
8 AWG
Conductor size Field wiring min. (cURus)
22 AWG
Current size B (cURus)
38 A
Current size C (cURus)
38 A
Current size D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
Depth
45.5 mm
Depth (inches)
1.791 inch
Depth including DIN rail
46 mm
Height
66.5 mm
Height (inches)
2.618 inch
Width
8.1 mm
Width (inches)
0.319 inch
Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C …40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
Colour of operational elements
orange
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Max. voltage (ATEX)
550 V
Current (ATEX)
37 A
Wire cross section max. (ATEX)
6 mm²
Max. voltage (IECEX)
550 V
Current (IECEX)
37 A
Wire cross section max. (IECEX)
6 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
Mfr. Part #
1992110000
No. of Positions
2Positions
Wire Size AWG Min
22AWG
Wire Size AWG Max
8AWG
Conductor Area CSA
6mm²
Wire Connection Method
Push In
Rated Current
41A
Rated Voltage
800V
Product Range
Klippon A
SVHC
No SVHC (23-Jan-2024)
