Weidmuller 1909880000 Vg M32-1/K68

Product Description

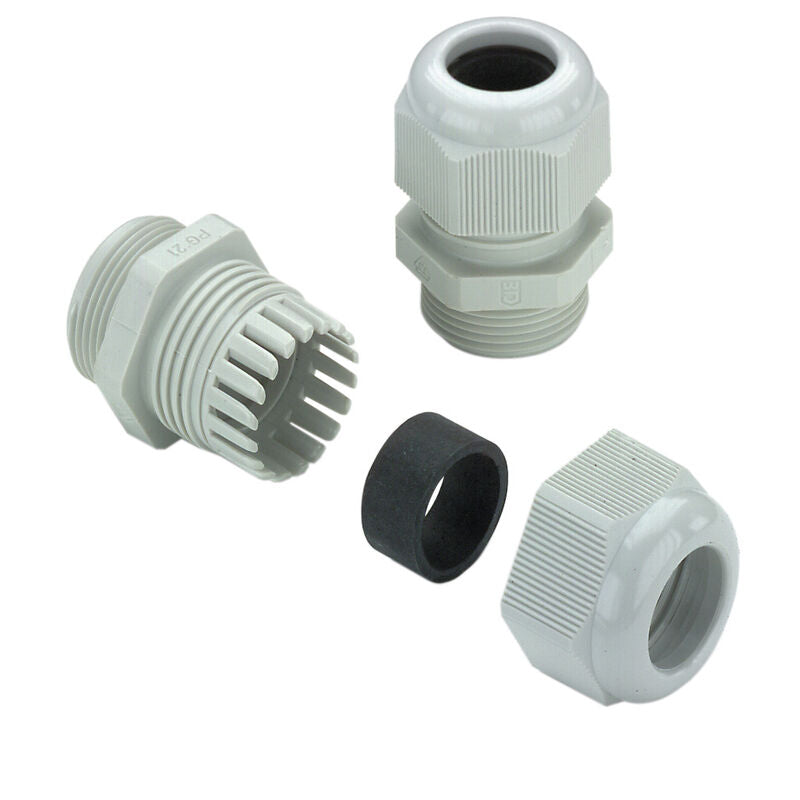

The Weidmuller 1909880000 Vg M32-1/K68 is a standard plastic cable gland. It is straight, with M 32, 10 mm, OD min. 15 - OD max. 21 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.) protection and made of Polyamide 6. It is suitable for industrial applications requiring IP68 protection.

• Cable glands, straight, M 32, 10 mm
• OD min. 15 - OD max. 21 mm
• IP54, IP66, IP67, IP68 - 5 bar (30 min.)

Product Highlights

The Weidmuller 1909880000 Vg M32-1/K68 cable gland is made of polyamide 6 and provides IP68 protection for industrial applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1909880000

Technical Specifications

• Version: VG K (standard plastic cable gland), Cable glands, straight, M 32, 10 mm, OD min. 15 - OD max. 21 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6
• Order No.: 1909880000
• Type: Standard
• GTIN (EAN): 4032248536801
• Height: 41 mm
• Height (inches): 1.614 inch
• Length: 52 mm
• Length (inches): 2.047 inch
• Net weight: 25.2 g
• Operating Temperature: -40 00b0C...100 00b0C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Approval conditions: DNV, UL, cULus
• Certificate no. cable gland (cULus): E-199260 - BM EN 14
• Certificate no. cable gland (UL): E-199260 - BM EN 14
• AF size: 36 mm
• AF size 1: 36 mm
• Basic material: Polyamide 6
• Cable gland: metric
• External thread: M 32
• Halogen: Yes
• Length of thread: 10 mm
• Note: protection class: IP66 applications only possible with sealing ring for threaded connections. Without sealing ring for threaded connections, only IP54 is possible.
• Operating temperature range, max.: 100 00b0C
• Operating temperature range, min.: -40 00b0C
• Outer cable diameter, max.: 21 mm
• Outer cable diameter, min.: 15 mm
• Pitch of thread: 1.5 mm
• Protection class (UL): Type 4X
• Protection degree: IP67, IP68 - 5 bar (30 min.)
• Protection degree with GWDR: IP54, IP66, IP67, IP68 - 5 bar (30 min.)
• Seal insert: CR
• Silicone: No
• Standards: EN/IEC 62444
• Tightening torque: 5 Nm
• Torque for cap nut, max.: 6.5 Nm
• Torque for cap nut, min.: 5.5 Nm
• Torque for connecting adapter, max.: 5.5 Nm
• Torque for connecting adapter, min.: 4.5 Nm
• Torque for lock nut, max.: 5.5 Nm
• Torque for lock nut, min.: 4.5 Nm
• UL 94 flammability rating: V-2
• ETIM 8.0: EC000441
• ETIM 9.0: EC000441
• ETIM 10.0: EC000441
• ECLASS 14.0: 27-14-08-01
• ECLASS 15.0: 27-14-08-01
• Category: Cables, Wires - Management
• Cable and Cord Grips: Cable and Cord Grips
• Thread Size: M32x1.5
• Manufacturer: Weidm 00fcller
• Thread Length: 0.394" (10.00mm)
• Series: VG
• Material: Polyamide (PA6), Nylon 6
• Packaging: Bulk
• Includes: Seal
• Part Status: Active
• Ingress Protection: IP67/IP68 - Dust Tight, Waterproof
• Outside Cable Diameter (Min): 0.591" (15.00mm)
• Outside Cable Diameter (Max): 0.827" (21.00mm)
• Base Product Number: VG M32
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8547.20.0000
• REACH Status: REACH Unaffected
• Component: Cable Gland
• Cable Gland Composition: Polyamide 6
• Cable Openings: 15 to 21 mm OD
• Dimensions: 52 mm L x 36 mm W
• Temperature Rating: -40 to 100 deg C
• Trade Size: M32x1.5
• Primary brand: Weidmuller
• Order code / Manufacturer SKU: 1909880000
• Manufacturer product status: Commercialized
