Weidmuller 1905060000 WDU 4/ZZ

Product Description

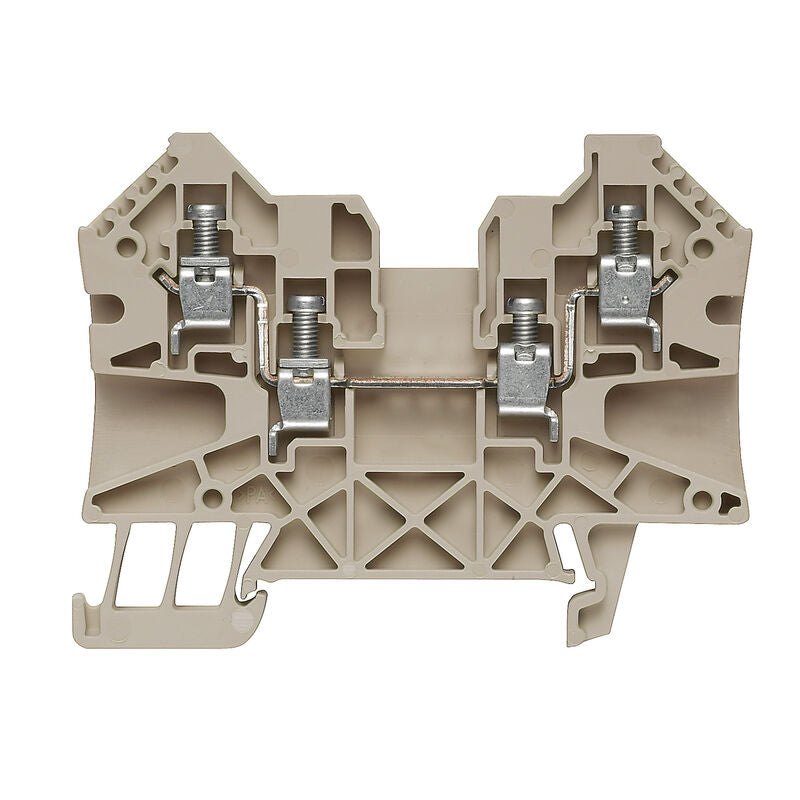

The Weidmuller 1905060000 WDU 4/ZZ is a feed-through terminal block with screw connections. This dark beige block is 4 mm² and supports 32 A at 800 V, featuring four connections. It is designed for DIN rail mounting and is RoHS compliant.

• Screw connection
• 4 mm² cross-section
• Rated for 32 A and 800 V

Product Highlights

Feed-through terminal block with screw connection, suitable for DIN rail mounting and various industrial applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1905060000

Technical Specifications

• Version: Screw connection
• Order No.: 1905060000
• Type: WDU 4/ZZ
• GTIN (EAN): 4032248523313
• Depth: 53 mm
• Depth (inches): 2.087 inch
• Depth including DIN rail: 53.5 mm
• Height: 70 mm
• Height (inches): 2.756 inch
• Width: 6.1 mm
• Width (inches): 0.24 inch
• Net weight: 13.66 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -60 °C…85 °C
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: Wemid
• Colour: dark beige
• UL 94 flammability rating: V-0
• Certificate No. (ATEX): DEMKO14ATEX1338U
• Certificate No. (IECEX): IECEXULD14.0005U
• Max. voltage (ATEX): 690 V
• Current (ATEX): 29.5 A
• Wire cross section max. (ATEX): 4 mm²
• Max. voltage (IECEX): 690 V
• Current (IECEX): 29.5 A
• Wire cross section max. (IECEX): 4 mm²
• Marking EN 60079-7: Ex eb II C Gb
• Ex 2014/34/EU label: II 2 G D
• Twin connection: for plug-in cross-connector
• End cover plate required: Yes
• Number of potentials: 1
• Number of levels: 1
• Number of clamping points per level: 4
• Number of potentials per tier: 1
• Levels cross-connected internally: No
• PE connection: No
• Mounting rail: TS 35
• N-function: No
• PE function: No
• PEN function: No
• Explosion-tested version: Yes
• Open sides: right
• Type of mounting: Snap-on
• Connection type, additional connection: Screw connection
• Blade size: 0.6 x 3.5 mm
• Clampable conductor: Screw connection
• Clamping range, max.: 6 mm²
• Clamping range, min.: 0.05 mm²
• Clamping screw: M 3
• Connection cross-section, stranded, max.: 4 mm²
• Connection cross-section, stranded, min.: 0.5 mm²
• Connection direction: on side
• Gauge to IEC 60947-1: A4
• Number of connections: 4
• Stripping length: 10 mm
• Tightening torque, max.: 0.8 Nm
• Tightening torque, min.: 0.5 Nm
• Type of connection: Screw connection
• Wire connection cross section AWG, max.: AWG 10
• Wire connection cross section AWG, min.: AWG 26
• Wire connection cross section, finely stranded, max.: 4 mm²
• Wire connection cross section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 4 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 4 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 6 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• Certificate No. (CSA): 200039-1057876
• Current size B (CSA): 30 A
• Current size C (CSA): 30 A
• Voltage size B (CSA): 600 V
• Voltage size C (CSA): 600 V
• Wire cross section max. (CSA): 10 AWG
• Wire cross section min. (CSA): 30 AWG
• Standards: IEC 60947-7-1
• Rated cross-section: 4 mm²
• Rated voltage: 800 V
• Rated DC voltage: 800 V
• Nominal current: 32 A
• Current at maximum wires: 32 A
• Volume resistance according to IEC 60947-7-x: 1 mΩ
• Rated impulse withstand voltage: 8 kV
• Power loss in accordance with IEC 60947-7-x: 1.02 W
• Pollution severity: 3
• Certificate No. (cURus): E60693
• Conductor size Factory wiring max. (cURus): 10 AWG
• Conductor size Factory wiring min. (cURus): 30 AWG
• Conductor size Field wiring max. (cURus): 10 AWG
• Conductor size Field wiring min. (cURus): 30 AWG
• Current size B (cURus): 30 A
• Current size C (cURus): 30 A
• Voltage size B (cURus): 600 V
• Voltage size C (cURus): 600 V
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• ETIM 10.0: EC000897
• ECLASS 14.0: 27-25-01-01
• ECLASS 15.0: 27-25-01-01
• Mounting: DIN Rail
• Amps: 32
• Volts AC: 800
