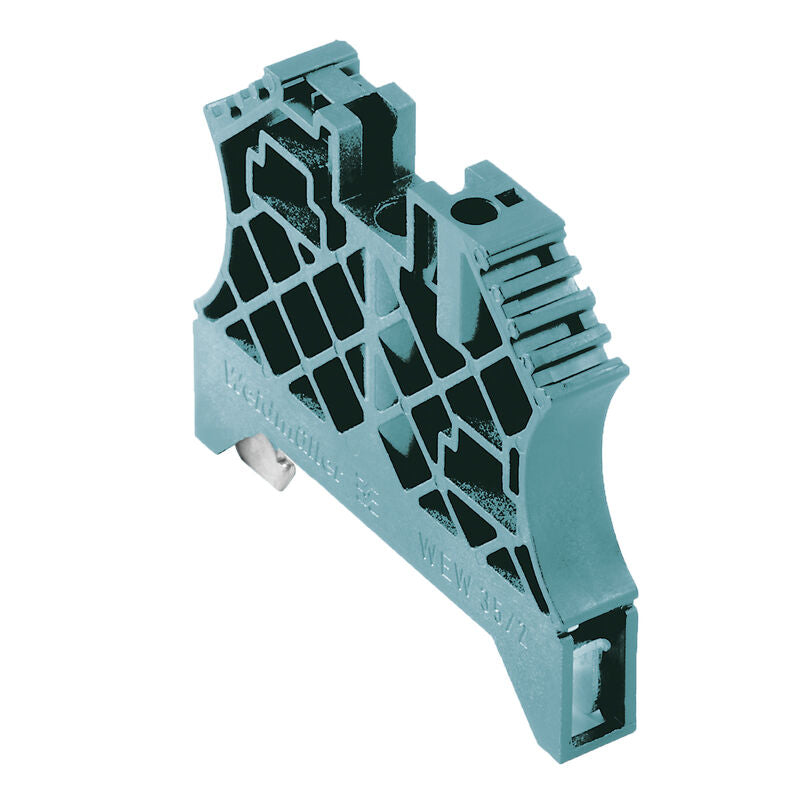

Weidmuller 1859200000 End Bracket W Series

Product Description

The Weidmuller 1859200000 is an end bracket from the W Series. This end bracket is made of Wemid and designed for use with terminal blocks. It provides a reliable solution for various installation needs, ensuring secure and organized connections.

• Made of Wemid material
• Designed for TS-35 mounting rail
• Direct mounting installation

Product Highlights

End bracket for terminal blocks in the W Series, providing secure and organized connections.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1859200000
• Country of Origin: DE

Technical Specifications

• Material: Wemid
• Type: WEW 35/2 GR 7042
• Color: Gray
• Series: W Series
• Vendor SKU: 1859200000
• Minimum Order Qty: 1
• Order Interval: 1
• Manufacturer: Weidmuller
• GTIN (EAN): 4032248411658
• Depth: 46.5 mm
• Depth (inches): 1.831 inch
• Height: 56 mm
• Height (inches): 2.205 inch
• Width: 8 mm
• Width (inches): 0.315 inch
• Net weight: 12.355 g
• Ambient temperature: -5 °C…40 °C
• Continuous operating temp., min.: -50 °C
• Continuous operating temp., max.: 100 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: Wemid
• UL 94 flammability rating: V-2
• Mounting rail: TS 35
• Installation advice: Direct mounting
• Locking: for screw fixing
• Type of mounting: when screwed in
• Tightening torque, max.: 1 Nm
• Tightening torque, min.: 0.5 Nm
• ETIM 8.0: EC001041
• ETIM 9.0: EC001041
• ETIM 10.0: EC001041
• ECLASS 14.0: 27-25-03-02
• ECLASS 15.0: 27-25-03-02
• Operating Temperature: -50 to 100 deg C
• Installation: Direct Mounting Installation
• Mounting: Screw Mounting
• Torque: 0.5 to 1 N-m
• Suitable For Use With: TS-35 Mounting Rail
• Catalog ID: WEI1859200000
• For Use With: Terminal Blocks
• Accessory Type: End Bracket
• Product Range: W Series
• SVHC: No SVHC (23-Jan-2024)
