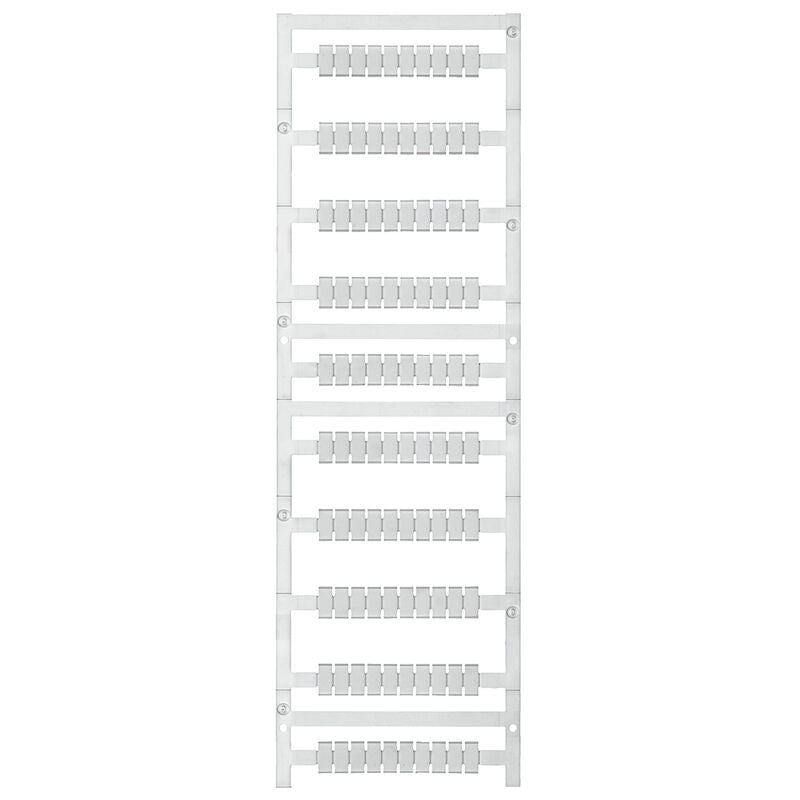

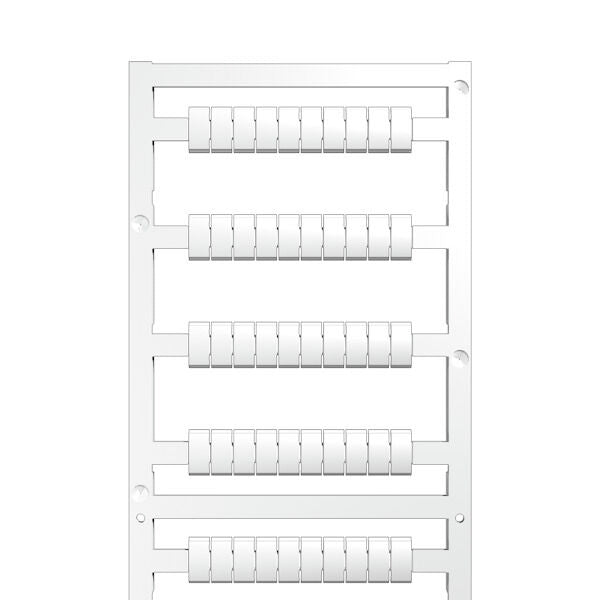

Weidmuller 1816270000 MF-W 9/5 MC NE WS

Product Description

The Weidmuller 1816270000 MF-W 9/5 MC NE WS is a MultiFit terminal marker designed for WAGO and Legrand terminals. Measuring 9 x 5 mm with a 5.00 mm pitch, this marker is made from Polyamide 66 and is suitable for use with the PRINTJET CONNECT printer. It is white in color with neutral printing.

• MultiFit marker system used for other makes of terminals
• Ready-to-use markers with standard printing
• Suitable for different makes of terminals

Product Highlights

The Weidmuller MF-W 9/5 MC NE WS terminal marker ensures clear and durable identification in various terminal applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1816270000
• Country of Origin: India

Technical Specifications

• Version: MultiFit
• Order No.: 1816270000
• Type: MF-W 9/5 MC NE WS
• GTIN (EAN): 4032248306312
• Height: 9 mm
• Height (inches): 0.354 inch
• Width: 5 mm
• Width (inches): 0.197 inch
• Net weight: 0.164 g
• Operating temperature range: -40...100 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Application/manufacturer: WAGO, Legrand
• Basic material: Polyamide 66
• Colour: white
• compatible printer: PRINTJET CONNECT
• Halogen: No
• Material colour according to resistance code: 9
• Printed characters: neutral
• Type of printing: neutral
• UL 94 flammability rating: V-2
• Pitch in mm (P): 5 mm
• ETIM 8.0: EC000761
• ETIM 9.0: EC000761
• ETIM 10.0: EC000761
• ECLASS 14.0: 27-28-11-01
• ECLASS 15.0: 27-28-11-01
• Label Color: White
• Manufacturer: Weidmuller
• Component: Terminal Marker
• Model No: 1816270000
• Type of Product: Terminal Marker
• Temperature Range: -40...100 °C
• Material: Polyamide 66
• Pitch: 5mm
• Weight: 0.164 g
• Printing Type: Neutral
• Printed Character: Neutral
• Country of Origin: India
